GROVE GEAR GR8150504.10 GR-H815-15-H1-10 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 446 lb-in Torque, Cast Iron
Get it by Wednesday, Aug 26
€1,229.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Assembly | H-H1 |
| Bore Code | 10 |
| Center Distance | 1.54" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 1.003 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Speed | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| Material | Cast Iron |
| Max. Input Hp | 1 3/1000 hp , 1.003 hp |
| Max. Ohl (output Shaft) | 860 |
| Max. Thrust Load (output Shaft) | 1144 |
| Mount Style | H |
| Mounting Type | Shaft Mount |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | 1 |
| Output | Hollow |
| Output Dia. | 5/8" |
| Output Hollow Shaft Dia. | 5/8" |
| Output Hp | 0.826 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Direction | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Hollow Shaft |
| Output Speed | 116 RPM |
| Output Style | H1 |
| Output Torque | 446 lbs.-in. |
| Output Type | Hollow Bore |
| Overhung Load Rating | 860 lbs. |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-H-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 116 RPM |
| Torque (lb-in)@1750rpm | 446 |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Model | Output Torque | Output Speed | Output Hp | Output Dia. | Max. Input Hp | Input Dia. | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8150196.00 | 519 | 116.7 RPM | 0.826 hp | 3/4" | 1 3/1000 hp | 5/8" | Right | Blue | €1,040.13 | |
| GR8150188.00 | 432 | 43.75 RPM | 0.361 hp | 3/4" | 14/25 hp | 5/8" | Left | Blue | €866.02 | |
| GR8150193.00 | 271 | 350 RPM | 1.794 hp | 3/4" | 1.939 hp | 5/8" | Right | Blue | €950.09 | |
| GR8153828.00 | - | - | - | - | - | - | Left/Right | - | €1,125.42 | |
| GR8152022.00 | - | - | - | - | - | - | Right | Blue | €1,476.03 | RFQ
|
| GR8155558.00 | 518 lbs.-in. | 87.5 RPM | 0.719 hp | - | - | - | Left | Blue | €541.69 | RFQ
|

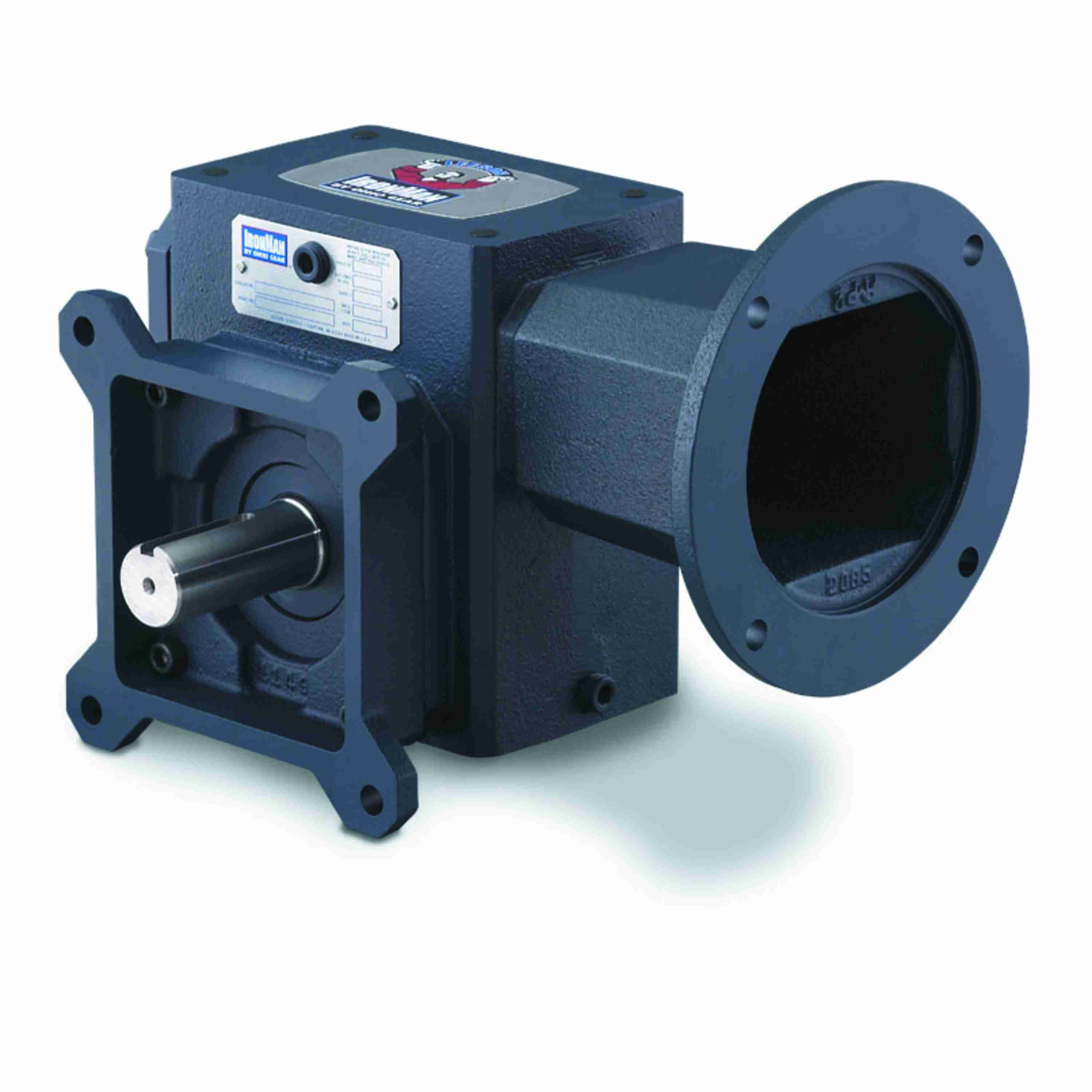

| GR8155592.00 | 402 lbs.-in. | 175 RPM | 1 29/250 hp | 3/4" | 1.279 hp | 5/8" | - | - | €682.98 |
