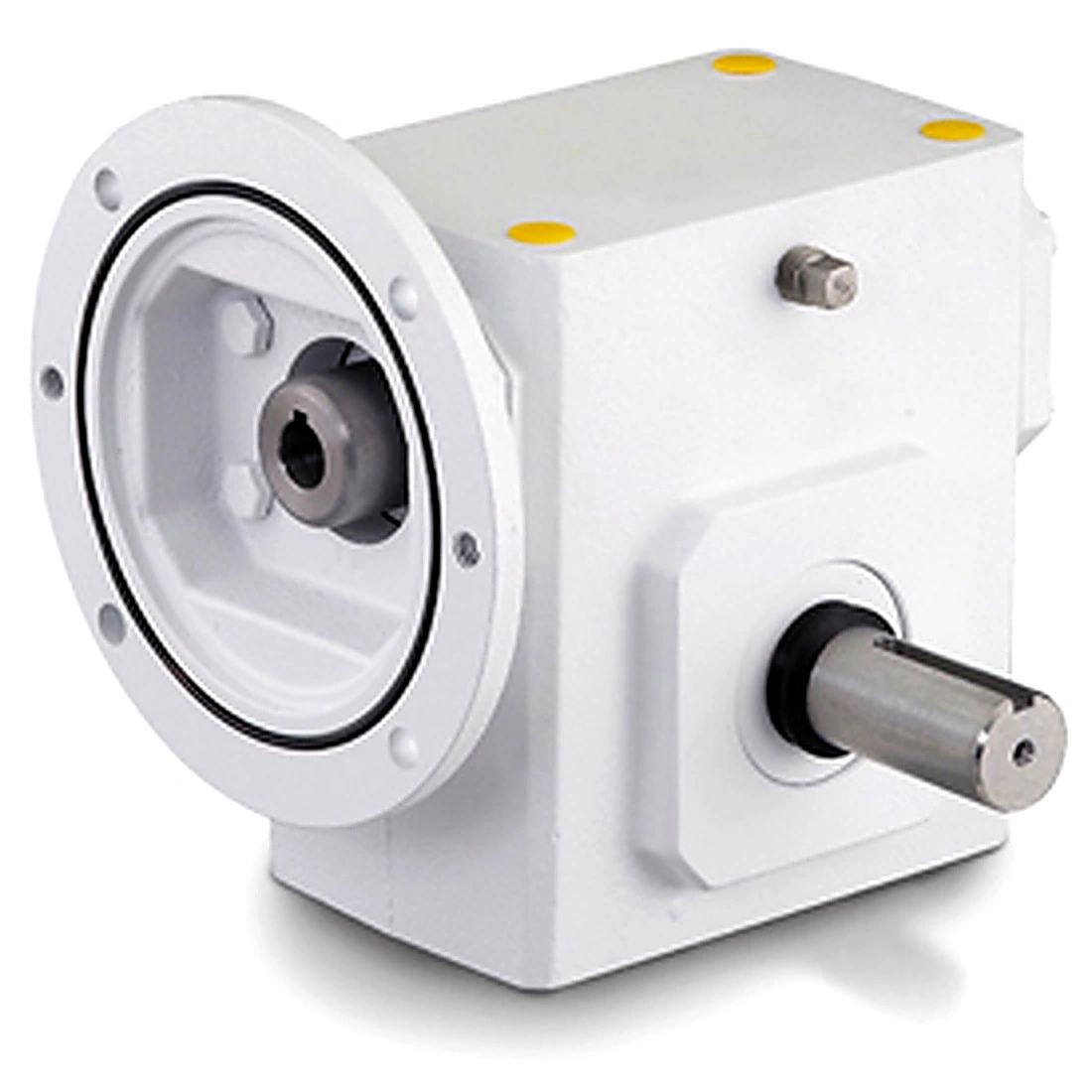

GROVE GEAR GR8153022.00 GR-WBMQ815-60-R-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 462 lb-in Torque, Epoxy Washdown
Get it by Thursday, Aug 27
€1,300.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 3.44 |
| Aj | 5.88 |
| Application | Epoxy Washdown |
| Assembly | WBMQ-R |
| B | 4.88 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 5.38" |
| Center Distance | 1.54" |
| D | 1.91 |
| F | 2.75 |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.38 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| I | 3.14" |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 0.391 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 4.19" |
| K | 2.09" |
| Key Way Size | 3/16" x 3/32" |
| Length | 10.69 |
| Lq | 3.99" |
| Material | Cast Iron |
| Mounting Type | Base |
| N | 4.31 |
| No. Of Gear Reductions | 1 |
| O | 2.11" |
| Output | Right |
| Output Dia. | 3/4" |
| Output Hp | 0.214 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 3/4" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 29 RPM |
| Output Style | R |
| Output Torque | 462 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 860 lbs. |
| Paint/coating | White Epoxy |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 3.62" |
| Series | GR Series |
| Series Style | GR-WBMQ-R |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 29 RPM |
| Tap Depth | 0.63" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 462 |
| Width | 9.06 |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Output Torque | Output Speed | Output Hp | Output Dia. | Max. Input Hp | Input Dia. | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8150196.00 | 519 | 116.7 RPM | 0.826 hp | 3/4" | 1 3/1000 hp | 5/8" | Right | Blue | €1,040.13 | |
| GR8150188.00 | 432 | 43.75 RPM | 0.361 hp | 3/4" | 14/25 hp | 5/8" | Left | Blue | €866.02 | |
| GR8150193.00 | 271 | 350 RPM | 1.794 hp | 3/4" | 1.939 hp | 5/8" | Right | Blue | €950.09 | |
| GR8150504.10 | 446 lbs.-in. | 116 RPM | 0.826 hp | 5/8" | 1.003 hp | 5/8" | Hollow | Blue | €1,229.64 | |
| GR8153828.00 | - | - | - | - | - | - | Left/Right | - | €1,125.42 | |
| GR8152022.00 | - | - | - | - | - | - | Right | Blue | €1,476.03 | RFQ
|
| GR8155558.00 | 518 lbs.-in. | 87.5 RPM | 0.719 hp | - | - | - | Left | Blue | €541.69 | RFQ
|
