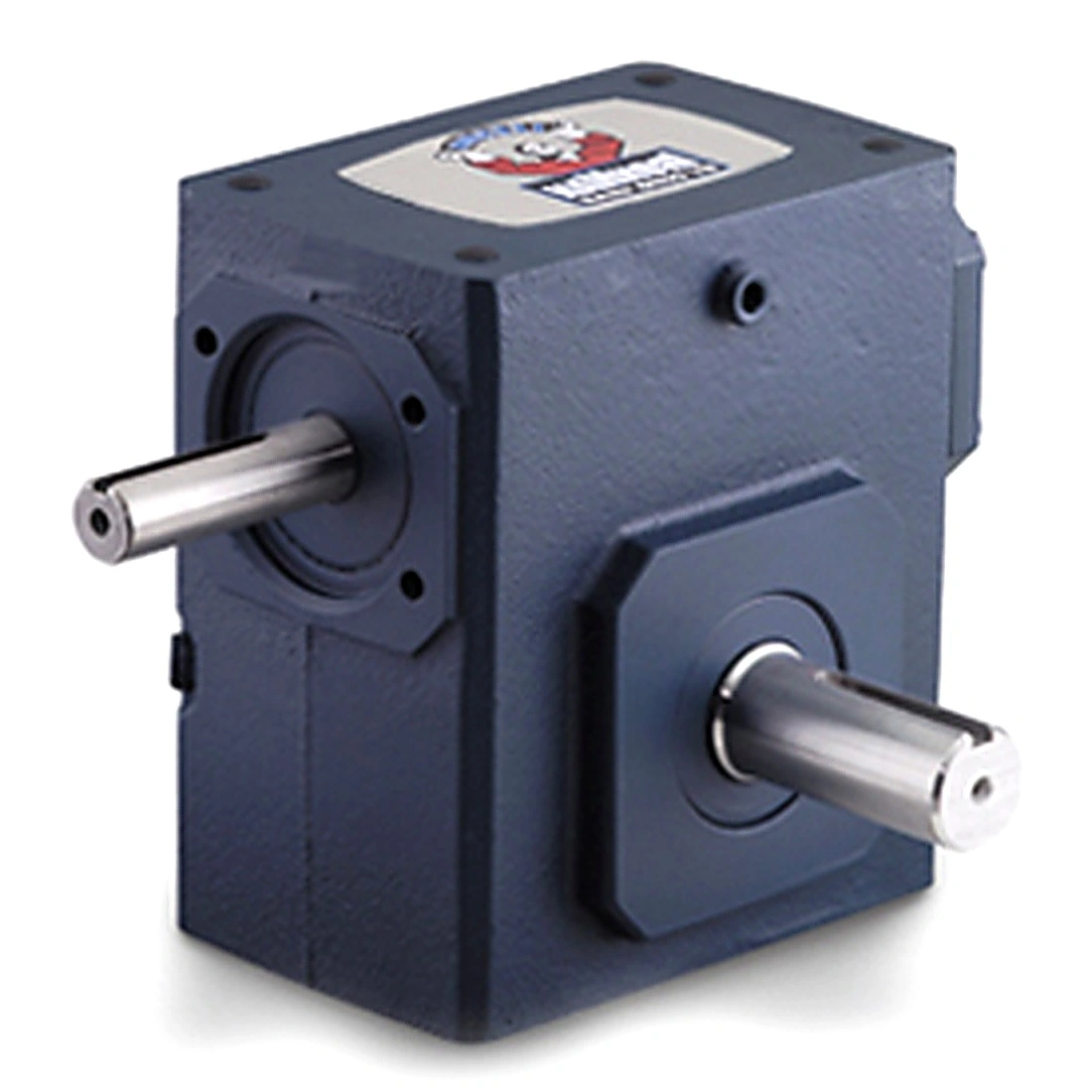

GROVE GEAR GR8150023.00 Reducer, Solid Input Shaft Solid Output Shaft Right Worm | AY7RXH

GROVE GEAR GR8150023.00 GR-B815-80-R Right Angle Gear Reducer, 80 to 1 Ratio, 0.75 Inch Right Output Shaft, Solid Shaft Input, 21 RPM Output

Item: AY7RXHModel: GR8150023.00Cross Ref: GR-B815-80-R
Check Availability
In Stock

Get it by Tuesday, Aug 18

€484.62 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 3.44
Application General Purpose
Assembly B-R
B 4.88
C 5.38"
Center Distance 1.54"
D 1.91
F 2.75
G 1.38
Gear Type Worm
H-tap Size 5/16"-18
H-tap Type UNC
Housing Material Cast Iron
I 3.14"
Input Dia. 5/8"
Input Hp @ 1750 Rpm 51/250 hp
Input Keyway 3/16" x 1.38"
Input Keyway Size 3/16" x 1.38"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 4.19"
K 2.09"
L 4.35"
M 1.76
Max. Input Hp @ 1750 1/5 hp
Mount Footprint 2.75 x 4.19
Mount Style B
N 4.31
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
O 2.11"
Output Config H1 Right
Output Dia. 3/4"
Output Key 3/16 x 1.5
Output Key Size 3/16" x 1.5"
Output Shaft Solid Shaft
Output Shaft Assembly Code R
Output Shaft Dia. 0.75
Output Shaft Direction Right
Output Shaft Thrust Rating 1144
Output Speed 21 , 21 RPM
Output Speed @ 1750 Rpm Input 21
Output Torque 269 lbs.-in.
Output Torque Rating (in-lb) 269 lbs.-in.
Overhung Load Rating 860 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 801
Reducer Worm - Right Angle
Reduction Ratio 80
Series GR , GR Series
Series Code Gr
Series Size 815
Service Factor 1
Shaft Center Distance 1.54
Shaft Center Height 1.91
Shaft Seal Material Viton
T 0.75
Tap Depth 0.63"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 269 lbs.-in.
U 5/8"

Shipping Info:

Ship weight (kg) 8.1
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)15.24

Product Variants

ProductModelOutput TorqueOutput SpeedOutput HpOutput Dia.Max. Input HpInput Dia.OutputPaint/coatingPrice
GROVE GEAR GR8150196.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron | AX4CFX GR8150196.00519116.7 RPM0.826 hp3/4"1 3/1000 hp5/8"RightBlue€1,040.13
GROVE GEAR GR8150188.00 Worm Reducer, 40:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron | AX4CWT GR8150188.0043243.75 RPM0.361 hp3/4"14/25 hp5/8"LeftBlue€866.02
GROVE GEAR GR8150193.00 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron | AX6EBW GR8150193.00271350 RPM1.794 hp3/4"1.939 hp5/8"RightBlue€950.09
GROVE GEAR GR8150504.10 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6EPU GR8150504.10446 lbs.-in.116 RPM0.826 hp5/8"1.003 hp5/8"HollowBlue€1,229.64
GROVE GEAR GR8153828.00 Quill Input Worm Gear Reducer | AX7DUV GR8153828.00------Left/Right-€1,125.42
GROVE GEAR GR8152022.00 Reducer, Solid Input Shaft Solid Output Shaft Right Worm | AX7HBA GR8152022.00------RightBlue€1,476.03
