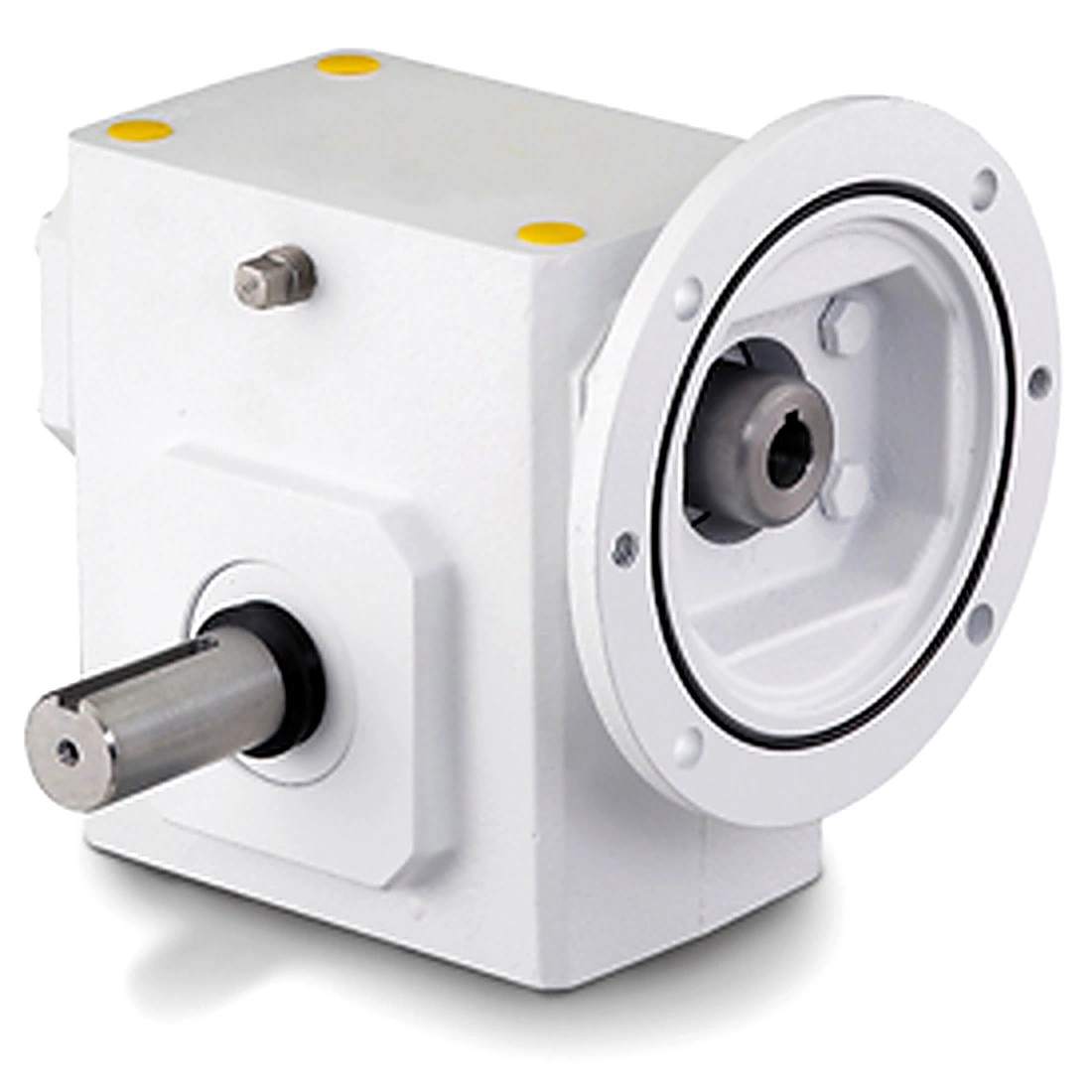

GROVE GEAR GR8133002.00 GR-WBMQ813-7.5-L-56 Right Angle Gear Reducer, 7.5 to 1 Reduction Ratio, 233 RPM Output, 252 lb-in Torque, Epoxy Washdown
Get it by Tuesday, Sep 1
€1,201.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 2.82 |
| Aj | 5.88 |
| Application | Epoxy Washdown |
| Assembly | WBMQ-L |
| B | 3.8 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 4.66" |
| Center Distance | 1.33" |
| D | 1.72 |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Frame | 56C |
| Frame Size | 56C |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| I | 2.61" |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 1 1/40 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 3 1/4" |
| K | 1.63" |
| Key Way Size | 3/16" x 3/32" |
| Lq | 3.46" |
| Material | Cast Iron |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| O | 2 4/25" |
| Output | Left |
| Output Dia. | 5/8" |
| Output Hp | 0.933 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia | 0.625 |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 233 RPM |
| Output Style | L |
| Output Torque | 252 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 700 lbs. |
| Paint/coating | White Epoxy |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 3.09" |
| Series | GR Series |
| Series Style | GR-WBMQ-L |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 233 RPM |
| T | 0.625 |
| Tap Depth | 1/2" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 252 |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Output Speed | Output Torque | Input Dia. | Output Hp | Max. Input Hp | No. Of Gear Reductions | Output Shaft Direction | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8130075.00 | 175 RPM | 263 | 5/8" | 0.729 hp | 0.823 hp | Single | Left | - | €822.82 | |
| GR8130077.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Left | - | €745.38 | |
| GR8130005.00 | 87 RPM | 320 lbs.-in. | 1/2" | 89/200 hp | 0.551 hp | 1 | Left | Solid Shaft | - | RFQ
|
| GR8135568.00 | 116.7 RPM | 292 lbs.-in. | - | 0.541 hp | - | - | - | - | €1,155.72 | |
| GR8130089.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Right | - | €822.82 | |
| GR8130079.00 | 58.3 RPM | 314 | 5/8" | 0.29 hp | 79/200 hp | Single | Left | - | €822.82 | |
| GR8130043.00 | 58 RPM | 314 lbs.-in. | 1/2" | 29/100 hp | 79/200 hp | 1 | Left | Solid Shaft | €1,002.19 |
