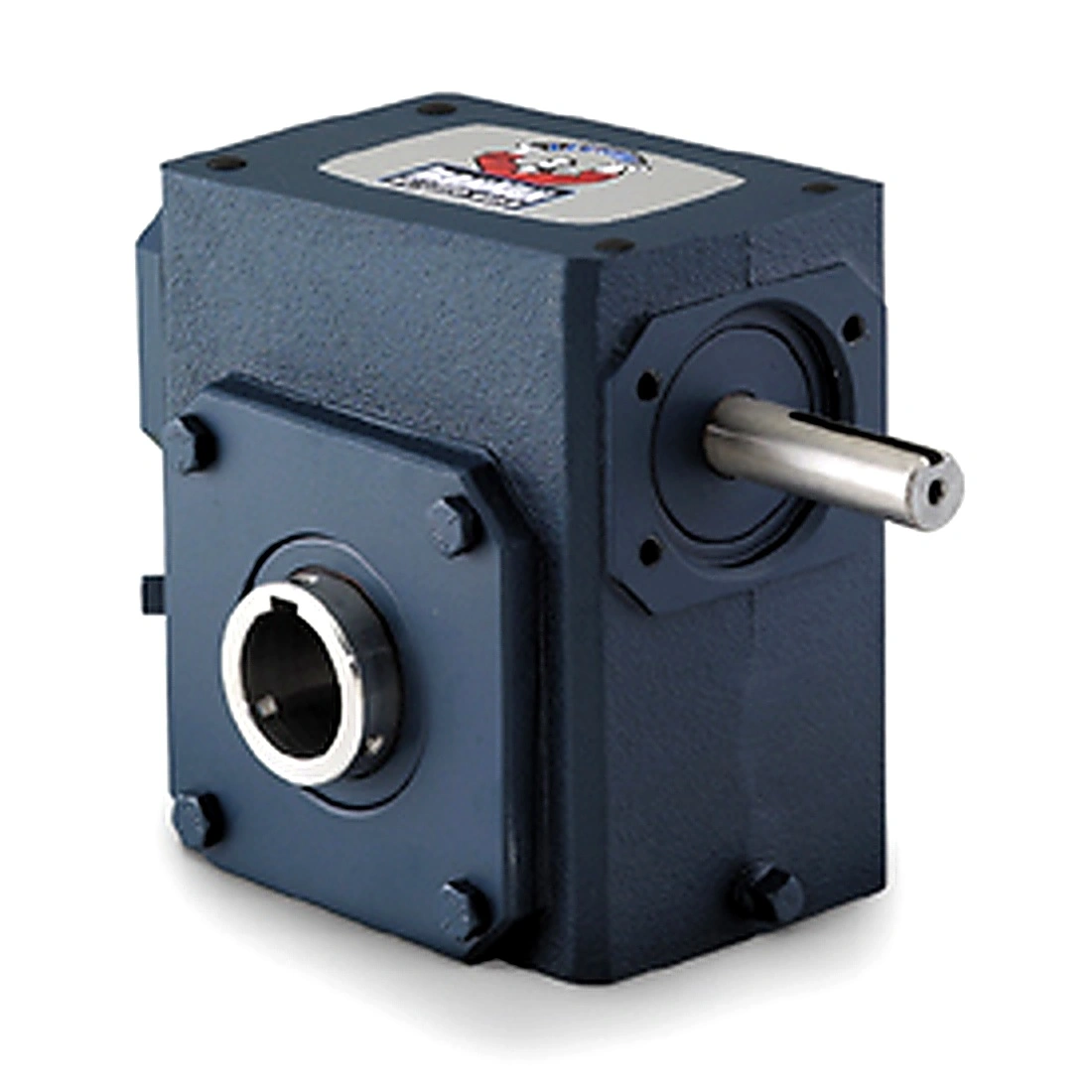

GROVE GEAR GR8130504.10 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AY6ANR

GROVE GEAR GR8130504.10 GR-H813-15-H1-10 Right Angle Gear Reducer, 15 to 1 Ratio, 5/8 Inch Hollow Bore, Solid Shaft Input, Cast Iron

Item: AY6ANRModel: GR8130504.10Cross Ref: GR-H813-15-H1-10
Check Availability
In Stock

Get it by Tuesday, Aug 18

€649.30 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
Ad 3.9
Ae1 0.53
Ae2 0.32
Ag 4.75
Application General Purpose
Assembly H-H1
B 3.8
Bore Code 10
C 4.66"
Center Distance 1.33"
D 1.72
F 2
G 1
Gear Type Worm
Hollow Bore Dimensions 5/8"
Housing Cast Iron
Housing Material Cast Iron
I 2.61"
Input Dia. 1/2"
Input Hp @ 1750 Rpm 0.642 hp
Input Keyway 1/8" x 1"
Input Keyway Size 1/8" x 1"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 3 1/4"
L 3.82"
M 1.76
Max. Input Hp @ 1750 1/2 hp
Mount Footprint 2 x 3.25
Mount Style H
Mounting Style Shaft Mount
Mounting Type Shaft Mount
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
Output Config H1 Hollow Bore
Output Dia. 5/8"
Output Key 3/16 x 1.5
Output Key Size 3/16" x 1.5"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 1144
Output Speed 116 , 116 RPM
Output Speed @ 1750 Rpm Input 116
Output Torque 292 lbs.-in.
Output Torque Rating (in-lb) 292 lbs.-in.
Overhung Load Rating 700 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Worm Speed Reducer
Ratio 151
Reducer Worm - Right Angle
Reduction Ratio 15:1
Series GR , GR Series
Series Code Gr
Series Size 813
Service Factor 1
Shaft Center Distance 1.33
Shaft Center Height 1.72
Shaft Seal Material Viton
T 0.625
Torque (lb-in)@1750rpm 292 lbs.-in.
U 1/2"
V 1"

Shipping Info:

Ship weight (kg) 8.1
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)15.24

Product Variants

ProductModelOutput SpeedOutput TorqueInput Dia.Output HpMax. Input HpNo. Of Gear ReductionsOutput Shaft DirectionOutput ShaftPrice
GROVE GEAR GR8130075.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ANL GR8130075.00175 RPM2635/8"0.729 hp0.823 hpSingleLeft-€822.82
GROVE GEAR GR8130077.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Cast Iron | AX4BBW GR8130077.0087.5 RPM3205/8"0.445 hp0.551 hpSingleLeft-€745.38
GROVE GEAR GR8130005.00 Worm Reducer, 20:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4MFU GR8130005.0087 RPM320 lbs.-in.1/2"89/200 hp0.551 hp1LeftSolid Shaft-
RFQ
GROVE GEAR GR8135568.00 Quill Input Worm Gear Reducer | AX4NJH GR8135568.00116.7 RPM292 lbs.-in.-0.541 hp----€1,155.72
GROVE GEAR GR8130089.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4NPC GR8130089.0087.5 RPM3205/8"0.445 hp0.551 hpSingleRight-€822.82
GROVE GEAR GR8130079.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ULL GR8130079.0058.3 RPM3145/8"0.29 hp79/200 hpSingleLeft-€822.82
GROVE GEAR GR8130043.00 Worm Reducer, 30:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6DPB GR8130043.0058 RPM314 lbs.-in.1/2"29/100 hp79/200 hp1LeftSolid Shaft€1,002.19
