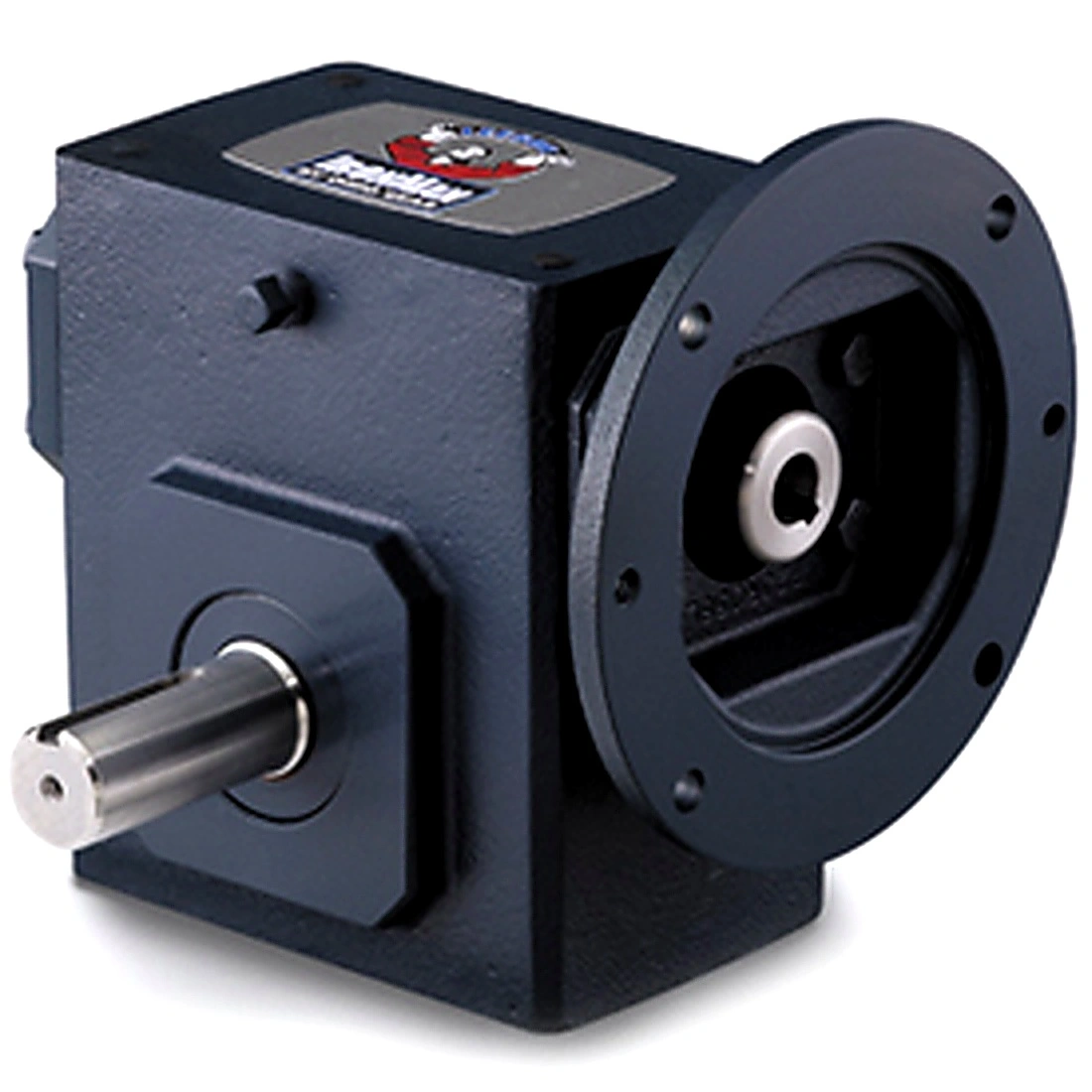

GROVE GEAR GR8130084.00 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX3WHJ GR-BMQ813-100-L-56

GROVE GEAR GR8130084.00 GR-BMQ813-100-L-56 Right Angle Gear Reducer, 100 to 1 Reduction Ratio, 17 RPM Output, 143 lb-in Torque, H1 Right Output

Item: AX3WHJModel: GR8130084.00Cross Ref: GR-BMQ813-100-L-56
Check Availability
In Stock
Reduction Ratio

Get it by Friday, Aug 28

€822.82 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Application General Purpose
Assembly BMQ-L
Center Distance 1.33"
Family Name Cast Iron Housing Material Worm Gear Reducers
Frame 56C
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
Input Bore (c Face) 5/8"
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Hp @ 1750 Rpm 21/250 hp
Input Keyway Size (c Face) 3/16" x 3/32"
Input Quill Dia. 5/8"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
Key Way Size 3/16" x 3/32"
Material Cast Iron
Max. Ohl (output Shaft) 700
Max. Thrust Load (output Shaft) 1144
Mounting Type Base
No. Of Gear Reductions 1
Output Left
Output Dia. 5/8"
Output Hp 1/25 hp
Output Key Size 3/16" x 1.5"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia 0.625
Output Shaft Dia. 5/8"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 1144
Output Shaft Type Left Handed Shaft
Output Speed 17 RPM
Output Style L
Output Torque 143 lbs.-in.
Output Type Solid Shaft
Overhung Load 700 lbs.
Paint/coating Blue
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Type Single
Series GR Series
Series Style GR-BMQ-L
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1
Shaft Seal Material Viton
Speed 17 RPM
Tap Depth 1/2"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 143

Shipping Info:

Ship weight (kg) 7.65
Ship height (cm)26.67
Ship length (cm)27.15
Ship width (cm)23.01

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedOutput TorqueMax. Input HpOutput HpInput Dia.Input Bore SizeSpeedInput StylePrice
GROVE GEAR GR8130073.00 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6GGJ GR-BMQ813-5-L-56 GR8130073.00350 RPM2091.248 hp1.158 hp5/8"5/8"350 RPMC Face Quill€822.82
GROVE GEAR GR8130217.00 Worm Reducer, 5:1 Ratio, 0.875 Inch I.D, 0.625 Inch O.D, Cast Iron | AX7VMZ GR-BMQ813-5-L-140 GR8130217.00350 RPM-1 31/125 hp--7/8"350 RPMC-Face Quill€1,002.19
GROVE GEAR GR8130076.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX8ANG GR-BMQ813-15-L-56 GR8130076.00116.7 RPM--0.541 hp-5/8"116 RPMC-Face Quill€745.38
GROVE GEAR GR8130078.00 Worm Reducer, 25:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX8LVK GR-BMQ813-25-L-56 GR8130078.0070 RPM423---5/8"70 RPMC-Face Quill€988.29
GROVE GEAR GR8130080.00 Worm Reducer, 40:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX9MRN GR-BMQ813-40-L-56 GR8130080.0043.75 RPM4320.329 hp0.223 hp5/8"5/8"43 RPMC Face Quill€1,002.19
GROVE GEAR GR8130186.00 Worm Reducer, 25:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY2WLP GR-BMQ813-25-L-48 GR8130186.0070 RPM309 lbs.-in.89/200 hp43/125 hp1/2"1/2"70 RPMC Face Quill€1,002.19
GROVE GEAR GR8130192.00 Worm Reducer, 100:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY3CUA GR-BMQ813-100-L-48 GR8130192.0017 RPM143 lbs.-in.21/250 hp1/25 hp1/2"1/2"17 RPMC Face Quill€1,002.19
