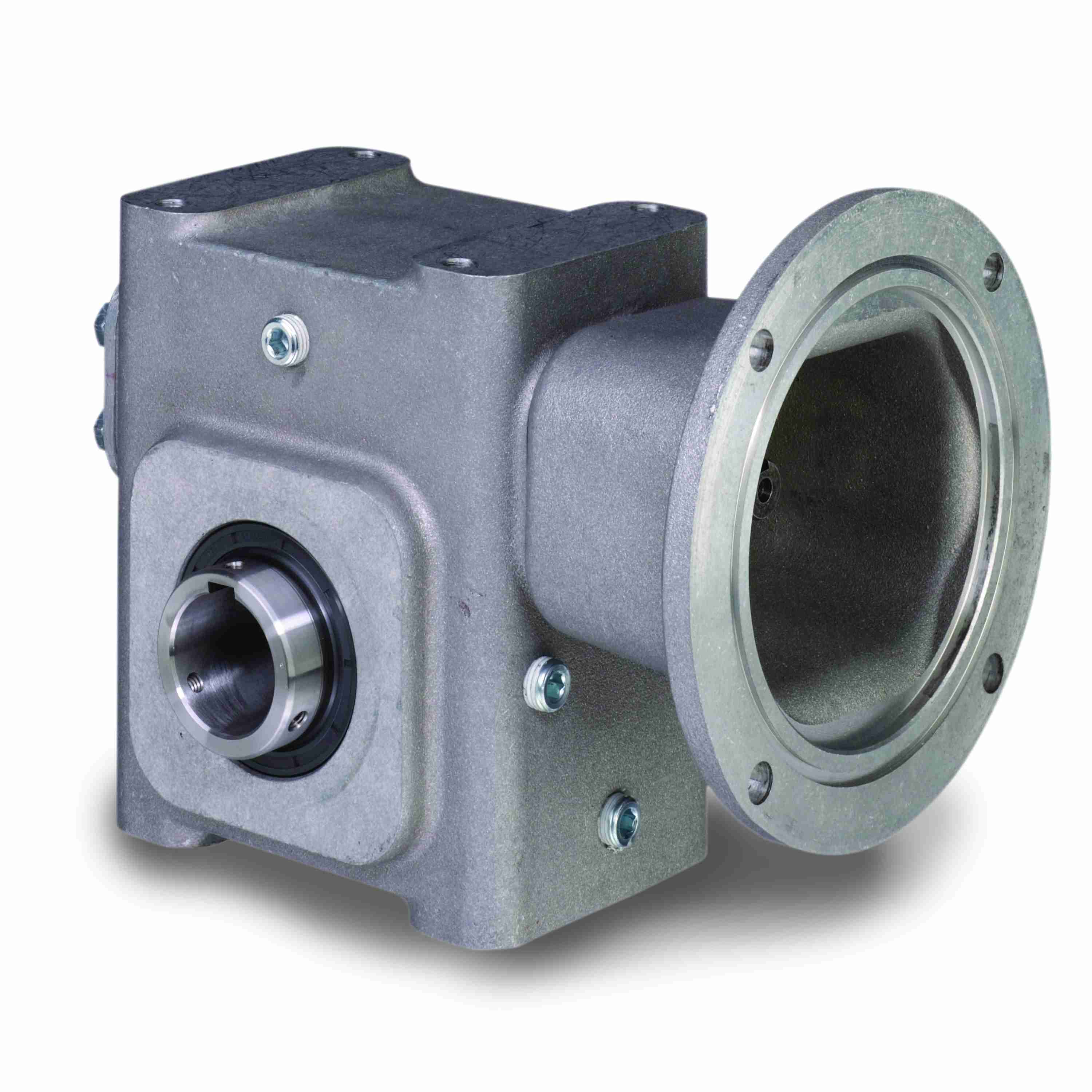

GROVE GEAR EL8420544.32 EL-HM842-40-H1-180-32 Worm Reducer, 40:1 Ratio, 1.125 Inch I.D, 2 Inch O.D, Aluminum
Get it by Thursday, Aug 27
€3,248.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 14.69 |
| Ac | 1.19 |
| Ae1 | 0.63 |
| Af | 0.69 |
| Ag | 8.5 |
| Aj | 7.25 |
| Ak | 8.5 |
| Assembly | HM-H1 |
| B | 9.63 |
| Be1 | 1/2" |
| Bf | 0.53 |
| Bore Code | 32 |
| C | 11.69" |
| Center Distance | 4 1/4" |
| F | 3.75 |
| Frame | 180TC |
| G | 1.88 |
| Gear Type | Worm |
| Housing Material | Aluminum |
| I | 6.15" |
| Input Bore (c Face) | 1 1/8" |
| Input Dia. | 1 1/8" |
| Input Hp | 5.262 hp |
| Input Keyway Size | 1/4" x 2.5" |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| Lm1 | 12.53 |
| Material | Aluminum |
| Max. Input Hp | 5.262 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Dia. | 2" |
| Output Hp | 4.274 hp |
| Output Key Size | 1/2" x 3.38" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Speed | 43 RPM |
| Output Style | H1 |
| Output Torque | 6156 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-HM-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| U | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 46.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Output Hp | Output Speed | Output Torque | Input Dia. | Max. Input Hp | Output Dia. | Output | Input Flange | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8420181.00 | 17 1/4 hp | 350 RPM | 3209 lbs.-in. | 1 5/8" | 18 2/25 hp | 1 3/4" | Left | - | €5,106.13 | |
| EL8425063.00 | 2.772 hp | 29.2 RPM | 5989 lbs.-in. | - | - | - | Right | - | €2,137.81 | RFQ
|
| EL8420599.31 | - | - | - | - | - | - | Hollow | 180TC | €2,576.19 | RFQ
|
| EL8420523.30 | - | - | - | - | - | - | Hollow | 56C | €2,576.19 | RFQ
|
| EL8420516.27 | - | - | - | - | - | - | Hollow | 56C | €2,576.19 | RFQ
|
| EL8420517.24 | - | - | - | - | - | - | Hollow | 56C | €2,576.19 | RFQ
|
| EL8420543.26 | - | - | - | - | - | - | Hollow | 180TC | €2,576.19 | RFQ
|
