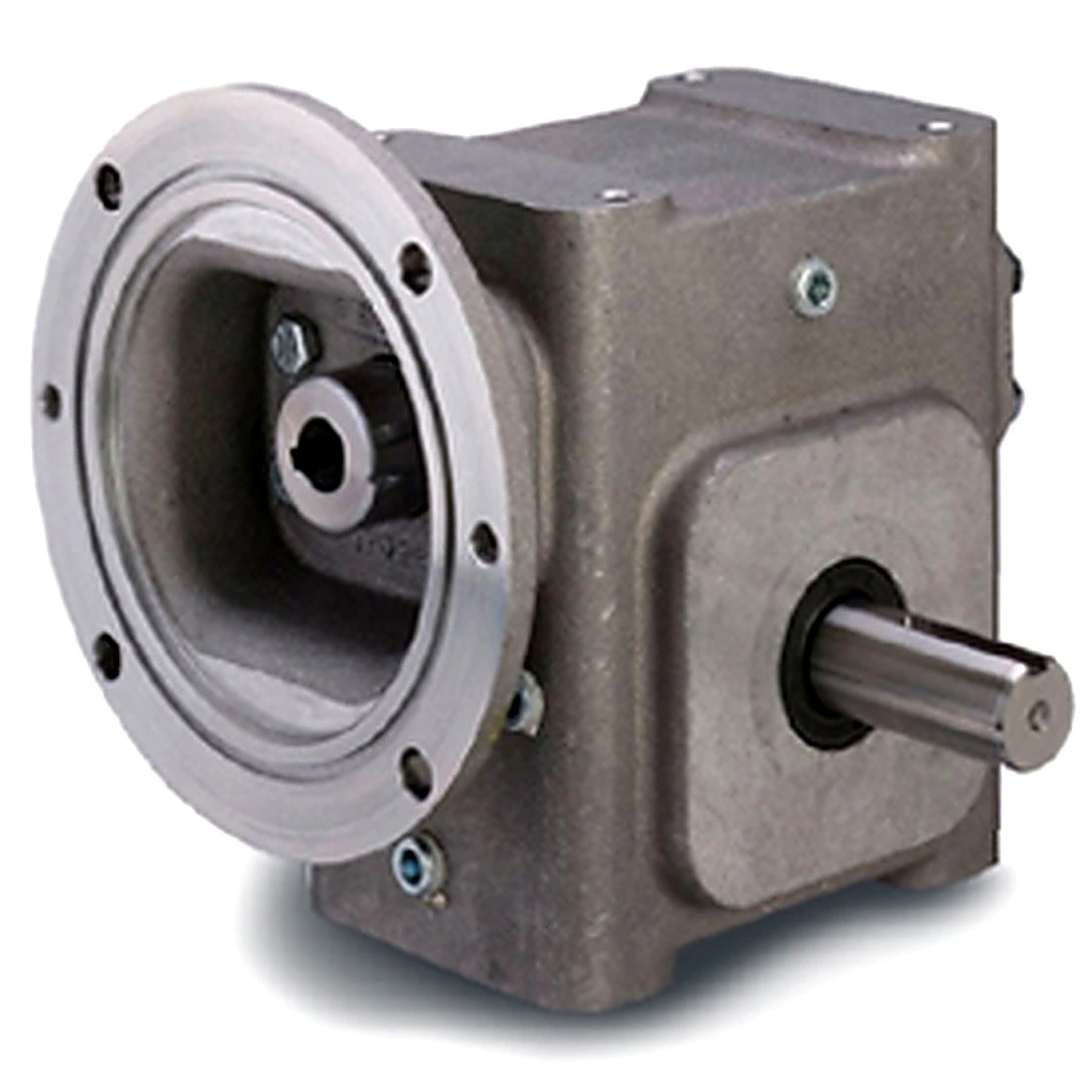

GROVE GEAR EL8320159.00 EL-BMQ832-50-R-140 Right Angle Gear Reducer, 50 to 1 Reduction Ratio, 23 RPM Output, 3315 lb-in Torque, Aluminum
Get it by Monday, Aug 31
€3,340.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Aluminum |
| Assembly | BMQ-R |
| Center Distance | 3 1/4" |
| Family Name | Aluminum Housing Material Worm Gear Reducers |
| Frame | 140TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2.462 hp |
| Input Hp @ 1750 Rpm | 2.462 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Material | Aluminum |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 2574 |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Right |
| Output Dia. | 1 5/8" |
| Output Hp | 1.841 hp |
| Output Key Size | 3/8" x 2 1/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia | 1.625 |
| Output Shaft Dia. | 1 5/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2574 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 35 RPM |
| Output Style | R |
| Output Torque | 3315 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 2170 lbs. |
| Paint/coating | Aluminum |
| Product Datasheet | grove-gear-el8420339-00.pdf |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BMQ-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 35 RPM |
| Tap Depth | 1" |
| Tap Size | 1/2"-13 |
| Torque (lb-in)@1750rpm | 3315 |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Documentation:
Product Variants
| Model | Input Dia. | Output Hp | Output Speed | Output Torque | Max. Input Hp | Input Bore Size | Input Keyway Size (c Face) | Input Hp @ 1750 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8320311.00 | 1 3/8" | 0.695 hp | 21 RPM | 2000 lbs.-in. | 1 3/100 hp | 1 3/8" | 5/16" x 5/32" | 1 3/100 hp | €3,340.55 | |
| EL8320182.00 | 1 1/8" | 2.293 hp | 43 RPM | 3303 lbs.-in. | 2.926 hp | 1 1/8" | 1/4" x 1/8" | 2.926 hp | €3,340.55 | |
| EL8320283.00 | 1 1/8" | 0.695 hp | 21 RPM | 2000 lbs.-in. | 1 3/100 hp | 1 1/8" | 1/4" x 1/8" | 1 3/100 hp | €3,340.55 | |
| EL8320309.00 | 1 3/8" | 1.841 hp | 35 RPM | 3315 lbs.-in. | 2.462 hp | 1 3/8" | 5/16" x 5/32" | 2.462 hp | €3,340.55 | |
| EL8320271.00 | 7/8" | 0.695 hp | 21 RPM | 2000 lbs.-in. | 1 3/100 hp | 7/8" | 3/16" x 3/32" | 1 3/100 hp | €3,340.55 | |
| EL8320272.00 | 7/8" | 87/200 hp | 17 RPM | 1567 lbs.-in. | 0.691 hp | 7/8" | 3/16" x 3/32" | 0.691 hp | €3,340.55 | |
| EL8320308.00 | 1 3/8" | 2.293 hp | 43 RPM | 3303 lbs.-in. | 2.926 hp | 1 3/8" | 5/16" x 5/32" | 2.926 hp | €3,340.55 |
