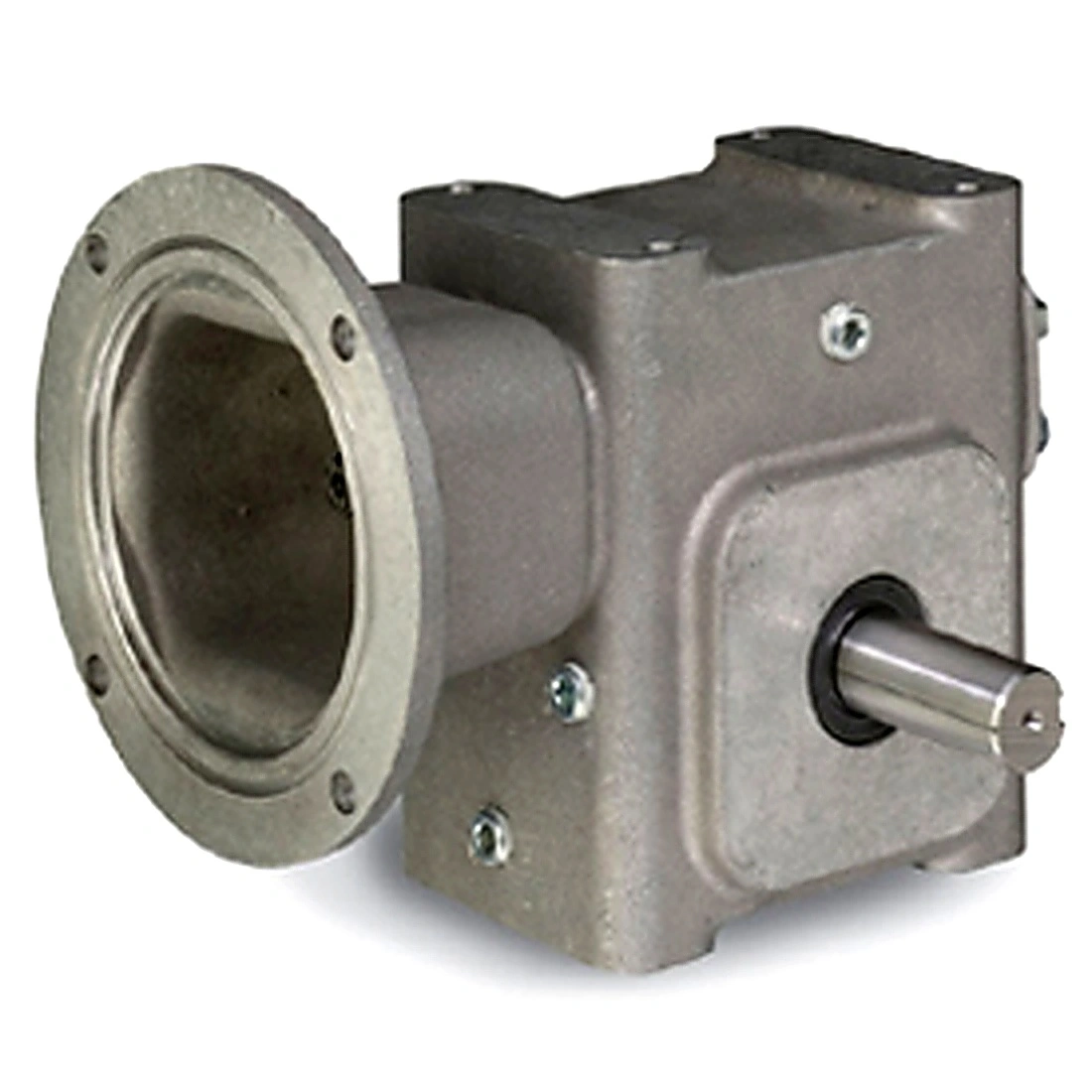

GROVE GEAR EL8320092.00 Worm Reducer, 25:1 Ratio, 0.875 Inch I.D, 1.625 Inch O.D, Aluminum | AY9DCZ

GROVE GEAR EL8320092.00 EL-BM832-25-D-180 Right Angle Gear Reducer, 25 to 1 Reduction Ratio, 70 RPM Output, 3360 lb-in Torque, Aluminum

Item: AY9DCZModel: EL8320092.00Cross Ref: EL-BM832-25-D-180
Check Availability
In Stock
Ratio

Get it by Friday, Aug 28

€3,482.88 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.25
Aj 7.25
Ak 8.5
Application Aluminum
Assembly BM-D
B 8.11
Be1 1/2"
Bf 0.53
C 10 1/2"
Center Distance 3 1/4"
F 4.13
Family Name Aluminum Housing Material Worm Gear Reducers
Frame 180TC
G 2.06
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Aluminum
I 5"
Input Bore (c Face) 1 1/8"
Input Bore Size 1 1/8"
Input Dia. 7/8"
Input Hp 4.373 hp
Input Hp @ 1750 Rpm 4.373 hp
Input Keyway Size 3/16" x 1/2"
Input Keyway Size (c Face) 1/4" x 1/8"
Input Speed 1750 RPM
Input Style Flexible Coupling Input
Input Type C-Face Coupled
J 6.63"
K 3.31"
L1 5 14/25"
Lm1 8.5
Material Aluminum
Max. Ohl (output Shaft) 2170
Max. Thrust Load (output Shaft) 2574
Mounting Type Base
N 6.62
No. Of Gear Reductions 1
O 3 3/5"
Output Dia. 1 5/8"
Output Hp 3.732 hp
Output Key Size 3/8" x 2 1/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code D
Output Shaft Dia 1.625
Output Shaft Dia. 1 5/8"
Output Shaft Direction Double
Output Shaft Orientation LR
Output Shaft Thrust Rating 2574
Output Shaft Type Double Shaft
Output Speed 70 RPM
Output Style D
Output Torque 3360 lbs.-in.
Output Type Solid Shaft
Overhung Load 2275 lbs.
Overhung Load Rating 2170 lbs.
Paint/coating Aluminum
Product Datasheet grove-gear-el8420339-00.pdf
Product Line EL Series - Aluminum Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Series EL Series
Series Style EL-BM-D
Service Factor 1
Shaft Seal Material Viton
Speed 70 RPM
T 1.625
Tap Depth 1"
Tap Size 1/2"-13
Torque (lb-in)@1750rpm 3360
U 7/8"

Shipping Info:

Ship weight (kg) 22.5
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Documentation:

Datasheet

Product Variants

ProductModelOutput HpOutput SpeedOutput TorqueOutput Dia.Input Dia.Max. Input HpInput SpeedNo. Of Gear ReductionsPrice
GROVE GEAR EL8320543.24 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.5 Inch O.D, Aluminum | AX6VHH EL8320543.244 67/125 hp87 RPM3267 lbs.-in.1 1/2"7/8"5 9/50 hp1750 RPM1€2,512.30
GROVE GEAR EL8320241.00 Worm Reducer, 5:1 Ratio, 0.875 Inch I.D, 1.625 Inch O.D, Aluminum | AX6XKC EL8320241.0011 29/100 hp350 RPM2033 lbs.-in.1 5/8"7/8"11 23/25 hp1750 RPM1€3,482.88
GROVE GEAR EL8320518.23 Worm Reducer, 15:1 Ratio, 0.875 Inch I.D, 1.438 Inch O.D, Aluminum | AX6ZUB EL8320518.235.516 hp116 RPM2980 lbs.-in.1.438"7/8"6.127 hp1750 RPM1€4,204.29
GROVE GEAR EL8320583.23 Worm Reducer, 80:1 Ratio, 1.375 Inch I.D, 1.438 Inch O.D, Aluminum | AX6ZUC EL8320583.230.695 hp21.9 RPM-1.438"1 3/8"1 3/100 hp1750 RPM1€2,512.30
GROVE GEAR EL8320580.27 Worm Reducer, 40:1 Ratio, 1.375 Inch I.D, 1.688 Inch O.D, Aluminum | AX7AMK EL8320580.272.293 hp43 RPM3303 lbs.-in.1.688"1 3/8"2.926 hp1750 RPM1€2,512.30
GROVE GEAR EL8320602.23 Worm Reducer, 25:1 Ratio, 1.375 Inch I.D, 1.438 Inch O.D, Aluminum | AX7AML EL8320602.233.732 hp-3360 lbs.-in.-1 3/8"4 373/1000 hp-1€4,262.95
GROVE GEAR EL8320557.28 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AX7ENF EL8320557.28--------€1,694.91
