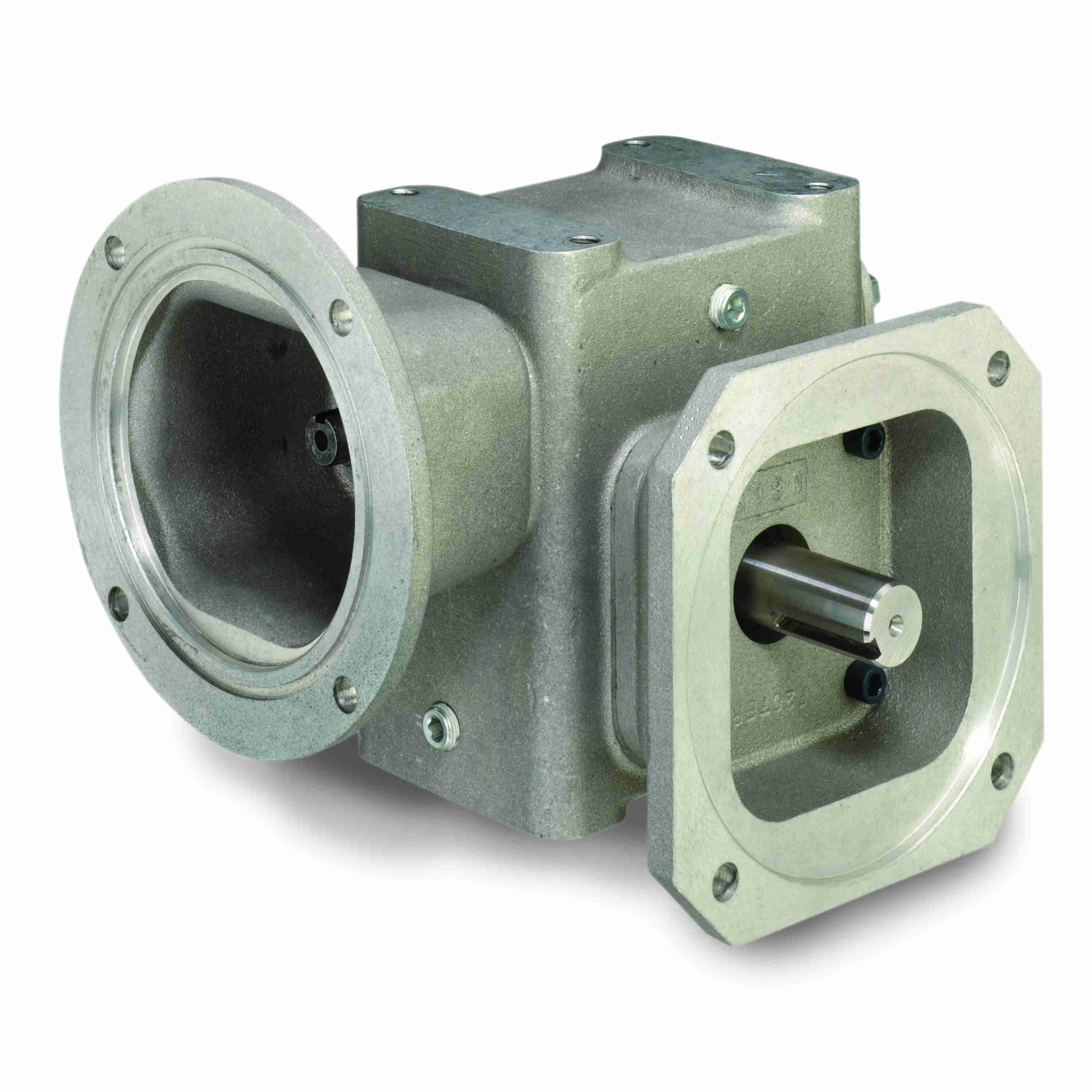

GROVE GEAR EL8305172.00 EL-FRM830-100-RR-56 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 1.5 Inch O.D, Aluminum
Get it by Tuesday, Jul 14
€1,806.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 5.25 |
| Aj | 5.88 |
| Assembly | FRM-RR |
| B | 8.11 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 8.94" |
| Center Distance | 3" |
| Frame | 56C |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Aluminum |
| I | 4.81" |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Hp | 0.603 hp |
| Input Keyway Size | 3/16" x 1/2" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| L1 | 5.38" |
| Lm | 7.67 |
| Material | Aluminum |
| Max. Input Hp | 0.603 hp |
| N | 6.62 |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Hp | 0.367 hp |
| Output Key Size | 3/8" x 2 1/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | RR |
| Output Shaft Orientation | RR |
| Output Speed | 17 RPM |
| Output Style | RR |
| Output Torque | 1321 lbs.-in. |
| Overhung Load | 2170 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| R | 5 3/4" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-FRM-RR |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| T | 1.5 |
| U | 7/8" |
| V | 0.81" |
| X | 9 1/8" to 9 1/2" |
| Y | 8.74" |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | output torque | max. input hp | gear type | mounting type | gear ratio | output shaft assembly code | output shaft | output style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8300004.00 | 2329 lbs.-in. | 4.843 hp | Worm | Base | - | L | Solid Shaft | L | €2,595.38 | |
|
EL8300239.00 | 1684 lbs.-in. | 0.895 hp | Worm | Base | - | R | Solid Shaft | R | €2,823.64 | |
|
EL8305096.00 | - | - | - | - | - | - | - | - | €1,618.82 | |
 |
EL8300193.00 | 1544 lbs.-in. | 9.093 hp | Worm | Base | - | R | Solid Shaft | R | €2,823.64 | |
 |
EL8300545.28 | 2490 lbs.-in. | 1.915 hp | Worm | Shaft Mount | - | H1 | Hollow Bore | H1 | €3,476.15 | |
|
EL8300544.24 | 2477 lbs.-in. | 2.251 hp | Worm | Shaft Mount | - | H1 | Hollow Bore | H1 | €3,476.15 | |
|
EL8300581.35 | - | - | - | - | - | - | - | - | €1,471.83 | RFQ
|
