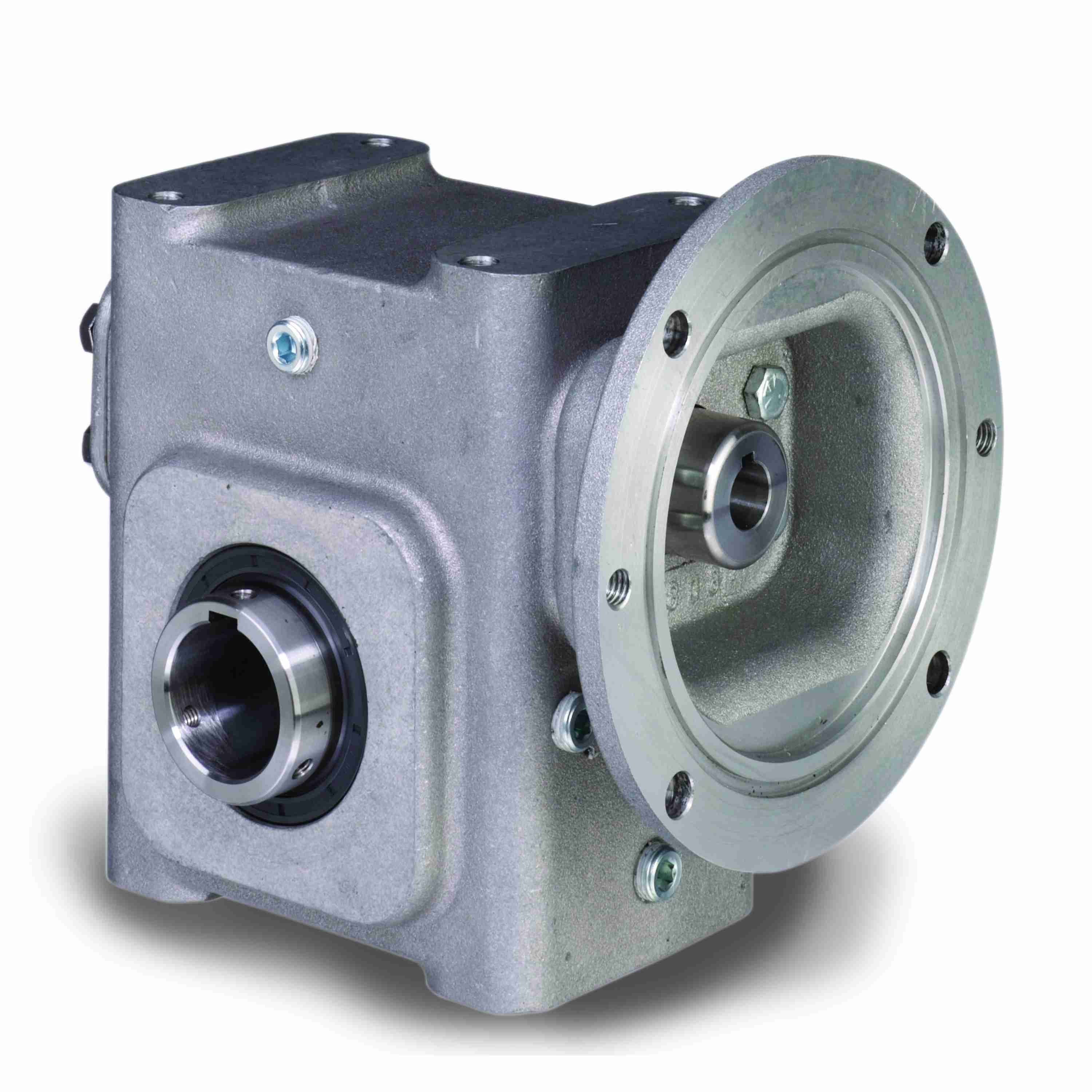

GROVE GEAR EL8300581.28 EL-HMQ830-50-H1-140-28 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.75 Inch O.D, Aluminum
Get it by Friday, Aug 28
€3,476.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 9.94 |
| Ac | 0.56 |
| Ae2 | 0.38 |
| Af | 0.69 |
| Ag | 7.5 |
| Aj | 5.88 |
| Assembly | HMQ-H1 |
| B | 8.11 |
| Be | 0.38" |
| Bf | 0.41 |
| Bore Code | 28 |
| C | 8.94" |
| Center Distance | 3" |
| F | 4.13 |
| Frame | 140TC |
| G | 2.07 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 4.81" |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 1.915 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Key Way Size | 3/16" x 3/32" |
| Length | 19.38 |
| Lq | 5.97" |
| Material | Aluminum |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output | Hollow |
| Output Dia. | 1 3/4" |
| Output Hollow Shaft Dia. | 1 3/4" |
| Output Hp | 1.383 hp |
| Output Key Size | 3/8" x 3" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Type | Hollow Shaft |
| Output Speed | 35 RPM |
| Output Style | H1 |
| Output Torque | 2490 lbs.-in. |
| Output Type | Hollow Bore |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 5 8/25" |
| Series | EL Series |
| Series Style | EL-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 35 RPM |
| Width | 15.13 |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Product | Model | Output Hp | Output Speed | Output Torque | Max. Input Hp | Output Dia. | Input Dia. | Paint/coating | Input Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8300004.00 | 4.311 hp | 116 RPM | 2329 lbs.-in. | 4.843 hp | 1 1/2" | 7/8" | Aluminum | 1750 RPM | €2,595.38 | |
|
EL8300239.00 | 0.585 hp | 21 RPM | 1684 lbs.-in. | 0.895 hp | 1 1/2" | 7/8" | Aluminum | 1750 RPM | €2,823.64 | |
|
EL8305096.00 | - | - | - | - | - | - | Aluminum | - | €1,618.82 | |
 |

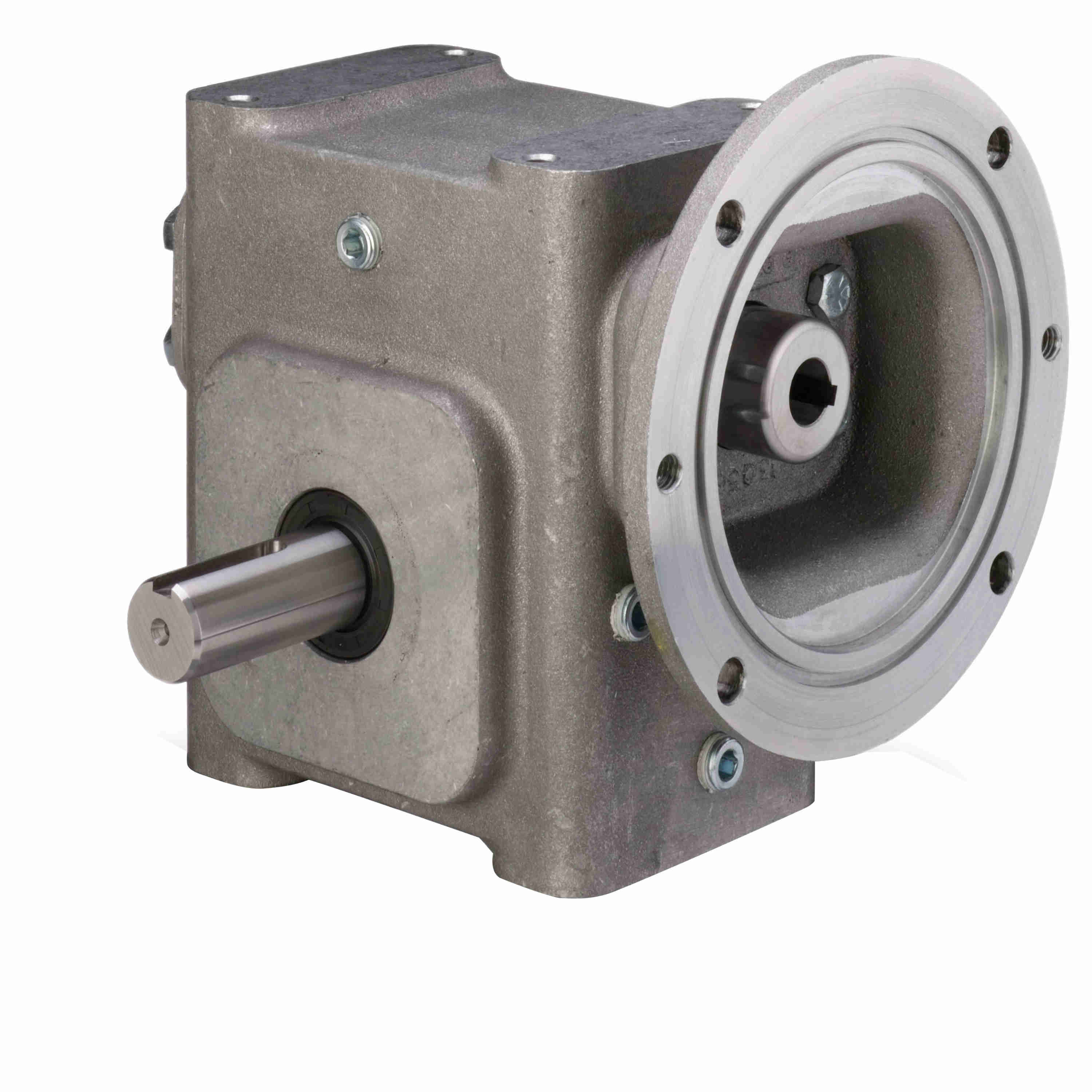

EL8300193.00 | 8.573 hp | 350 RPM | 1544 lbs.-in. | 9.093 hp | 1 1/2" | 5/8" | Aluminum | 1750 RPM | €2,823.64 | |
 |
EL8300545.28 | 1.383 hp | 35 RPM | 2490 lbs.-in. | 1.915 hp | 1 3/4" | 1 1/8" | Aluminum | 1750 RPM | €3,476.15 | |
|
EL8300544.24 | 1 18/25 hp | 43 RPM | 2477 lbs.-in. | 2.251 hp | 1 1/2" | 1 1/8" | Aluminum | 1750 RPM | €3,476.15 | |
|
EL8300581.35 | - | - | - | - | - | - | Aluminum | - | €1,471.83 | RFQ
|
