GROVE GEAR EL8260232.00 EL-BMQ826-15-R-180 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 1737 lb-in Torque, Aluminum
Get it by Friday, Aug 28
€2,188.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 4.84 |
| Aj | 7.25 |
| Ak | 8.5 |
| Application | Aluminum |
| Assembly | BMQ-R |
| B | 7.17 |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 8" |
| Center Distance | 2.63" |
| D | 3.25 |
| F | 3.38 |
| Frame | 180TC |
| G | 1.69 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 4.17" |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 1 1/8" |
| Input Hp | 3.614 hp |
| Input Hp @ 1750 Rpm | 3.614 hp |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 5" |
| K | 2 1/2" |
| Lq1 | 5.33" |
| Material | Aluminum |
| Max. Ohl (output Shaft) | 1625 |
| Max. Thrust Load (output Shaft) | 2069 |
| Mounting Type | Base |
| N | 5.63 |
| No. Of Gear Reductions | 1 |
| O | 2.73" |
| Output | Right |
| Output Dia. | 1 1/4" |
| Output Hp | 3 27/125 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2069 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 116 RPM |
| Output Style | R |
| Output Torque | 1737 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 1625 lbs. |
| Overhung Load Rating | 1625 lbs. |
| Paint/coating | Aluminum |
| Product Datasheet | grove-gear-el8420339-00.pdf |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 4.82" |
| Series | EL Series |
| Series Style | EL-BMQ-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 116 RPM |
| Tap Depth | 0.69" |
| Tap Size | 3/8"-16 |
| Torque (lb-in)@1750rpm | 1737 |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Documentation:
Product Variants
| Model | Input Dia. | Output Hp | Output Speed | Output Torque | Max. Input Hp | Input Bore Size | Input Keyway Size (c Face) | Input Hp @ 1750 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8260231.00 | 1 1/8" | 4.097 hp | 175 RPM | 1475 lbs.-in. | 4.492 hp | 1 1/8" | 1/4" x 1/8" | 4.492 hp | €2,188.53 | |
| EL8260200.00 | 7/8" | 1.287 hp | 43 RPM | 1854 lbs.-in. | 1.695 hp | 7/8" | 3/16" x 3/32" | 1.695 hp | €2,188.53 | |
| EL8260237.00 | 1 1/8" | 1.023 hp | 35 RPM | 1843 lbs.-in. | 1 21/50 hp | 1 1/8" | 1/4" x 1/8" | 1 21/50 hp | €2,188.53 | |
| EL8260238.00 | 1 1/8" | 0.835 hp | 29 RPM | 1805 lbs.-in. | 1 27/125 hp | 1 1/8" | 1/4" x 1/8" | 1 27/125 hp | €2,188.53 | |

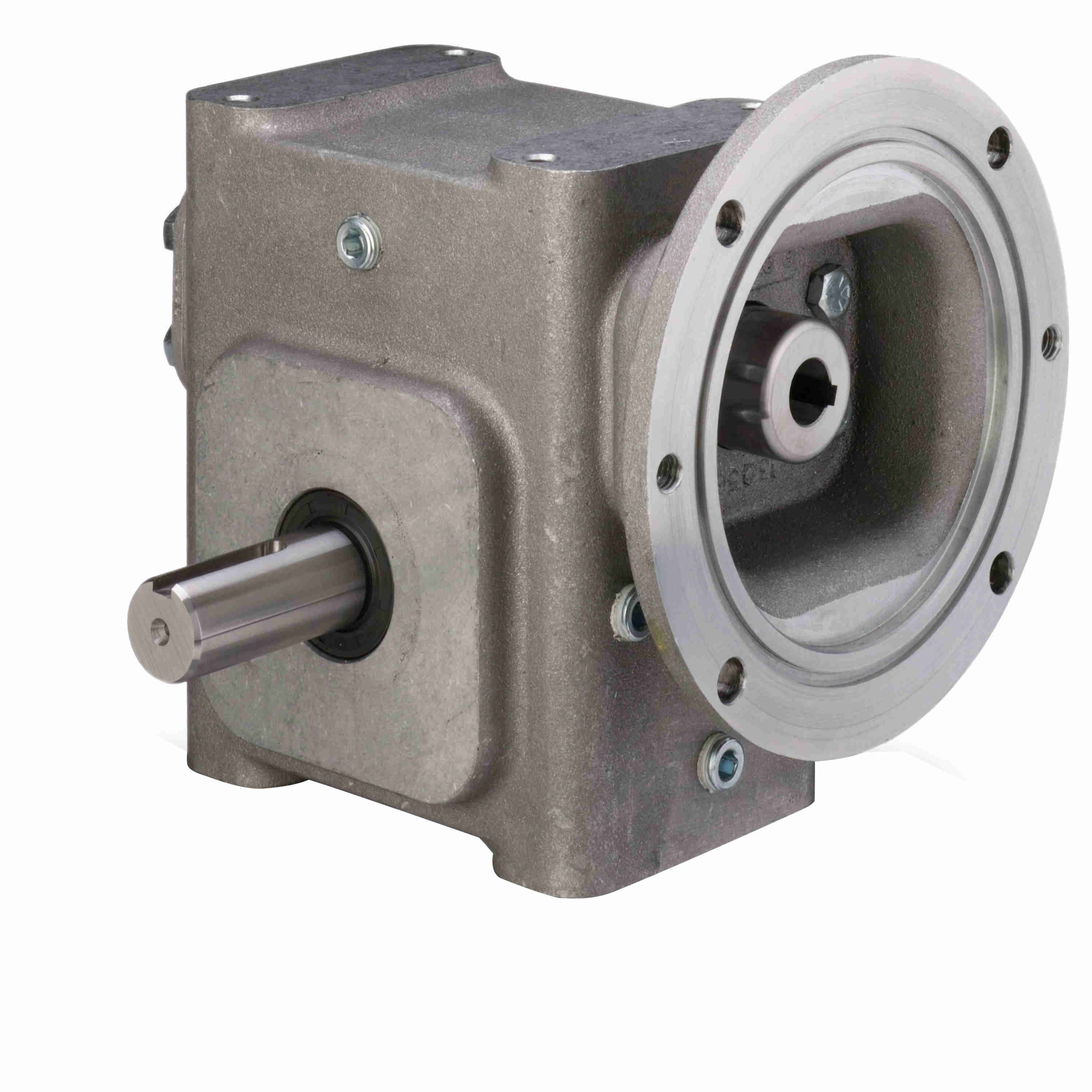

| EL8260239.00 | 1 1/8" | 0.379 hp | 21 RPM | 1092 lbs.-in. | 0.577 hp | 1 1/8" | 1/4" x 1/8" | 0.577 hp | €2,188.53 | |
| EL8260202.00 | 7/8" | 0.835 hp | 29 RPM | 1805 lbs.-in. | 1 27/125 hp | 7/8" | 3/16" x 3/32" | 1 27/125 hp | €2,188.53 | |
| EL8260234.00 | 1 1/8" | 2 19/250 hp | 70 RPM | 1869 lbs.-in. | 2.487 hp | 1 1/8" | 1/4" x 1/8" | 2.487 hp | €2,188.53 |
