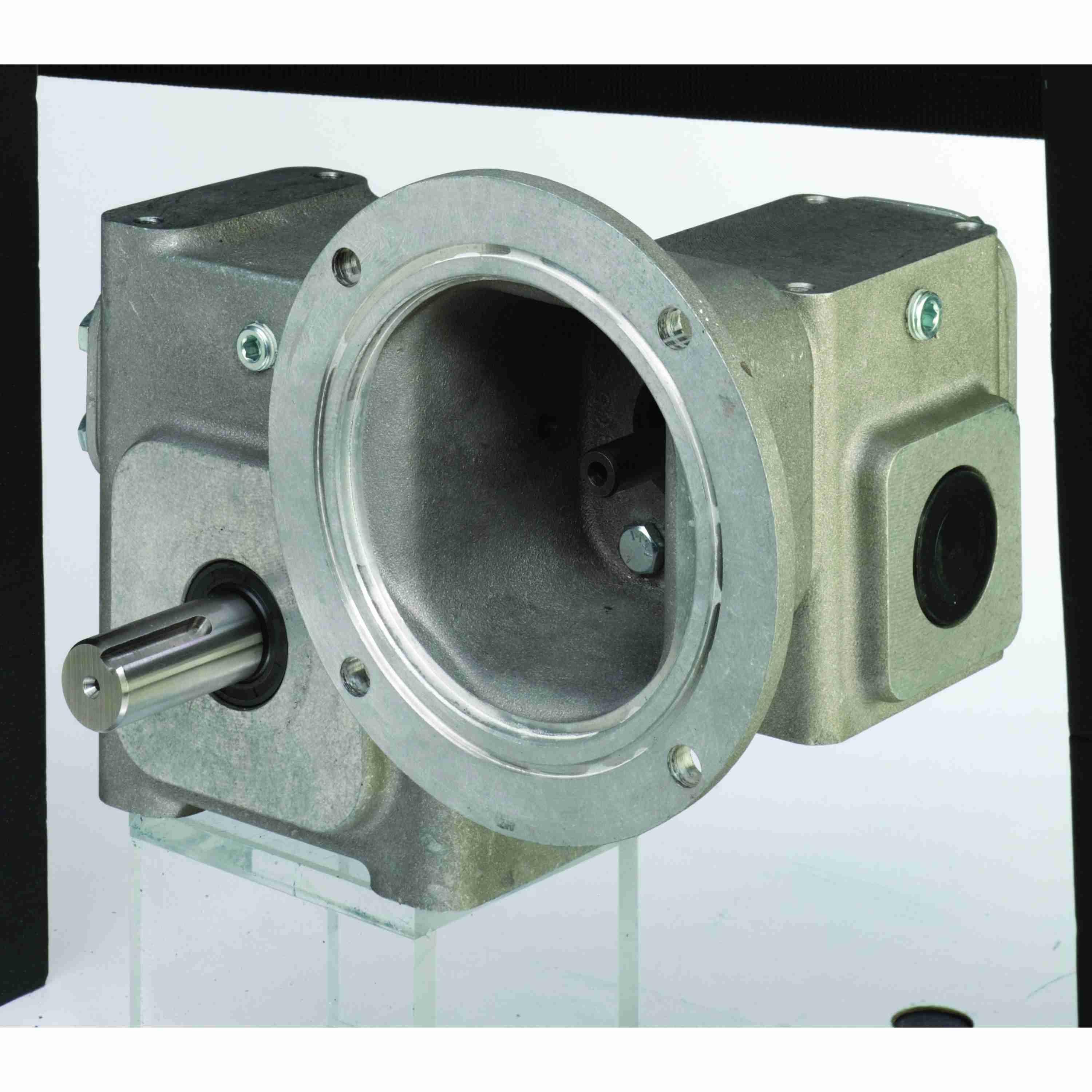

GROVE GEAR EL8212056.00 EL-DM821-300-R1-56 Double Reduction Reducer, 300:1 Ratio, 1 Inch Output Diameter, Aluminum
Get it by Thursday, Jul 16
€2,526.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 3.91 |
| Aj | 5.88 |
| Assembly | DM |
| B | 5.75 |
| Bc | 6.32 |
| Be | 0.38" |
| Bf | 0.41 |
| Bj | 10.97 |
| C | 7.63" |
| C1 | 4.66 |
| Ce | 1.33 |
| Center Distance | 2.06" |
| D1 | 1.72 |
| D2 | 2.63 |
| F | 3.25 |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.63 |
| Gear Type | Double Worm |
| Housing Material | Aluminum |
| I | 3 2/5" |
| Input Hp | 0.222 hp |
| Input Keyway Size | 1/8" x 1" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| J | 4.13" |
| K | 2.06" |
| L1 | 3.82" |
| Lm | 6.07 |
| Material | Aluminum |
| Max. Input Hp | 0.222 hp |
| N | 4.68 |
| No. Of Gear Reductions | 2 |
| O | 2.29" |
| Output Dia. | 1" |
| Output Hp | 16/125 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Shaft | Shaft |
| Output Shaft Orientation | R1 |
| Output Speed | 5.83 RPM |
| Output Torque | 1392 lbs.-in. |
| Overhung Load | 1175 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| R | 2.19" |
| Reducer | Worm - Right Angle |
| Reducer Style | DM |
| Reduction | Double |
| Reduction Type | Double |
| Series | EL Series |
| Tap Depth | 0.87" |
| Tap Size | 3/8"-16 |
| U | 1/2" |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | max. input hp | output torque | gear type | mounting type | gear ratio | center distance | output shaft | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8210010.00 | 0.674 hp | - | - | Base | 60:1 | 2.06" | - | - | €1,478.28 | |
 |
EL8210018.00 | 1.333 hp | 985 lbs.-in. | Worm | Base | - | 2.06" | Solid Shaft | 1 | €1,478.28 | |
 |
EL8210148.00 | 1.887 hp | 897 lbs.-in. | Worm | Base | - | 2.06" | Solid Shaft | 1 | €1,603.17 | |
|
EL8212139.00 | - | - | - | - | - | 2.1" | - | - | €1,235.89 | RFQ
|
|
EL8210510.24 | - | - | - | - | - | - | - | - | €1,024.17 | |
 |
EL8210534.18 | 0.674 hp | 940 lbs.-in. | Worm | Shaft Mount | - | 2.06" | Hollow Bore | 1 | €2,038.17 | |
 |
EL8210073.00 | 3.653 hp | 614 lbs.-in. | Worm | Base | - | 2.06" | Solid Shaft | 1 | €1,603.17 |
