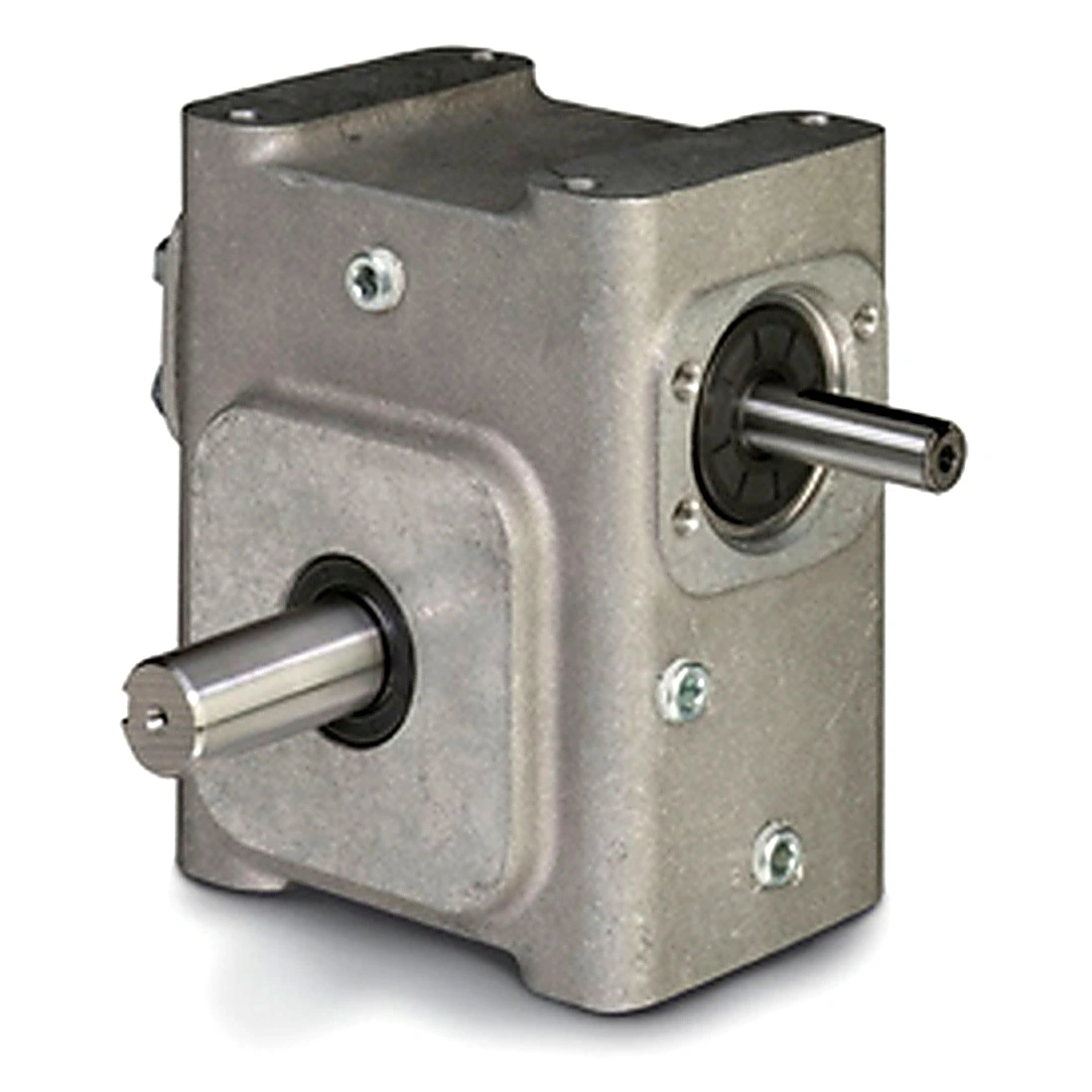

GROVE GEAR EL8210008.00 Worm Reducer, 40:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum
Get it by Monday, Dec 22
€1,478.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | B-L |
| Center Distance | 2.06" |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 0.916 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Rpm | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| Material | Aluminum |
| Max Input Hp | 229/250 hp |
| Max. Input Hp | 0.916 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
| Output Hp | 0.674 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Rpm | 43 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 1" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Torque | 971 lbs.-in. |
| Overhung Load | 1315 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-B-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 0.87" |
| Tap Size | 3/8"-16 |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | Max. Input Hp | Gear Type | Output Shaft Type | Overhung Load | Gear Ratio | Output Torque | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8210010.00 | 0.674 hp | - | Left Handed Shaft | - | 60:1 | - | Base | - | €1,478.28 | |
|
EL8210018.00 | 1.333 hp | Worm | Right Handed Shaft | 1210 lbs. | - | 985 lbs.-in. | Base | - | €1,478.28 | |
 |
EL8210148.00 | 1.887 hp | Worm | Left Handed Shaft | 1125 lbs. | - | 897 lbs.-in. | Base | 140TC | €1,603.17 | |
|
EL8212139.00 | - | - | - | - | - | - | - | - | €1,235.89 | RFQ
|
|
EL8210510.24 | - | - | - | - | - | - | - | - | €1,024.17 | |
 |
EL8210534.18 | 0.674 hp | Worm | Hollow Shaft | - | - | 940 lbs.-in. | Shaft Mount | 140TC | €2,038.17 | |
 |
EL8210073.00 | 3.653 hp | Worm | Left Handed Shaft | 1000 lbs. | - | 614 lbs.-in. | Base | 140TC | €1,603.17 |
