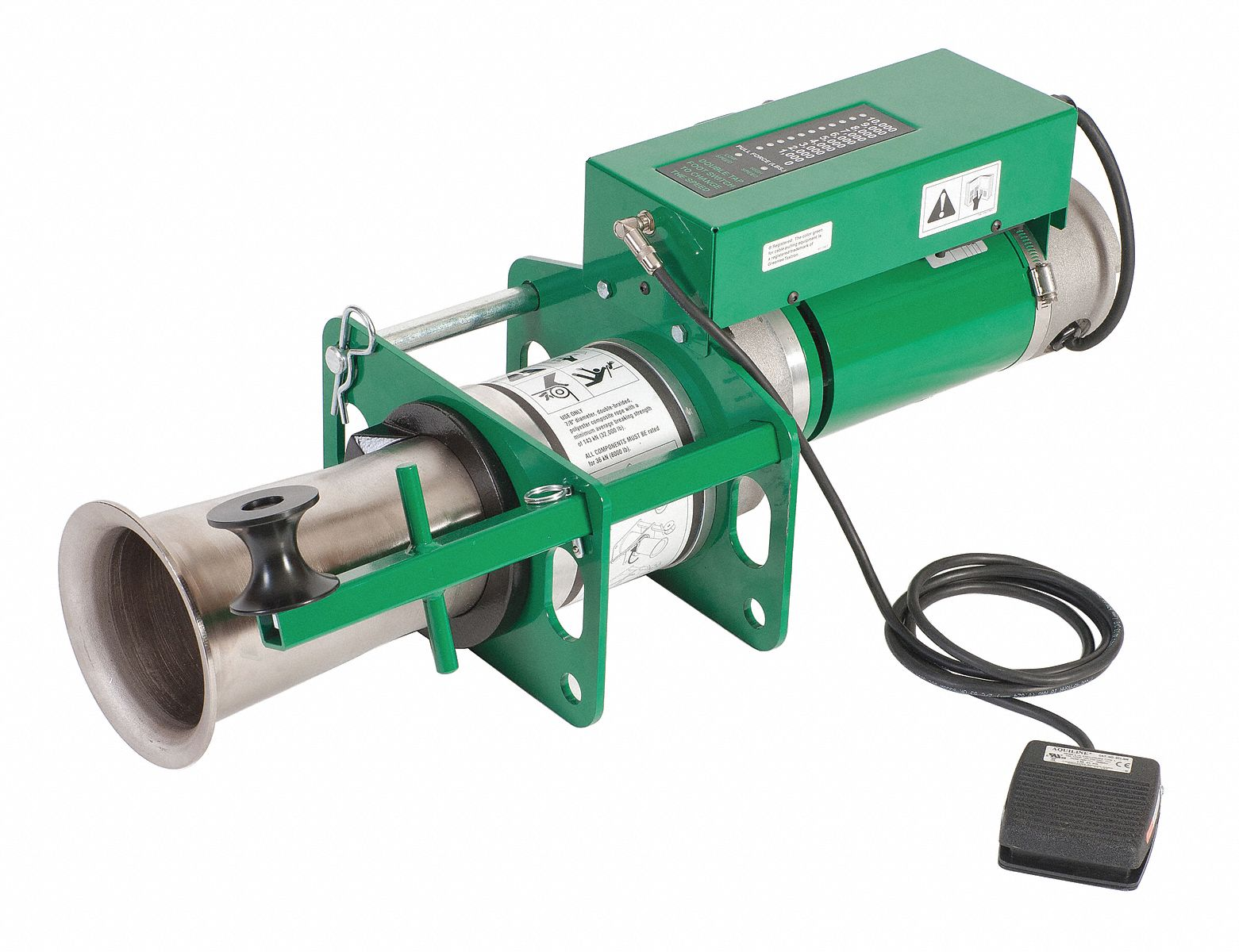

GREENLEE UT10-2S Cable Puller Assembly, 10000 lbs. Max. Capacity, 115V, 20A
Get it by Tuesday, Dec 23
10.00% off
€13,142.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cable Puller |
| Amperage Rating | 20A |
| Application | Electrical Cable Pull |
| Boom Length | Not Applicable |
| Cable Capacity | 1200 Ft. With (2) 90° Bends, 3 x 1000 Mcm Copper Cables, 4 x 500 Mcm Copper Cables, 4 x 750 Mcm Copper Cables, 750 Ft. With (4) 90° Bends, 800 Ft. With (3) 90° Bends |
| Cable Type | Electrical Cable |
| Capacity | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. |
| Current | 20A |
| Display Qty | 1 |
| Features | Can Shift From High Speed/Low Load Pulling To Low Speed/High Load Pulling With Foot Pedal Control Switch, No-Load High Speed Of 16 Ft/Min For Loads Up To 4000 Lbs., No-Load Low Speed Is 9 Ft/Min For Loads Up To 8000 Lb |
| Function | For Cable Pulling |
| Hp | 1 1/2 hp |
| Includes | Force Gauge |
| Load | 0 Lbs. to 6500 Lbs. Continuous Operation, 6500 Lbs. to 8000 Lbs. 15 Minutes On/15 Minutes Off, 8000 Lbs. to 10000 Lbs. Momentary |
| Max. Continuous Pulling Force | 6500 lbf. |
| Max. Momentary Pulling Force | 10000 lbf. |
| Maximum Compatible Conduit Size | 3" |
| Motor | 290464 |
| Motor | Two Speed |
| No Load Pulling Speed | 16 FPM |
| Pulling Force | 9986 Lb. |
| Pulling Force | 9986 lbs. |
| Pulling Speed At Max. Continuous Pulling Force | 7 FPM |
| Tool Type | Cable Puller |
| Tool Weight | 86 lbs. |
| Type | Puller Assembly |
| Use With | 7/8" Dia. (22.2mm) Double-Braided Polyester Composite Rated At 32000 lbs. (142kN) Min. Breaking Strength |
| Voltage | 115V AC |
| Voltage Rating | 115V |
Shipping Info:
| Ship weight (kg) | 48.15 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 81.28 |
| Ship width (cm) | 31.75 |
| HS code | 8425390100 |
| Country of Origin | US |
Product Details:
- Cable Capacity (4 x 500mcm Copper Cables, 800 ft. w/(3) 90 deg. Bends, 3 x 1000mcm Copper Cables, 750 ft. w/(4) 90 deg. Bends, 4 x 750mcm Copper Cables, 1200 ft. w/(2) 90 deg. Bends)
- Conduit (3")
Product Variants
| Product | Model | Material | Type | Boom Length | No Load Pulling Speed | Tool Weight | Max. Momentary Pulling Force | Hp | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MVB | Rubber, Plastic | Cable Puller | - | - | - | - | - | - | €11,281.82 | |
 |
6900 | - | Puller Assembly | Not Applicable | 16 FPM | 88 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | €15,666.16 | |
 |
6901 | - | Puller Assembly | Not Applicable | 16 FPM | 88 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | €16,516.52 | |
 |
6906 | - | Puller Assembly | 20 ft. | 16 FPM | 408 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | €25,290.80 | |
 |
430-500 | Plastic | Twine, Spiral Wrap, Tracer | - | - | - | - | - | - | €35.57 | |
 |
G3 | - | Puller Assembly | 6 ft. | 97 FPM | 123 lbs. | 2000 lbf. | 1 hp | Speed (High) No Load @ 97 Ft./Min. (30 M/Min.) 500 Lb @ 59 Ft./Min. (18 M/Min) 1000 Lbs. @ 36 Ft./Min. (11 M/Min.) Speed (Low) No Load @ 41 Ft./Min. (12 M/Min.) 1000 Lbs. @ 21 Ft./Min. (6 M/Min) 2000 Lbs. (Intermittent? 5 Min. On, 20 Min. Off)@ 13 Ft./Min. (4 M/Min.) | €8,394.13 | |
 |
G6 | - | Electric | 7.5 ft. | 90 FPM | 252 lbs. | 6000 lbf. | 1 1/2 hp | - | €15,575.28 |
