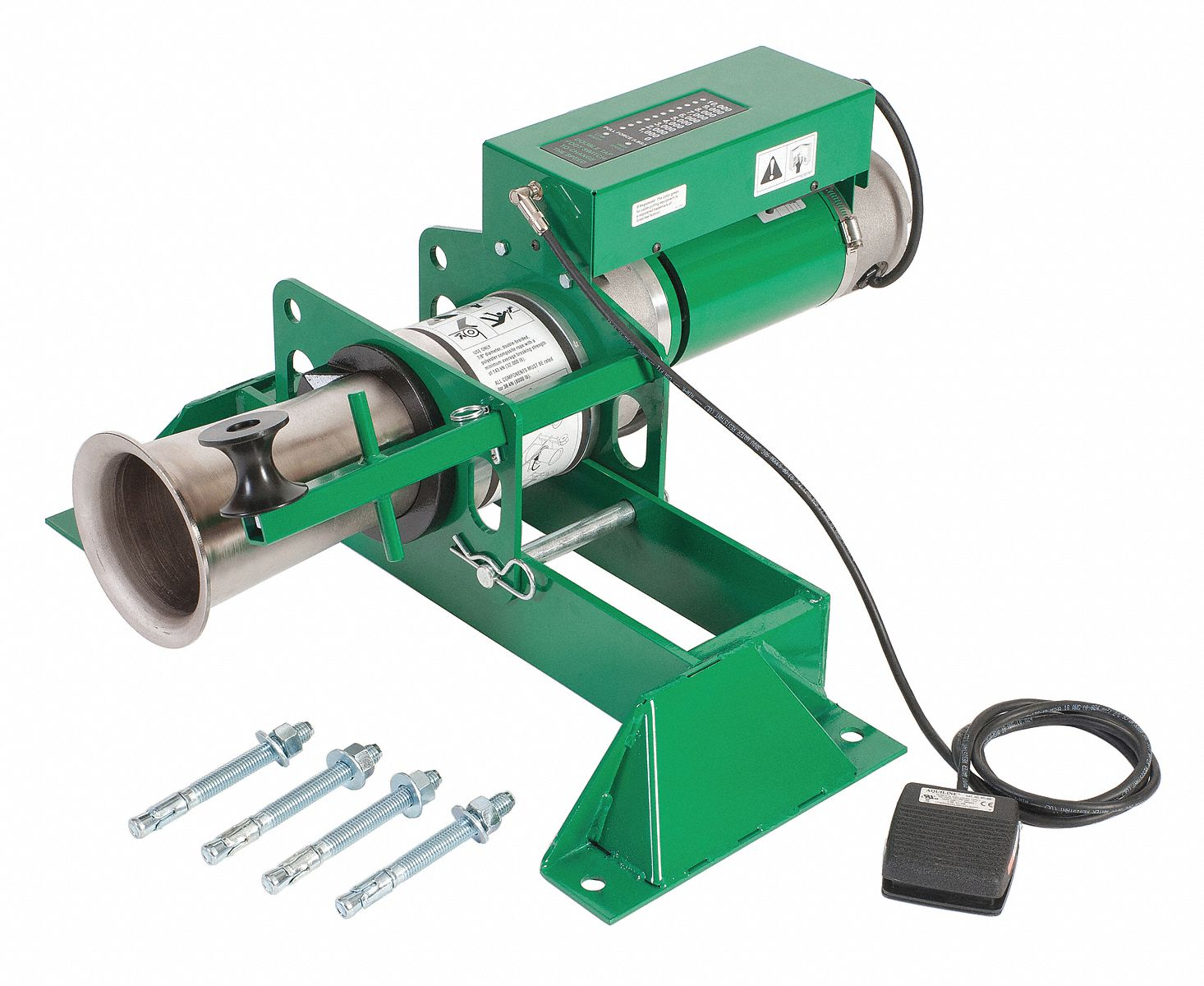

GREENLEE 6900 Cable Puller Package, With Floor Mount, 10000 lbs. Max. Capacity, 115V, 20A | AA7GGK 15X796

GREENLEE 6900 Cable Puller Package, With Floor Mount, 10000 lbs. Max. Capacity, 115V, 20A

Item: AA7GGKModel: 6900Cross Ref: 15X796
Check Availability
In Stock

Get it by Tuesday, Jun 30

€15,666.16
5.00% off
€14,882.85 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Cable Puller
Amps 20A
Application Electrical Cable Pull
Boom Length Not Applicable
Cable Capacity 1200 Ft. With (2) 90° Bends, 3 x 1000 Mcm Copper Cables, 4 x 500 Mcm Copper Cables, 4 x 750 Mcm Copper Cables, 750 Ft. With (4) 90° Bends, 800 Ft. With (3) 90° Bends
Cable Type Electrical Cable
Capacity The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs.
Display Qty 1
Features Removable Foot Pedal
Frequency 1 Hz
Function For Cable Pulling
Hp 1 1/2 hp
Included Floor Mount, Force Gauge
Load 0 Lbs. to 6500 Lbs. Continuous Operation, 6500 Lbs. to 8000 Lbs. 15 Minutes On/15 Minutes Off, 8000 Lbs. to 10000 Lbs. Momentary
Max. Continuous Pulling Force 6500 lbf.
Max. Momentary Pulling Force 10000 lbf.
Motor Two Speed
Motor 290464
Mounting Floor Mount
Mounting Type Floor Mount
No Load Pulling Speed 16 FPM
Overall Height 6 3/4"
Overall Length 11 1/2"
Overall Width 26"
Phase 1
Power Source Corded
Pulling Force 9986 Lb.
Pulling Force 9986 lbs.
Pulling Speed @ Max. Continuous Pulling Force 7 FPM
Required Pulling Rope Dia. 7/8"
Required Pulling Rope Type Double Braided Polyester Composite
Tool Type Cable Puller
Tool Weight 88 lbs.
Type Puller Assembly
Use With 7/8" Dia. (22.2mm) Double-Braided Polyester Composite Rated At 32000 lbs. (142kN) Min. Breaking Strength
Voltage 115V , 115V AC

Shipping Info:

Ship weight (kg) 192.6
Ship height (cm)148.59
Ship length (cm)74.93
Ship width (cm)60.96
HS code8425390100
Country of OriginUS

Product Details:

    • Cable Capacity (4 x 500mcm Copper Cables, 800 ft. w/(3) 90 deg. Bends, 3 x 1000mcm Copper Cables, 750 ft. w/(4) 90 deg. Bends, 4 x 750mcm Copper Cables, 1200 ft. w/(2) 90 deg. Bends)

Product Variants

ProductModelAmpsVoltageMaterialTypeBoom LengthNo Load Pulling SpeedTool WeightMax. Momentary Pulling ForcePrice
GREENLEE UT10-2S Cable Puller Assembly, 10000 lbs. Max. Capacity, 115V, 20A | AA7GGH 15X794 UT10-2S20A115V AC-Puller AssemblyNot Applicable16 FPM86 lbs.10000 lbf.€14,603.23
GREENLEE MVB Mobile Versiboom Cable Puller, Up To 20 Ft. Extendable | AA7GGJ 15X795 MVB--Rubber, PlasticCable Puller----€11,281.82
GREENLEE 6901 Cable Puller Package, With Chain Mount, 10000 lbs. Max. Capacity, 115V, 20A | AA7GGL 15X797 690120A115V AC-Puller AssemblyNot Applicable16 FPM88 lbs.10000 lbf.€16,286.61
GREENLEE 6906 Cable Puller Package, With Mobile Versi Boom, 10000 lbs. Max. Capacity, 115V, 20A | AA7GGM 15X798 690620A115V AC-Puller Assembly20 ft.16 FPM408 lbs.10000 lbf.€25,290.80
GREENLEE 430-500 Spiral Wrap Twine Rope Puller, 210 lbs. Breaking Strength, Green | AA9TWL 1FAJ4 430-500--PlasticTwine, Spiral Wrap, Tracer----€34.86
GREENLEE G3 Cable Puller, 1200 lbs. Continuous Load Rating, 120V, 12A | AG2AHT 31AD38 G312A120V-Puller Assembly6 ft.97 FPM123 lbs.2000 lbf.€8,394.13
GREENLEE G6 Cable Puller, Electric, 6000 lbs. Pulling Force | CH9UCR 454N82 G612A115V AC-Electric7.5 ft.90 FPM252 lbs.6000 lbf.€15,575.28
