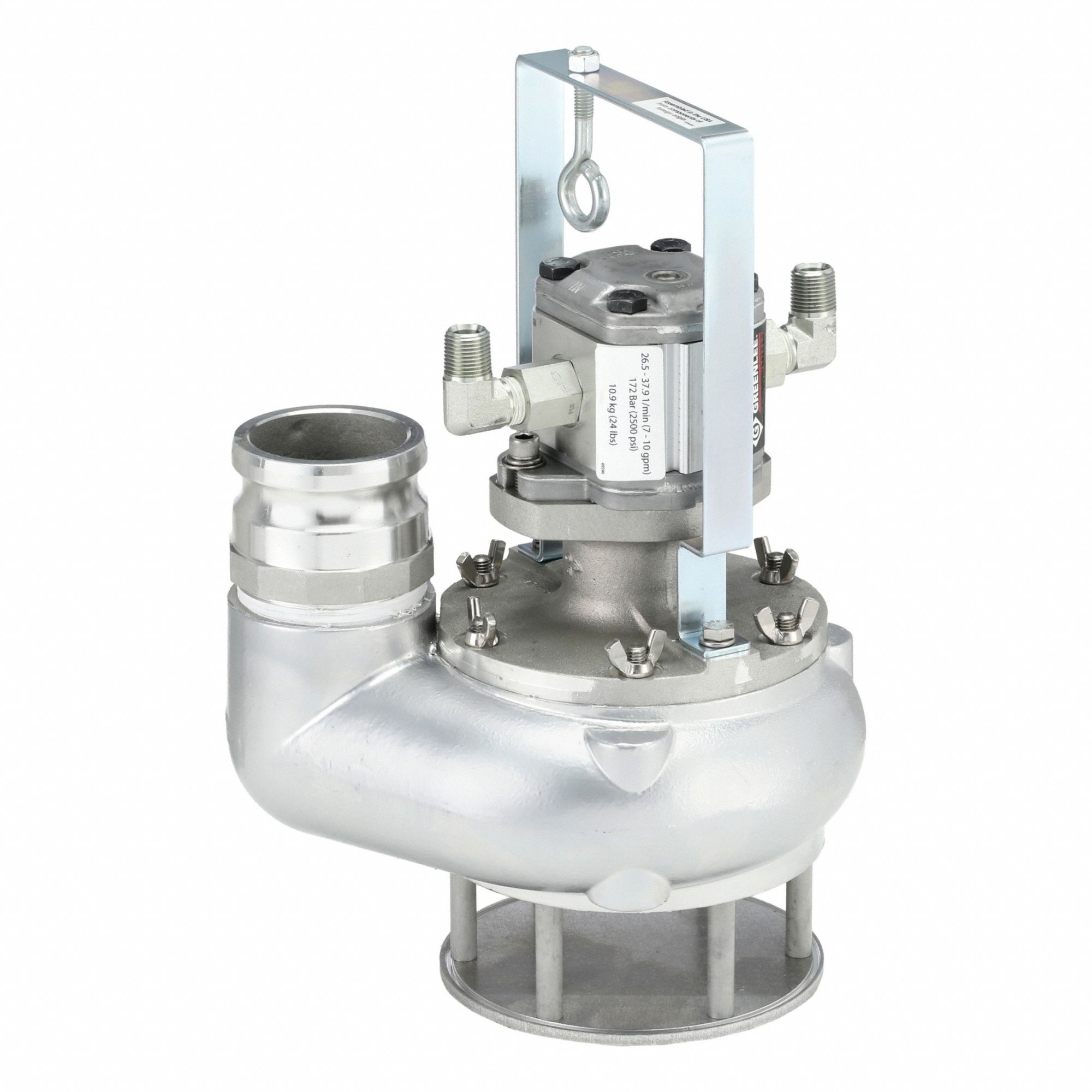

GREENLEE H4635 Hydraulic Trash Pump, 500 GPM Capacity, 7 To 10 GPM Flow, 3 Inch FNPT Discharge | AE4XXX 5NWK5

GREENLEE H4635 Hydraulic Trash Pump, 500 GPM Capacity, 7 To 10 GPM Flow, 3 Inch FNPT Discharge

Item: AE4XXXModel: H4635Cross Ref: 5NWK5
Check Availability
In Stock

Get it by Wednesday, Dec 24

€7,074.08
10.00% off
€6,366.68 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Submersible Trash Pump
Base Material Aluminum
Capacity 0 GPM to 500 GPM
Diameter 11.87"
Discharge Size 3"
Discharge Type NPT Female
Flow Rate 7-10 GPM
Head Height 15 ft.
Height 14.18"
Housing Aluminum
Housing Material Aluminum
Hydraulic Pressure Port 1/2" MNPTF
Hydraulic Return Port 1/2" Male NPTF
Hydraulic System Type Open Or Closed Center
Impeller Material Stainless Steel
Includes Cam Lock Adapter
Max. Back Pressure 200 psi
Max. Ft. Of Head @ 10 Gpm 106 ft.
Max. Ft. Of Head @ 7 Gpm 60 ft.
Max. Ft. Of Head @ 8 Gpm 72 ft.
Max. Ft. Of Head @ 9 Gpm 95 ft.
Max. Hydraulic Flow 10 GPM
Max. Oil Pressure 2500 psi
Max. Oil Temp. 140 F
Max. Oil Temp. 140°F
Max. Solid Dia. 3"
Max. Water Gpm @ 10 Gpm Oil Flow 500 GPM
Max. Water Gpm @ 7 Gpm Oil Flow 500 GPM
Max. Water Gpm @ 8 Gpm Oil Flow 500 GPM
Maximum Water Gpm @ 9 Gpm Oil Flow 425 GPM
Min. Hydraulic Flow 7 GPM
Operating Pressure 0 psi to 2000 psi
Pressure Port Size 1/2"
Pressure Port Type Male NPTF
Pump Discharge Port 3"
Pump Inlet Port 3 1/8"
Recommended Filtration (microns) 10
Recommended Filtration (microns) 10 µm
Recommended Hydraulic Flow 8 GPM
Relief Valve Psi Setting 2500 psi
Return Port Size 1/2"
Return Port Type Male NPTF
Suction Size 3 1/8"
System Open And Closed Center System
Top Material Aluminum
Trash Diameter 3"
Type Trash, Hydraulic
Viscosity (sus @ 100 F) 140 min. to 225 min.
Viscosity (sus @210 F) 40 min.
Weight 28 lbs.
Width 11.87"

Shipping Info:

Ship weight (kg) 14.28
Ship height (cm)49.02
Ship length (cm)30.99
Ship width (cm)25.65
HS code8413702004
Country of OriginUS

Product Details:

    • Self-priming hydraulic submersible trash pump to handle large amounts of water that contains hard & soft solids such as mud, leaves, twigs, sand & sludge
    • Features aluminium housing and stainless-steel impeller to offer max water head up to 106 ft and flow rates up to 500 gpm
    • Equipped with 1/2 inch male NPTF inlet / outlet port in a compact design and a cam lock coupling for quick connection / disconnection of hydraulic hoses
    • Operates on open and close centred hydraulic systems with oil flow rates between 7 - 10 gpm and a max hydraulic pressure of 2000 psi
    • Pumps solid contents up to 3 inches in diameter and can run dry without damaging its internal components
