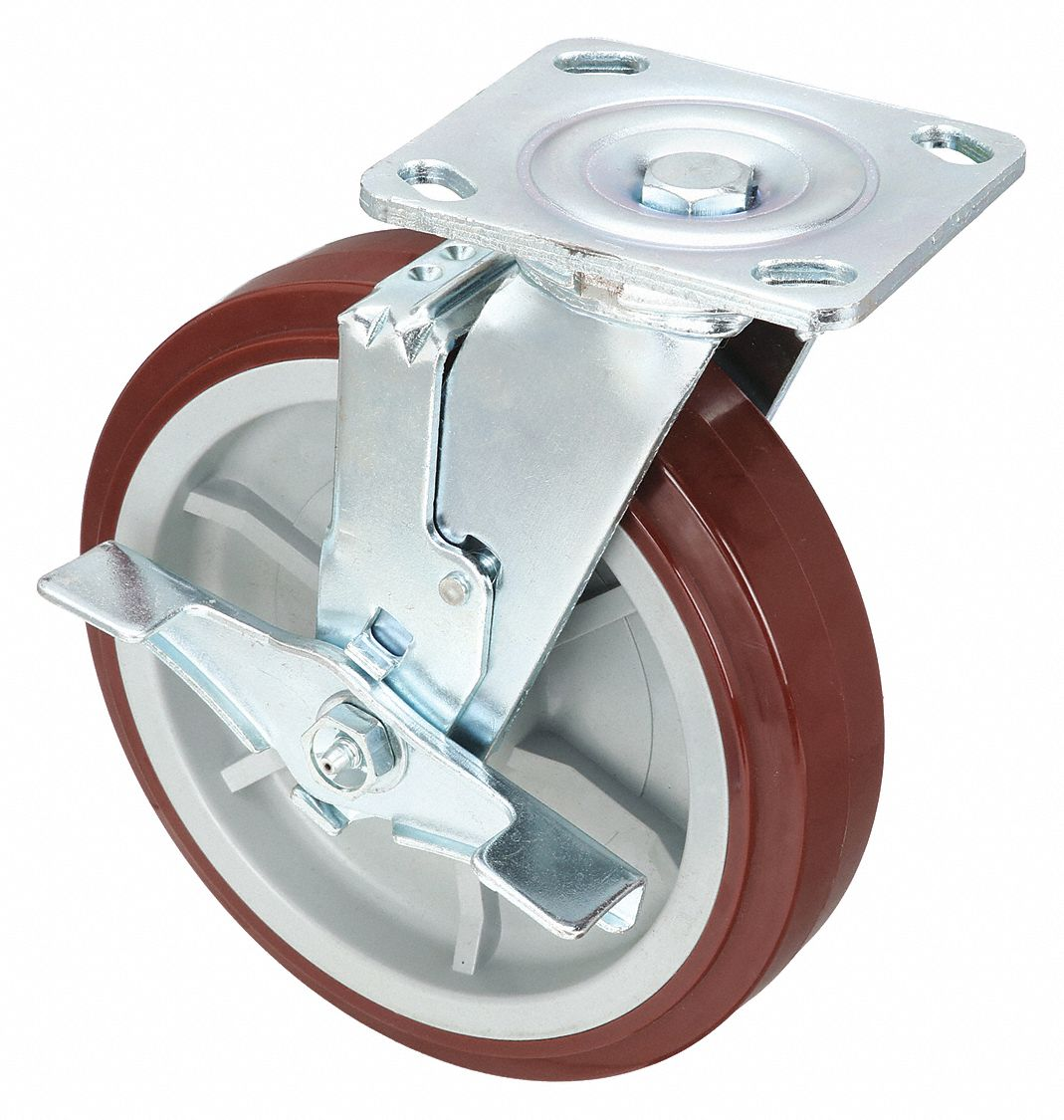

GREENLEE CS8 Swivel Caster, With Brake, 8 Inch Dia., 900 lbs. Capacity
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€117.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Capacity | 900 lbs. |
| Capacity Per Wheel | 900 |
| Caster Bolt Pattern | 2 3/4" x 3 1/2" |
| Caster Brake Included | Yes |
| Caster Brake Type | Side Pedal Brake |
| Caster Core Material | Polyurethane |
| Caster Frame Material | Steel |
| Caster Plate Hole Pattern | B |
| Caster Shape | Standard |
| Caster Sub-type | Swivel |
| Core Color | Red |
| Dynamic Load | 900 lbs. |
| Features | Operates Well On Several Hard Surfaces, Resists Flat Spots And Damage From Debris |
| Height | 8" |
| Included | Swivel 8" x 2" Polyurethane Coated Caster |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 2 5/8" x 3" |
| Load Rating | 900 lbs. |
| Load Rating Range | 300 lbs. to 999 lbs. |
| Material | Phenolic |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4.5" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3.625" |
| Plate Size | 4" to 4 1/2" |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Tread Shape | Standard |
| Type | Swivel Caster |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Red |
| Wheel Core Material | Polyurethane |
| Wheel Dia. | 8" |
| Wheel Diameter | 8" |
| Wheel Material | Polyurathane On Polyolefin |
| Wheel Tread | 2" |
| Wheel Type | Caster |
| Wheel Width | 2" |
| Wheel/tread Color | Red |
| Wheel/tread Hardness | 90-95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 3.67 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 31.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Material | Wheel Dia. | Wheel Width | Wheel/tread Hardness Rating | Wheel Bearings | Wheel Bearing Type | Caster Brake Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CST10 | Semi-Pneumatic | 10" | 3" | Soft | 3/4 Ball | Precision Ball | No Brake Included | 12" | €123.74 | |
 |
CS4 | Phenolic | 4" | 2" | Hard | Roller | Roller | No Brake Included | 5 5/8" | €77.93 | |
 |
CS6 | Polyurathane On Polyolefin | 6" | 2" | Firm | Roller | Roller | No Brake Included | 7 1/2" | €101.72 |
