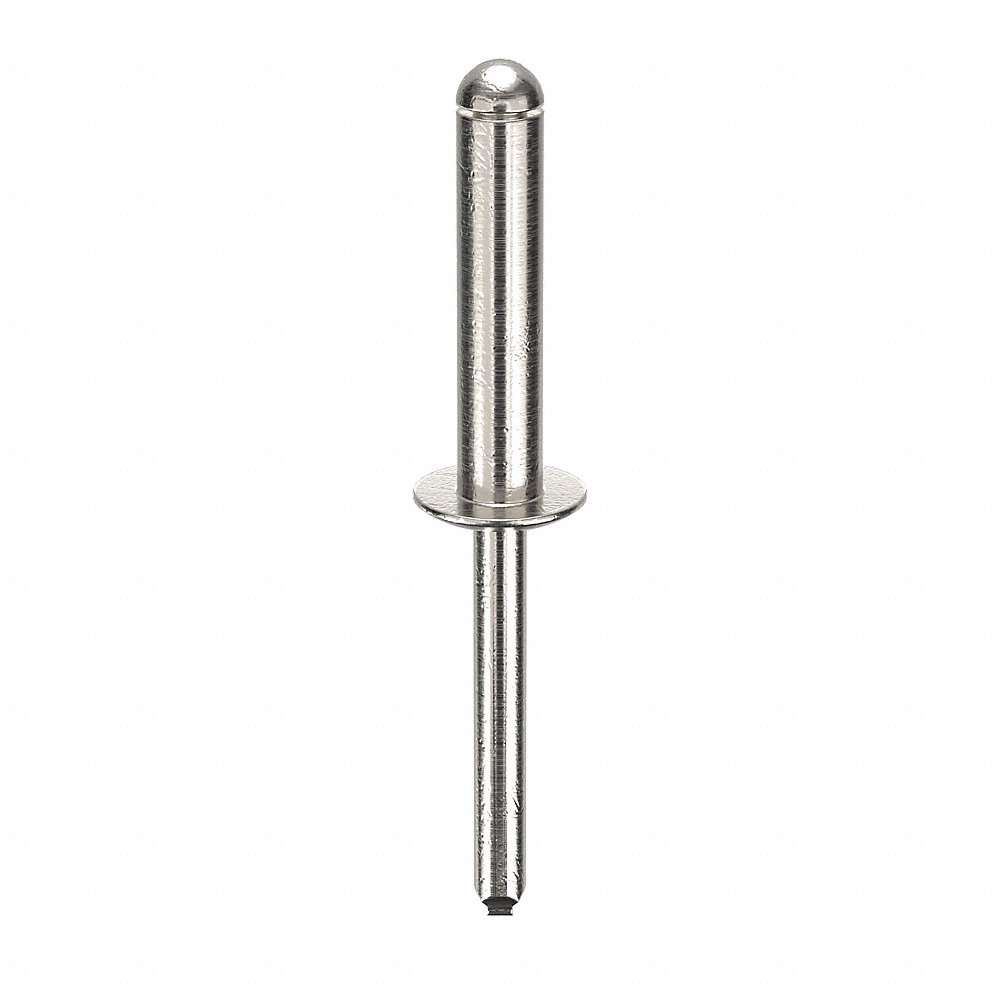

GRAINGER U33190.025.0814 Blind Rivet, 1/4 In Rivet Dia., Alu, 1 1/8 In Rivet Lg.
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€54.81 /pkg. of 100
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blind Rivet |
| Blind Rivet Type | Open End |
| Body Length | 1 1/8" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Aluminum |
| Color | Gray |
| Drill Size | F |
| Finish | Plain |
| Grade | Grade 5052 |
| Grip Range | 0.751" to 0.875" |
| Head Angle | 90° |
| Head Dia. | 0.475" to 0.525" |
| Head Diameter | 1/2" |
| Head Diameter Tolerance | -0.025" to +0.025" |
| Head Height | 2/25" |
| Head Style | Dome |
| Head Type | Dome |
| Hole Size | 0.257" to 0.261" |
| Ifi Grade | Grade IFI-114-11 |
| Mandrel Material | Aluminum |
| Maximum Hole Diameter | 0.261" |
| Maximum Material Thickness | 7/8" |
| Minimum Hole Diameter | 0.257" |
| Minimum Material Thickness | 3/4" |
| Overall Length | 2 29/64" |
| Product Type | Blind Rivet |
| Rivet Dia. | 1/4" |
| Rivet Length | 1 1/8" |
| Rivet Material | Aluminum |
| Rivet Number | 814 |
| Rivet Type | Open End |
| Shank Diameter | 0.25" |
| Shear Strength | 460 lbs. |
| Single Shear Strength | 460 lbs. |
| Standards | Ifi 114 |
| System Of Measurement | Imperial |
| Tensile Strength | 560 lbs. |
Shipping Info:
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308206000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD810ABS203 | 0.85" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €62.83 | |
 |
AD810BS203 | 0.85" | 1/2" | Aluminum | Steel | Grade 5056 | 600 lbs. | 1200 lbs. | F | 100 | €44.98 | |
 |
AD812ABS203 | 0.975" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €50.90 | |
 |
AD812BS203 | 0.975" | 1/2" | Aluminum | Steel | Grade 5056 | 600 lbs. | 1200 lbs. | F | 100 | €49.11 | |
 |
AD84ABS203 | 0.475" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €34.09 | |
 |
AD84BS203 | 0.475" | 1/2" | Aluminum | Steel | Grade 5056 | 600 lbs. | 1200 lbs. | F | 100 | €22.47 | |
 |
AD86ABS203 | 3/5" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €34.49 |
