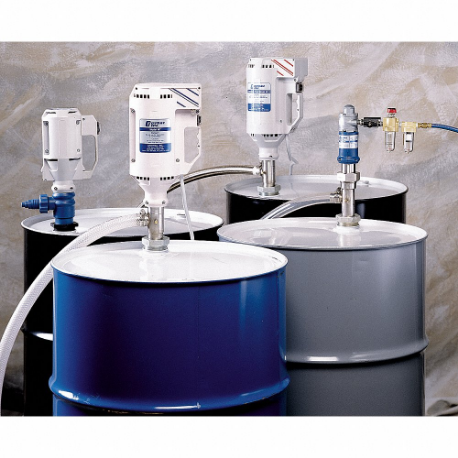

GRAINGER TTS-ET-40 Electric Operated Drum Pump, 1/4 Hp Motor Hp, 55 Gal For Container Size, 110VAC
Get it by Tuesday, Aug 18
5.00% off
€3,346.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Agency Compliance | CSA |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Tube Outside Dia. | 1" |
| Display Qty | 1 |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | General Purpose |
| For Use With | Transfer Of Corrosive Chemicals, Solvents, Flammables, High Purity Or Sanitary Applications |
| Frequency | 60 Hz |
| Hose Length | 40" |
| Housing Material | Stainless Steel |
| Housing Material-pumps | Stainless Steel |
| Included | Motor, Pump |
| Included Bung Adapter | No |
| Included Discharge Hose | No |
| Included Nozzle | No |
| Included Suction Tube | Yes |
| Max. Flow Rate | 10 GPM |
| Max. Fluid Temp. | 150°F |
| Max. Head | 10 ft. |
| Max. Temp. | 150°F |
| Max. Viscosity | 400 cPS |
| Media Type | General Purpose |
| Metered | No |
| Motor Enclosure | Tefc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hp | 1/4 hp |
| Motor Speed | 3450 RPM |
| Motor Type | Totally Enclosed Fan Cooled |
| Nominal Voltage | 110V AC |
| Phase | 1 |
| Power Source | Electric |
| Pump Package Type | Basic Pump |
| Seal Material | PTFE |
| Suction Tube Inside Dia. | 1 1/2" |
| Suction Tube Length | 40" |
| Voltage | 115V , 115V AC |
| Wetted Material | 316 Stainless Steel, PTFE , PTFE, Stainless Steel |
| Wetted Material Grade | Grade 316 |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Flow Rate | For Container Size | Power Source | Discharge Tube Outlet Outside Dia. | Max. Viscosity | For Container Type | Included Bung Adapter | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HVDP & M58H | 8.5 GPM | 55 gal. | Electric | 1 7/8" | 20000 cPS | Drum | No | 300 ft. | €11,401.54 | |
 |
ACTHD15ESS | 10 gal./stroke | 55 gal. | - | - | 5000 cPS | Drum | - | - | €2,490.50 | |
 |
ACT-17ESS | 20 gal./stroke | 55 gal. | - | - | 1000 cPS | Drum | - | - | €2,216.40 | |
 |
490SSTSP | 6 gal./stroke | 55 gal. | Hand Operated | - | 2000 cPS | - | - | 16 ft. | €401.83 | |
 |
THP-5-STGRND | 10 oz./stroke | 5 gal. | - | - | 2000 SUS | Drum | Yes | - | €330.42 | |
 |
THP-STGRND | 20 oz./stroke | 55 gal. | - | - | 2000 SUS | Drum | Yes | - | €309.09 | |
 |
HVDP & M66 | 7 GPM | 55 gal. | Air | 2" | - | Drum | No | 300 ft. | €9,859.21 |
