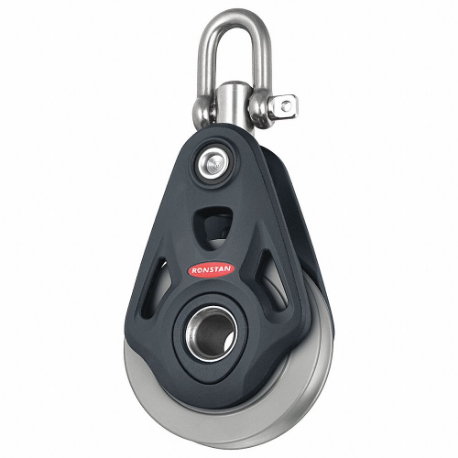

GRAINGER RF74100AW Pulley Block, Shackle, 9/16 Inch Max. Cable Size, Plain
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€304.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pulley Block |
| Attachment Type | Shackle |
| Bearing Type | Ball |
| Block Grade | Grade 316 |
| Block Material | Stainless Steel |
| Compatible Rope Diameter | 9/16" |
| Compatible Rope Type | Wire Rope |
| Designed For | Wire Rope |
| Eye Hook Inside Dia. | 5/8" |
| Finish | Anodized |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Includes | Shackle |
| Length | 6 1/2" |
| Max. Cable Size | 0.562" |
| Number Of Grooves | 1 |
| Operation | Pulling |
| Overall Depth | 37 mm |
| Overall Height | 169 mm |
| Overall Width | 75 mm |
| Product Type | Pulley Block |
| Pulley Type | Swivel |
| Rope Dia. | 9/16" |
| Sheave Depth | 3/4" |
| Sheave Inside Dia. | 2 3/8" |
| Sheave Inside Diameter | 2 1/4" |
| Sheave Material | Aluminum |
| Sheave Outside Dia. | 3" |
| Sheave Width | 3/4" |
| Standards | Iso 9001 |
| Width | 3" |
| Working Load Limit | 3300 lbs. |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 16.9 |
| Ship length (cm) | 3.7 |
| Ship width (cm) | 7.5 |
| Country of Origin | AU |
Product Variants
| Product | Model | Rope Dia. | Designed For | Sheave Outside Dia. | Sheave Material | Finish | Working Load Limit | Attachment Type | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RZ1705 | 9/16" | Wire Rope | 3" | Thermoplastic | Powder Coated | 3300 lbs. | Shackle | Sleeve | €255.88 | |
 |
03058-2-C | 1/4" | Wire Rope | 3" | Steel | Zinc Plated | 800 lbs. | Bolt On | Sleeve | €69.62 | |
 |
D00258 | 1/4" | Wire Rope | 2 1/2" | Steel | Zinc Plated | 685 lbs. | Bolt On | Sleeve | €58.45 | |
 |
02058-2-C | 3/16" | Wire Rope | 2" | Steel | Zinc Plated | 600 lbs. | Bolt On | Sleeve | €37.86 | |
 |
RF104100 | 3/4" | Fibrous Rope | 4" | Nylon | Anodized | 7150 lbs. | Shackle | Sleeve | €892.00 | |
 |
RF66100 | 9/16" | Fibrous Rope | 2 3/4" | Thermoplastic | Plain | 2430 lbs. | Shackle | Sleeve | €82.36 | |
 |
02048-2-C | 3/16" | Wire Rope | 2" | Steel | Zinc Plated | 600 lbs. | Swivel Eye | Sleeve | €52.05 |
