GRAINGER Blocks and Sheaves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O| Style | Model | Rope Dia. | Designed For | Sheave Outside Dia. | Sheave Material | Finish | Working Load Limit | Attachment Type | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

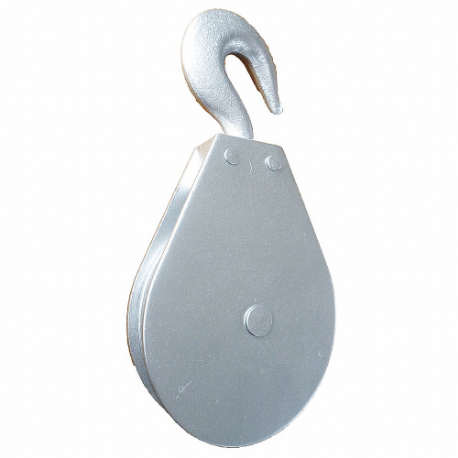

| A | 5RRX0 | - | Wire Rope | 3" | Steel | Zinc Plated | 800 lbs. | Swivel Hook | - | €15.68 | |
| B | 03548-2-C | - | Wire Rope | 3 1/2" | Steel | Zinc Plated | 1550 lbs. | Swivel Eye | Sleeve | €113.31 | |

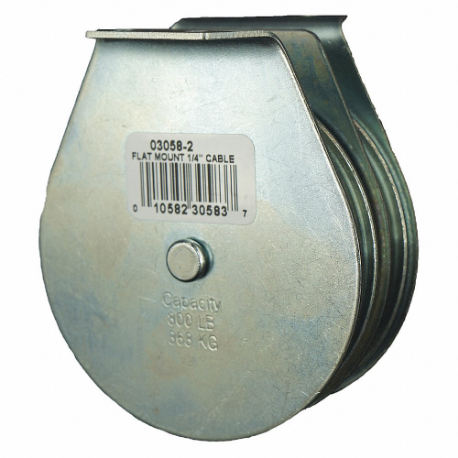

| C | 03058-2-C | 1/4" | Wire Rope | 3" | Steel | Zinc Plated | 800 lbs. | Bolt On | Sleeve | €69.45 | |
| D | D00258 | 1/4" | Wire Rope | 2 1/2" | Steel | Zinc Plated | 685 lbs. | Bolt On | Sleeve | €58.29 | |
| E | 00258-C | 1/4" | Wire Rope | 2 1/2" | Steel | Zinc Plated | 685 lbs. | Center Bore | Sleeve | €20.06 | |
| F | 00308-C | 1/4" | Wire Rope | 3" | Steel | Zinc Plated | 800 lbs. | Center Bore | Sleeve | €23.28 | |
| G | 00258-1/8-C | 1/8" | Wire Rope | 2 1/2" | Steel | Zinc Plated | 685 lbs. | Center Bore | Sleeve | €20.06 | |
| H | RF104100 | 3/4" | Fibrous Rope | 4" | Nylon | Anodized | 7150 lbs. | Shackle | Sleeve | - | RFQ
|
| I | 02058-2-C | 3/16" | Wire Rope | 2" | Steel | Zinc Plated | 600 lbs. | Bolt On | Sleeve | €37.77 | |
| J | 02048-2-C | 3/16" | Wire Rope | 2" | Steel | Zinc Plated | 600 lbs. | Swivel Eye | Sleeve | €51.94 | |

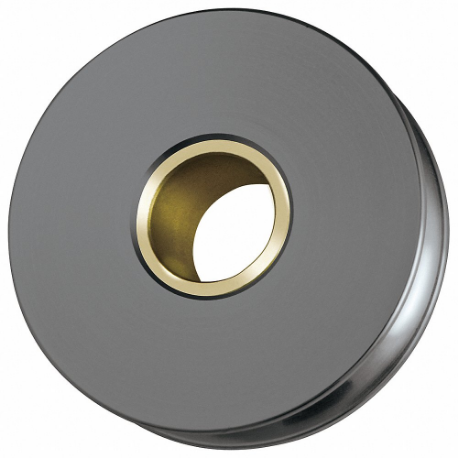

| K | RZ1000AW | 5/16" | Wire Rope | 3" | Acetel | Plain | 6600 lbs. | Axle Pin | Sleeve | €130.73 | |

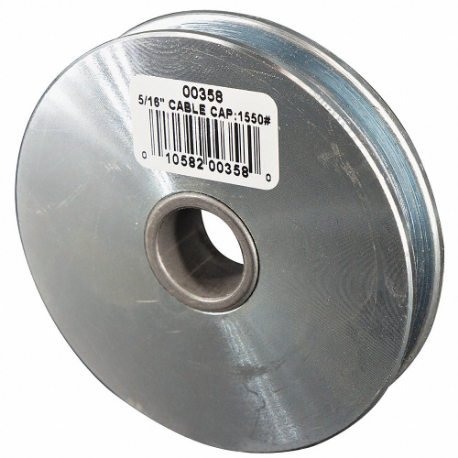

| L | 00358-C | 5/16" | Wire Rope | 3 1/2" | Steel | Zinc Plated | 1550 lbs. | Center Bore | Sleeve | €39.40 | |
| M | RZ1705 | 9/16" | Wire Rope | 3" | Thermoplastic | Powder Coated | 3300 lbs. | Shackle | Sleeve | €245.96 | |
| N | RF66100 | 9/16" | Fibrous Rope | 2 3/4" | Thermoplastic | Plain | 2430 lbs. | Shackle | Sleeve | €79.15 | |
| O | RF74100AW | 9/16" | Wire Rope | 3" | Aluminum | Anodized | 3300 lbs. | Shackle | Ball | €325.00 |
