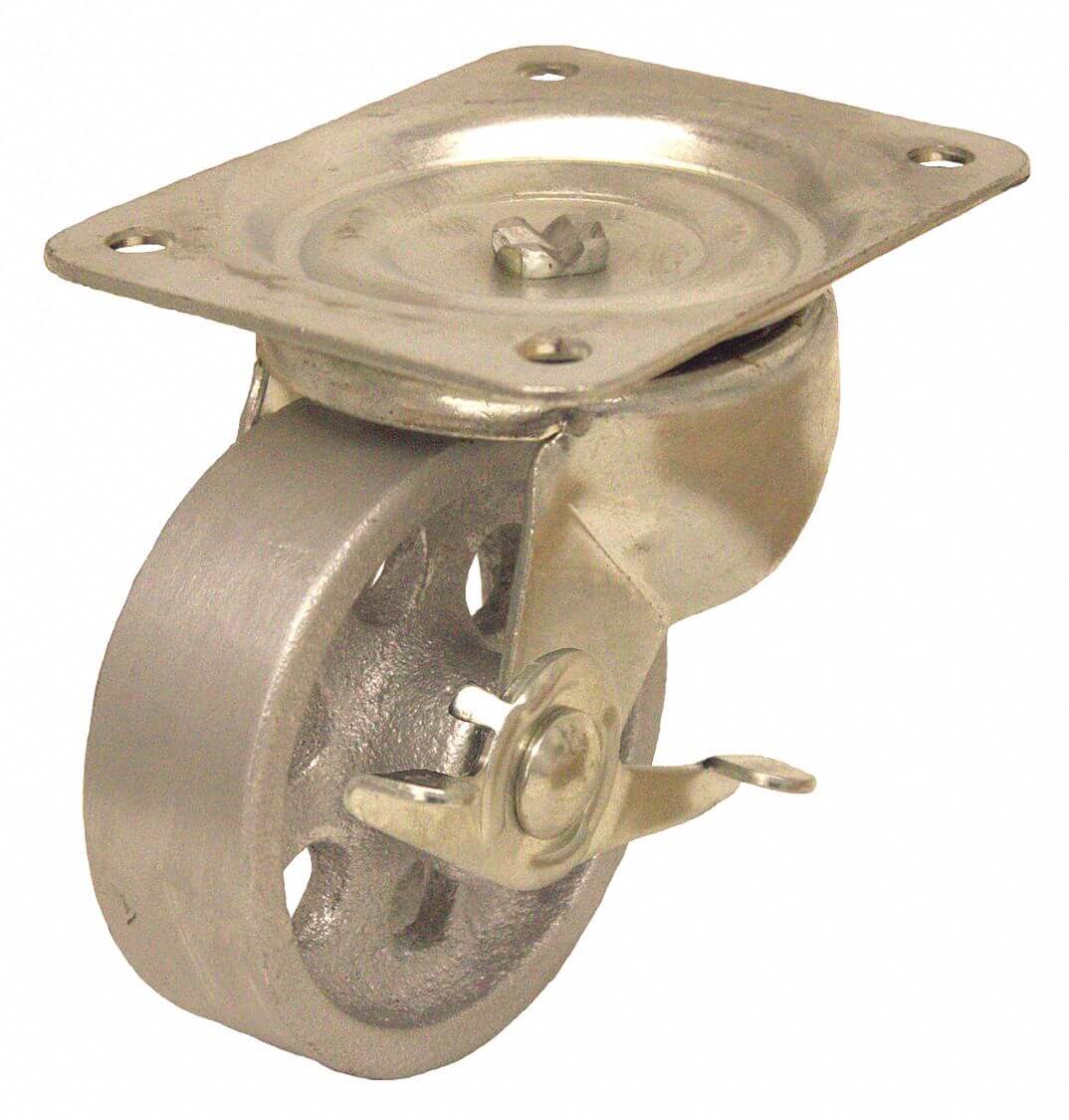

GRAINGER P2S-C040G-P-SB Standard Plate Caster, Swivel, Iron, 250 Lbs. Load Rating, 4 Inch Wheel Dia.
Get it by Friday, Aug 28
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€42.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Bakery Racks, Furniture Dollies, Laundry Carts |
| Bearing Type | Plain |
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Silver |
| Core Material | Cast Iron |
| Features | Pull Forces, Reduced Push |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hardness | 145 BHN |
| Hole Pattern | D |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 4" |
| Mounting Height | 5" |
| Mounting Plate | 4" x 5.125" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 4" x 5 1/8" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 5 1/8" ( D ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. | 0°F to +800°F , Up to 800°F |
| Outside Bolt Hole Spacing | 3" x 4" |
| Raceway Type | Single Ball |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 3 5/8" |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Color | Silver |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 4" |
| Wheel Material | Iron |
| Wheel Width | 1 3/8" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 145 BHN , Extra Hard |
| Wheel/tread Material | Iron |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Country of Origin | China |
Product Variants
| Product | Model | Outside Bolt Hole Spacing | Wheel Dia. | Inside Bolt Hole Spacing | Mounting Height | Wheel Width | Load Rating | Wheel Bearing Type | Wheel/tread Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDP-G-23 | 3 3/8" x 5 1/4" | 6" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | 1 | €342.25 | |
 |
CDP-G-24 | 3 3/8" x 5 1/4" | 6" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | 1 | €250.93 | |
 |
CDP-G-31 | 3 3/8" x 5 1/4" | 8" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €252.72 | |
 |
CDP-G-32 | 3 3/8" x 5 1/4" | 8" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €182.15 | |
 |
S-526-D-BS-SS | 2 5/8" x 3 5/8" | 6" | 3" x 3" | - | 2" | - | Roller | Polyurethane | 1 | €246.95 | |
 |
CDP-G-33 | 3" x 3" | 8" | 2 5/8" x 3 5/8" | 9 1/2" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €256.87 | |
 |
65-GTB-0620-R | 2 5/8" x 3 5/8" | 6" | 2 5/8" x 3" | 7 1/2" | 2" | 1500 lbs. | Precision Ball | Elastomer | 1 | €98.74 |
