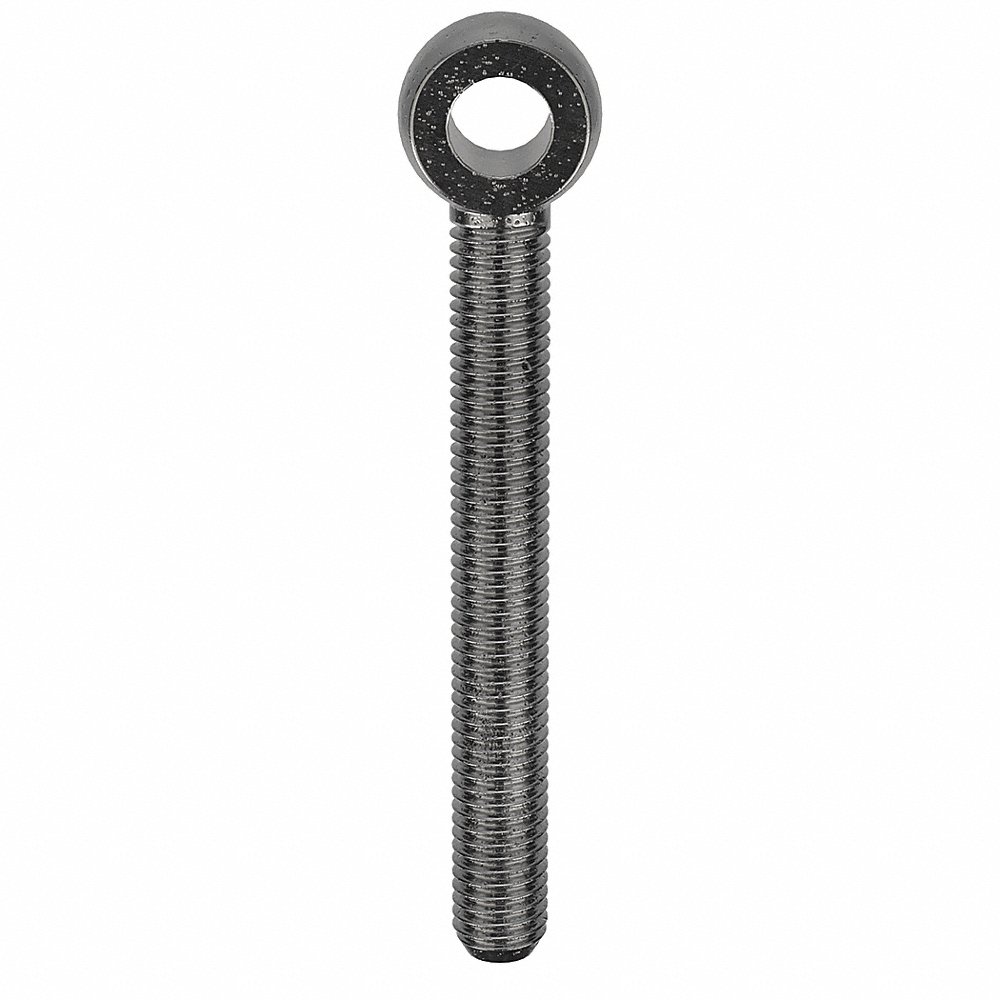

GRAINGER M16180.100.0090 Eye Bolt, M10x1.5 Thread Size, Steel, 90mm Lg. From Ream Center, 26mm Thread Lg.
Item: AH7VNWModel: M16180.100.0090Cross Ref: 38DJ81
7 In Stock
Ships within 2 days via
10.00% off
€241.97 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eye Bolt |
| Class | Class 4.6 |
| Eye Inside Dia. | 10 mm |
| Eye Outside Dia. | 20 mm |
| Eye Thickness | 12 mm |
| Finish | Black Oxide |
| Hole Center-to-end Length | 90 mm |
| Length From Ream Center | 90.0mm |
| Length From Ream Center | 90 mm |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Class 4.6 |
| Material Quality Standards | Din 444 |
| Rod End Standards | Din 444 |
| Shank Diameter | 10 mm |
| Shank Type | External Threaded |
| Shoulder Style | Without Shoulder |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Length | 26 mm |
| Thread Size | M10 x 1.5 |
| Thread Style | Partially Threaded |
| Thread Type | Metric Coarse |
| Type | Fixed Rod End |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Eye Outside Dia. | Length From Ream Center | Thread Length | Eye Thickness | Grade | Class | Shoulder Style | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Z0040 | 1/4"-20 | 1/2" | 2" | 3/4" | 9/32" | - | - | Without Shoulder | 1 | €38.34 | |
 |
Z0041 | 3/8"-16 | 3/4" | 3" | 1" | 7/16" | - | - | Without Shoulder | 1 | €49.06 | |
 |
Z0042 | 1/2"-13 | 1" | 3 3/4" | 1" | 9/16" | - | - | Without Shoulder | 1 | €60.42 | |
 |
Z0043 | 1/2"-13 | 1" | 4" | 1" | 9/16" | - | - | Without Shoulder | 1 | €53.98 | |
|
Z0044 | 5/8"-11 | 1 1/4" | 4 1/2" | 1" | 11/16" | - | - | Without Shoulder | 1 | €89.07 | |
|
Z0046 | 5/8"-11 | 1 1/4" | 6" | 1" | 11/16" | - | - | Without Shoulder | 1 | €109.46 | |
 |
Z0047 | 3/4"-10 | 1 1/2" | 4 1/2" | 1" | 13/16" | - | - | Without Shoulder | 1 | €122.39 |
