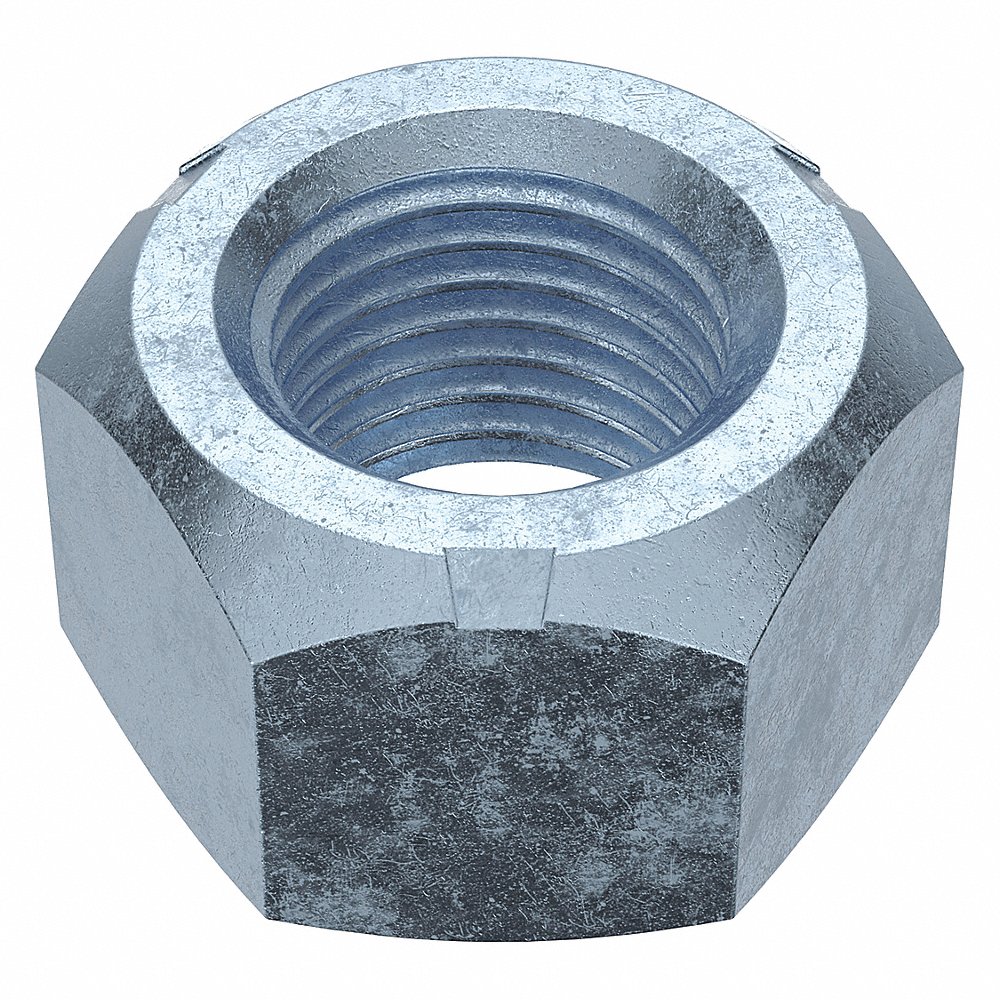

GRAINGER M12912.140.0150 Locknut, M14x1.5 Thread Size, Top Lock Distorted Thread, 22 mm Hex Wd., Zn Plated
Item: AH7VKZModel: M12912.140.0150Cross Ref: 38DJ15
7 In Stock
Ships within 2 days via
10.00% off
€73.61 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lock Nut |
| Class | Class 8 |
| Dimensional Standards | D980V |
| Finish | Zinc Plated |
| Hex Height | 14 mm |
| Hex Type | Standard Hex Top Lock |
| Hex Width | 22 mm |
| Lock Type | Top Lock Distorted Thread |
| Material | Steel |
| Material Grade/class | Class 8 |
| Nut Height | 14 mm |
| Nut Type | Top Lock |
| Nut Type | Top Lock Distorted Thread |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M14 x 1.5 |
| Thread Type | Fine |
| Type | Standard Hex Top Lock |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Hex Width | Hex Height | Nut Height | Hardness | Temp. Range | Hex Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M12858.040.0001 | M4 x 0.7 | 7 mm | 5 mm | 5 mm | Rockwell 30 | -58°F to +302°F | Standard Hex Top Lock | 100 | €31.74 | |
 |
M12858.050.0001 | M5 x 0.8 | 8 mm | 5.09375 mm | 5.1 mm | Rockwell 30 | -58°F to +302°F | Standard Hex Top Lock | 100 | €8.33 | |
|
M12858.060.0001 | M6 x 1 | 10 mm | 6 mm | 6 mm | Rockwell 30 | -58°F to +302°F | Standard Hex Top Lock | 100 | €10.39 | |
|
M12858.080.0001 | M8 x 1.25 | 13 mm | 8 mm | 8 mm | Rockwell 30 | -58°F to +302°F | Standard Hex Top Lock | 100 | €27.99 | |
 |
M12858.100.0001 | M10 x 1.5 | 17 mm | 10 mm | 10 mm | Rockwell 30 | -58°F to +302°F | Standard Hex Top Lock | 100 | €36.03 | |
|
M12858.120.0001 | M12 x 1.75 | 19 mm | 12 mm | 12 mm | Rockwell 30 | -58°F to +302°F | Standard Hex Top Lock | 50 | €20.92 | |
|
M12858.140.0001 | M14 x 2 | 22 mm | 14 mm | 14 mm | Rockwell 30 | -58°F to +302°F | Standard Hex Top Lock | 50 | €76.76 |
