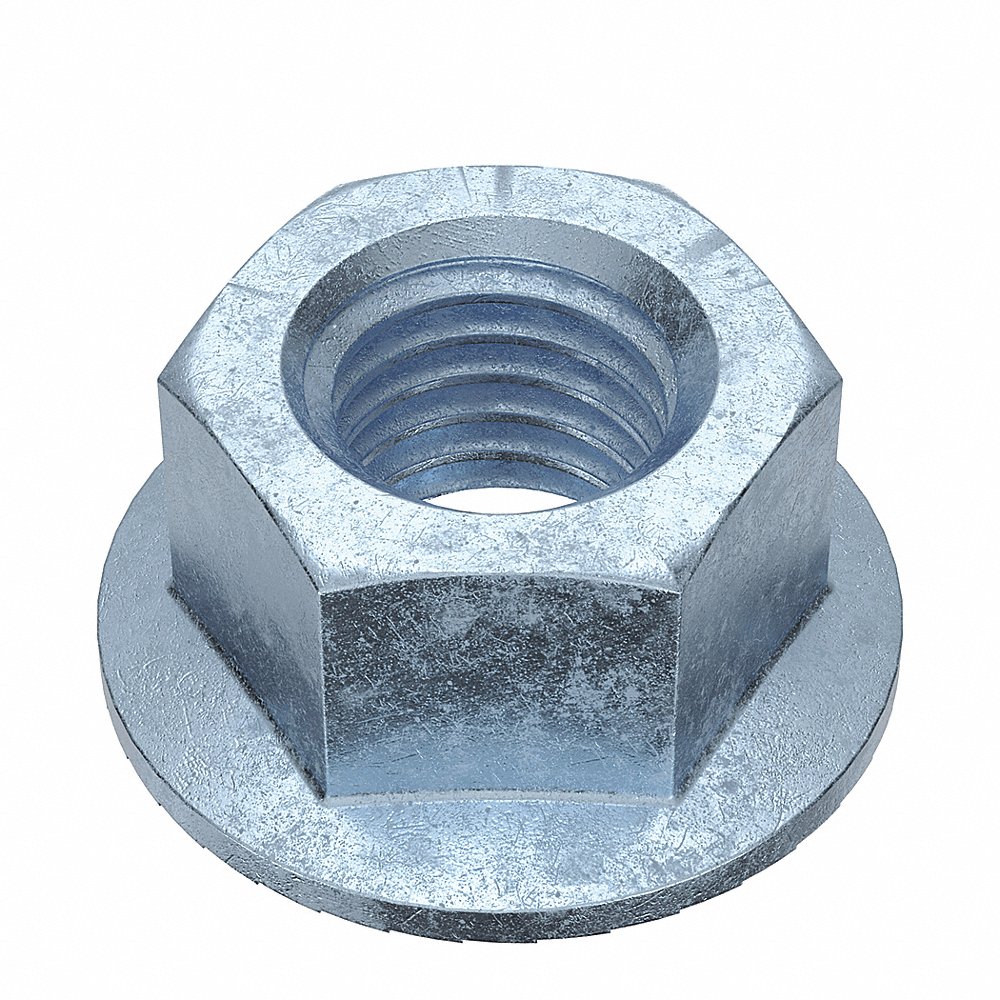

GRAINGER M11610.140.0001 Locknut, M14x2 Thread Size, Serrated, 21 mm Hex Wd., Flange, Zn Plated, Class 8
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€58.43 /pkg. of 50
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lock Nut |
| Class | Class 8 |
| Dimensional Standards | D6923 |
| Finish | Zinc Plated |
| Hex Height | 14 mm |
| Hex Type | Flange Hex |
| Hex Width | 21 mm |
| Lock Type | Serrated |
| Material | Steel |
| Material Grade/class | Class 8 |
| Nut Height | 14 mm |
| Nut Type | Tooth Washer Lock Nut |
| Nut Type | Serrated |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M14 x 2 |
| Thread Type | Metric |
| Type | Flange |
| Washer Outside Dia. | 29.9 mm |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Hex Width | Hex Height | Nut Height | Washer Outside Dia. | Hex Type | Nut Type | Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M11610.040.0001 | M4 x 0.7 | 7 mm | 4.5 mm | 4.5 mm | 9.6 mm | Flange Hex | Serrated | Flange | 100 | €8.21 | |
 |
M11610.050.0001 | M5 x 0.8 | 8 mm | 5 mm | 5 mm | 11.8 mm | Flange Hex | Serrated | Flange | 100 | €8.06 | |
 |
M11610.060.0001 | M6 x 1 | 10 mm | 6 mm | 6 mm | 14.2 mm | Flange Hex | Serrated | Flange | 100 | €15.19 | |
 |
M11610.080.0001 | M8 x 1.25 | 13 mm | 8 mm | 8 mm | 17.9 mm | Flange Hex | Serrated | Flange | 100 | €23.97 | |
 |
M11610.100.0001 | M10 x 1.5 | 15 mm | 10 mm | 10 mm | 21.8 mm | Flange Hex | Serrated | Flange | 100 | €41.27 | |
 |
M11610.120.0001 | M12 x 1.75 | 18 mm | 12 mm | 12 mm | 26 mm | Flange Hex | Serrated | Flange | 100 | €80.45 | |
 |
M11610.160.0001 | M16 x 2 | 24 mm | 16 mm | 16 mm | 34.5 mm | Flange Hex | Serrated | Flange | 50 | €80.65 |
