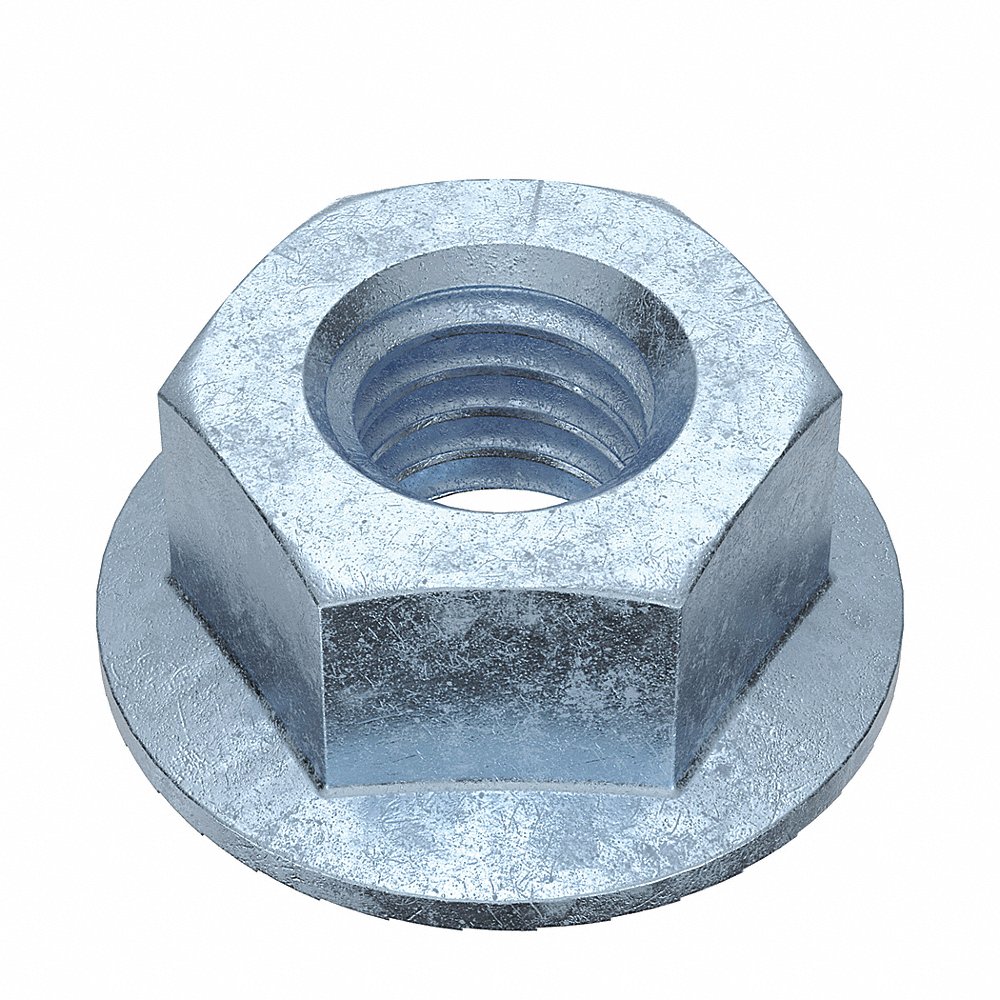

GRAINGER M11610.060.0001 Locknut, M6x1 Thread Size, Serrated, 10 mm Hex Wd., Flange, Zn Plated, Class 8
Item: AH7VJBModel: M11610.060.0001Cross Ref: 38DH70
7 In Stock
Ships within 2 days via
5.00% off
€17.18 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lock Nut |
| Class | Class 8 |
| Dimensional Standards | Din 6923 |
| Finish | Zinc Plated |
| Flange Dia. | 14.2 mm |
| Hex Height | 6 mm |
| Hex Type | Flange Hex |
| Hex Width | 10 mm |
| Lock Type | Serrated |
| Material | Steel |
| Material Grade/class | Class 8 |
| Nut Height | 6 mm |
| Nut Type | Tooth Washer Lock Nut |
| Nut Type | Serrated |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M6 x 1 |
| Thread Type | Metric |
| Type | Flange |
| Washer Outside Dia. | 14.2 mm |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Thread Size | Hex Width | Hex Height | Nut Height | Flange Dia. | Washer Outside Dia. | Hex Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M11610.040.0001 | M4 x 0.7 | 7 mm | 4.5 mm | 4.5 mm | 9.6 mm | 9.6 mm | Flange Hex | 100 | €8.06 | |
 |
M11610.050.0001 | M5 x 0.8 | 8 mm | 5 mm | 5 mm | 11.8 mm | 11.8 mm | Flange Hex | 100 | €7.85 | |
 |
M11610.080.0001 | M8 x 1.25 | 13 mm | 8 mm | 8 mm | - | 17.9 mm | Flange Hex | 100 | €22.98 | |
 |
M11610.100.0001 | M10 x 1.5 | 15 mm | 10 mm | 10 mm | - | 21.8 mm | Flange Hex | 100 | €38.82 | |
 |
M11610.120.0001 | M12 x 1.75 | 18 mm | 12 mm | 12 mm | - | 26 mm | Flange Hex | 100 | €76.40 | |
 |
M11610.140.0001 | M14 x 2 | 21 mm | 14 mm | 14 mm | - | 29.9 mm | Flange Hex | 50 | €60.95 | |
 |
M11610.160.0001 | M16 x 2 | 24 mm | 16 mm | 16 mm | - | 34.5 mm | Flange Hex | 50 | €85.90 |
