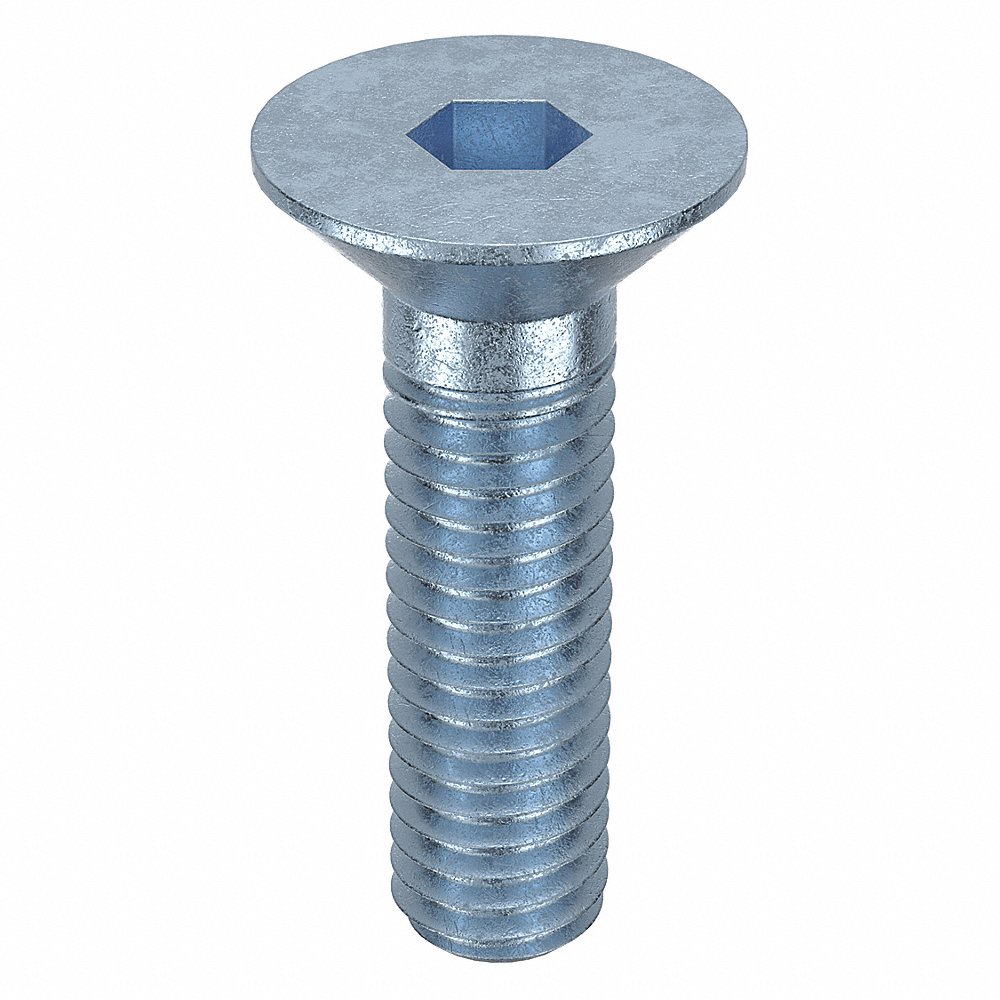

GRAINGER M07470.060.0020 Socket Flat Head Cap Screw, M6x1 Thread Size, Flat, 20 mm Lg., 3.72 mm Head Ht.
Item: AH7UZMModel: M07470.060.0020Cross Ref: 38DF71
7 In Stock
Ships within 2 days via
5.00% off
€18.88 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Flat Head Cap Screw |
| Class | Class 8.8 |
| Combined Material & Grade | Class 8 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | Iso 10642 |
| Display Qty | 100 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 13.44 mm |
| Head Height | 3.72 mm |
| Head Type | Flat |
| Length | 20 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Min. Thread Length | 20 mm |
| Screw Length | 20 mm |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Length | 20 mm |
| Thread Size | M6 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.46 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07470.030.0006 | 6.72 mm | 2 mm | 1.86 mm | Fully Threaded | 6 mm | Class 8 Steel | 6 mm | -58°F to +302°F | 100 | €10.31 | |
 |
M07470.030.0008 | 6.72 mm | 2 mm | 1.86 mm | Fully Threaded | - | - | 8 mm | -58°F to +302°F | 100 | €7.51 | |
 |
M07470.030.0010 | 6.72 mm | 2 mm | 1.86 mm | Fully Threaded | 10 mm | Class 8 Steel | 10 mm | -58°F to +302°F | 100 | €9.22 | |
 |
M07470.030.0012 | 6.72 mm | 2 mm | 1.86 mm | Fully Threaded | 12 mm | Class 8 Steel | 12 mm | -58°F to +302°F | 100 | €8.47 | |
 |
M07470.030.0016 | 6.72 mm | 2 mm | 1.86 mm | Fully Threaded | 16 mm | Class 8 Steel | 16 mm | -58°F to +302°F | 100 | €14.58 | |
 |
M07470.030.0020 | 6.72 mm | 2 mm | 1.86 mm | Fully Threaded | 20 mm | Class 8 Steel | 20 mm | -58°F to +302°F | 100 | €12.38 | |
 |
M07470.030.0025 | 6.72 mm | 2 mm | 1.86 mm | Fully Threaded | 25 mm | Class 8 Steel | 25 mm | -58°F to +302°F | 100 | €18.92 |
