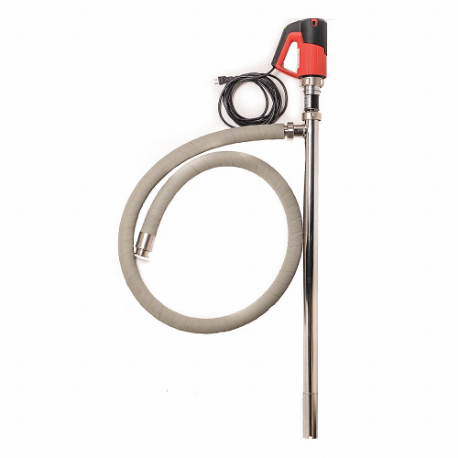

GRAINGER ELEC-GLYKIT Electric Operated Drum Pump, 1 Hp Motor Hp, 55 Gal For Container Size, 110VAC
Get it by Friday, Dec 19
10.00% off
€10,123.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Adapter Connection Type | MNPT |
| Adapter Material | Aluminum |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Compatible Chemicals | Calcium Chloride, Glycerin, Hexane, Sodium Bicarbonate (10%) |
| Cord Length | 72" |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1 1/4" |
| Discharge Tube Outlet Od | 1 1/2" |
| Display Qty | 1 |
| Duty Cycle | Intermittent |
| Explosion Proof | No |
| Features | High Viscosity Food Grade |
| Food Grade | Yes |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Calcium Chloride, Glycerin, Hexane, Sodium Bicarbonate |
| For Use With | Elec-Glykit |
| Frequency | 60 Hz |
| Full Load Amps | 5.2A |
| Height Above Container | 14" |
| Hose Cover Material | PVC |
| Hose Inside Dia. | 1 1/2" |
| Hose Length | 96" |
| Hose Material | PVC |
| Hose Outside Dia. | 1 5/8" |
| Hose Tube Material | PVC |
| Housing Material | Stainless Steel |
| Housing Material - Pumps | Stainless Steel |
| Includes | Barb Fitting, Intake Tube, Motor |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Length | 48 1/2" |
| Max. Flow Rate | 9 GPM |
| Max. Fluid Temp. | 250°F |
| Max. Head | 75 ft. |
| Max. Head Pressure | 20 psi |
| Max. Oil Flow | 9 GPM |
| Max. Outlet Pressure | 150 psi |
| Max. Temp. | 250°F |
| Max. Viscosity | 15000 cPS |
| Media Type | Calcium Chloride, Glycerin, Hexane, Sodium Bicarbonate |
| Metered | No |
| Min. Fluid Temp. | 33°F |
| Min. Temp. | 33°F |
| Motor Enclosure | Odp |
| Motor Enclosure Design | Open Dripproof |
| Motor Hp | 1 hp |
| Motor Speed | 10500 RPM |
| Motor Type | Electric AC |
| Noise Level | 85 dBA |
| Nominal Voltage | 110V AC |
| Not Recommended Chemicals | Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%) |
| Overall Length | 48 1/2" |
| Package Type | Basic Pump With Discharge Hose |
| Phase | 1 |
| Power Source | Electric |
| Pump Connection Inside Dia. | 1 1/2" |
| Pump Connection Outside Dia. | 1 1/2" |
| Pump Connection Type | Hose Barb |
| Pump Package Type | Basic Pump With Discharge Hose |
| Runs Dry | No |
| Seal Material | PTFE |
| Self Priming | Yes |
| Suction Tube Inside Dia. | 2" |
| Suction Tube Length | 39" |
| Suction Tube Material | Stainless Steel |
| Suction Tube Od | 1 7/8" |
| Suction Tube Outside Dia. | 1 59/64" |
| Thermal Protection | Yes |
| Variable Speed | No |
| Voltage Rating | 120V AC |
| Wetted Material | Stainless Steel, Carbon, Ceramic Oxide, PTFE |
| Wetted Material Grade | Grade 316 |
| Wetted Materials | 316 Stainless Steel, Carbon, Ceramic Oxide, PTFE |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
