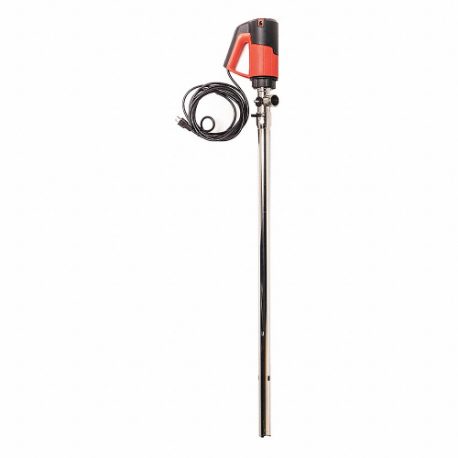

GRAINGER ACT-ELEMXRSS Electric Operated Drum Pump, 1 Hp Motor Hp, 55 Gal For Container Size, 110VAC
Get it by Tuesday, Aug 18
5.00% off
€4,253.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Adapter Connection Type | MNPT |
| Adapter Material | Polyethylene |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Compatible Chemicals | Ammonia (Liquids), Calcium Chloride, Ethyl (Ethanol), Glycerin, Hexane, Methyl (Methanol), Sodium Bicarbonate (10%) |
| Cord Length | 72" |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1 1/4" |
| Discharge Tube Outside Dia. | 1 1/2" |
| Display Qty | 1 |
| Duty Cycle | Intermittent |
| Explosion Proof | No |
| Features | All In One Mixer For Chemicals That Need Blending Or Have Sediments |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Ammonia, Calcium Chloride, Ethanol, Glycerin, Hexane, Methanol, Sodium Bicarbonate |
| For Use With | Act-Elemxrss |
| Frequency | 60 Hz |
| Full Load Amps | 5.2A |
| Height Above Container | 14" |
| Housing Material | Stainless Steel |
| Housing Material-pumps | Stainless Steel |
| Included | Mixer, Motor, Pump Tube |
| Included Bung Adapter | Yes |
| Included Discharge Hose | No |
| Included Nozzle | No |
| Included Suction Tube | Yes |
| Length | 48 1/2" |
| Max. Flow Rate | 57 GPM |
| Max. Fluid Temp. | 250°F |
| Max. Head | 31 ft. |
| Max. Head Pressure | 20 psi |
| Max. Oil Flow | 30 GPM |
| Max. Temp. | 250°F |
| Max. Viscosity | 600 cPS |
| Media Type | Ammonia, Calcium Chloride, Ethanol, Glycerin, Hexane, Methanol, Sodium Bicarbonate |
| Metered | No |
| Min. Fluid Temp. | 33°F |
| Min. Temp. | 33°F |
| Motor Enclosure | Odp |
| Motor Enclosure Design | Open Dripproof |
| Motor Hp | 1 hp |
| Motor Speed | 10500 RPM |
| Motor Type | Electric AC |
| Noise Level | 85 dBA |
| Nominal Voltage | 110V AC |
| Overall Length | 48 1/2" |
| Phase | 1 |
| Power Source | Electric |
| Pump Connection Inside Dia. | 1 1/2" |
| Pump Connection Outside Dia. | 1 1/2" |
| Pump Connection Type | Hose Barb |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Runs Dry | No |
| Seal Material | PTFE |
| Self Priming | Yes |
| Suction Tube Inside Dia. | 1 5/8" |
| Suction Tube Length | 39" |
| Suction Tube Material | Stainless Steel |
| Suction Tube Outside Dia. | 1 23/64" , 1 3/8" |
| Thermal Protection | Yes |
| Variable Speed | No |
| Voltage | 120V AC |
| Wetted Material | 316 Stainless Steel, Carbon, Tefzel(R), Ceramic Oxide |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Flow Rate | For Container Size | Power Source | Discharge Tube Outlet Outside Dia. | Max. Viscosity | For Container Type | Included Bung Adapter | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HVDP & M58H | 8.5 GPM | 55 gal. | Electric | 1 7/8" | 20000 cPS | Drum | No | 300 ft. | €11,401.54 | |
 |
ACTHD15ESS | 10 gal./stroke | 55 gal. | - | - | 5000 cPS | Drum | - | - | €2,490.50 | |
 |
ACT-17ESS | 20 gal./stroke | 55 gal. | - | - | 1000 cPS | Drum | - | - | €2,216.40 | |
 |
490SSTSP | 6 gal./stroke | 55 gal. | Hand Operated | - | 2000 cPS | - | - | 16 ft. | €401.83 | |
 |
THP-5-STGRND | 10 oz./stroke | 5 gal. | - | - | 2000 SUS | Drum | Yes | - | €330.42 | |
 |
THP-STGRND | 20 oz./stroke | 55 gal. | - | - | 2000 SUS | Drum | Yes | - | €309.09 | |
 |
HVDP & M66 | 7 GPM | 55 gal. | Air | 2" | - | Drum | No | 300 ft. | €9,859.21 |
