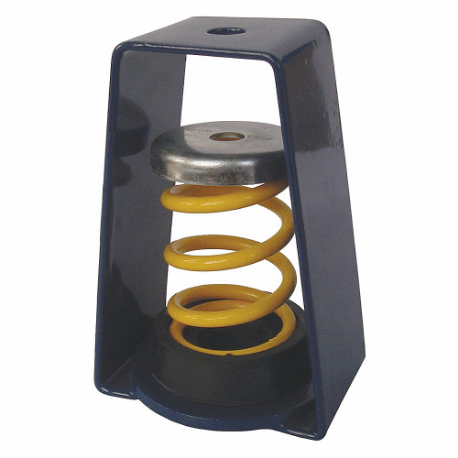

GRAINGER 48PW82 Hanger Mount Vibration Isolator, Spring, 80 to 113 lb Capacity, 1 Inch Max. Deflection
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€45.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hanger Mount Vibration Isolator |
| Bushing Material | Spring |
| Capacity Range | 80 lbs. to 113 lbs. |
| Deflection Range | 0.75" to 1" |
| Height | 4 1/4" |
| Includes Spring | Spring Included |
| Isolator Material | Spring |
| Isolator Type | Spring |
| Load Downward Compression - Maximum | 113 lbf. |
| Lower Rod Penetration | 3 1/2" |
| Max. Deflection | 1" |
| Max. Rod Dia. | 3/8" |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -4°F |
| Overall Depth | 4 1/4" |
| Overall Height | 4 1/4" |
| Overall Width | 2 7/8" |
| Rated Capacity - Maximum | 113 lbs. |
| Rated Capacity - Minimum | 80 lbs. |
| Rated Deflection - Minimum | 0.75" |
| Spring Color | Yellow |
| Width | 2 7/8" |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Deflection Range | Max. Rod Dia. | Height | Capacity Range | Color Mark | Spring Color | Max. Deflection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
48PW76 | 0.1" to 0.2" | 3/8" | 2.406" | 30 lbs. to 75 lbs. | White | - | 1/5" | €16.31 | |
 |
48PW75 | 0.05" to 0.2" | 3/8" | 2.406" | 10 lbs. to 35 lbs. | Green | - | 1/5" | €17.63 | |
 |
48PW80 | 0.2" to 0.4" | 3/4" | 4 1/2" | 115 lbs. to 235 lbs. | Red | - | 2/5" | €47.41 | |
 |
48PW78 | 0.18" to 0.35" | 1/2" | 2 3/4" | - | Black | - | 0.35" | €29.57 | |
|
48PW77 | 0.18" to 0.35" | 1/2" | 2 3/4" | 40 lbs. to 75 lbs. | Green | - | 0.35" | €28.51 | |
 |
48PW79 | 0.18" to 0.35" | 1/2" | 2 3/4" | 60 lbs. to 125 lbs. | Red | - | 0.35" | €28.82 | |
 |
48PW83 | 0.75" to 1" | 3/8" | 4 1/4" | 130 lbs. to 175 lbs. | - | Silver | 1" | €54.16 |
