GRAINGER Hanger Mount Vibration Isolators
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Deflection Range | Max. Rod Dia. | Height | Capacity Range | Color Mark | Spring Color | Max. Deflection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 48PW75 | 0.05" to 0.2" | 3/8" | 2.406" | 10 lbs. to 35 lbs. | Green | - | 1/5" | €17.63 | |
| B | 48PW76 | 0.1" to 0.2" | 3/8" | 2.406" | 30 lbs. to 75 lbs. | White | - | 1/5" | €16.31 | |
| C | 48PW80 | 0.2" to 0.4" | 3/4" | 4 1/2" | 115 lbs. to 235 lbs. | Red | - | 2/5" | €47.41 | |
| D | 48PW78 | 0.18" to 0.35" | 1/2" | 2 3/4" | - | Black | - | 0.35" | €29.57 | |
| A | 48PW77 | 0.18" to 0.35" | 1/2" | 2 3/4" | 40 lbs. to 75 lbs. | Green | - | 0.35" | €28.51 | |
| E | 48PW79 | 0.18" to 0.35" | 1/2" | 2 3/4" | 60 lbs. to 125 lbs. | Red | - | 0.35" | €28.82 | |
| F | 48PW82 | 0.75" to 1" | 3/8" | 4 1/4" | 80 lbs. to 113 lbs. | - | Yellow | 1" | €50.63 | |
| G | 48PW83 | 0.75" to 1" | 3/8" | 4 1/4" | 130 lbs. to 175 lbs. | - | Silver | 1" | €54.16 | |
| H | 48PW85 | 0.75" to 1" | 3/8" | 4 1/4" | 162 lbs. to 210 lbs. | - | Blue | 1" | €53.47 | |
| F | 48PW86 | 0.75" to 1" | 5/8" | 5 3/4" | 230 lbs. to 310 lbs. | - | Yellow | 1" | €71.53 | |
| F | 48PW84 | 0.75" to 1" | 5/8" | 5 3/4" | 300 lbs. to 400 lbs. | - | Green | 1" | €72.68 | |

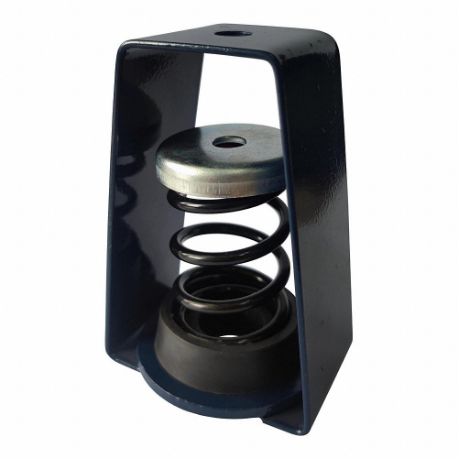

| I | 48PW81 | 0.75" to 1.02" | 3/8" | 4 1/4" | 55 lbs. to 76 lbs. | - | Black | 1.02" | €50.63 |
