GRAINGER 45-420 Door Hinge, 2 Holes Per Leaf, 2 Inch Door Leaf Ht, 2 7/8 Inch Door Leaf Width, Rounded
Item: CP9CMZModel: 45-420Cross Ref: 451K02
7 In Stock
Ships within 2 days via
10.00% off
€26.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Hinge |
| Bearing Type | Adjustable |
| Corner Type | Round |
| Corners | Round |
| Door Leaf Height | 2" |
| Door Leaf Thickness | 1.937" |
| Door Leaf Width | 2 7/8" |
| Features | Cover Cap |
| Finish | Bright Nickel Plated, Clear Coated |
| Frame Leaf Height | 2 1/4" |
| Frame Leaf Thickness | 1/2" |
| Frame Leaf Width | 1 3/8" |
| Hardware | Included |
| Hinge Number | #1 Heavy Duty |
| Holes | With |
| Holes Per Leaf | 2 |
| Includes Hardware | Hardware Included |
| Ligature Resistant | No |
| Load Capacity | 10 lbs. |
| Material | Steel |
| Mounting | Concealed |
| Mounting Style | Full Surface |
| Orientation | Non Handed |
| Overall Height | 2 1/4" |
| Overall Width | 2 3/4" |
| Pin Dia. | 0.312" |
| Pin Diameter | 5/16" |
| Pin Material | Steel |
| Pin Type | Removable |
| Range Of Motion | 110° |
| Range Of Motion - Maximum | 110° |
| Removable Pin | Yes |
| Required Door Thickness | 19/32" to 1 17/64" |
| Standards | Ansi/Bhma |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting | Frame Leaf Width | Bearing Type | Frame Leaf Thickness | Holes Per Leaf | Load Capacity | Hardware | Range Of Motion | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

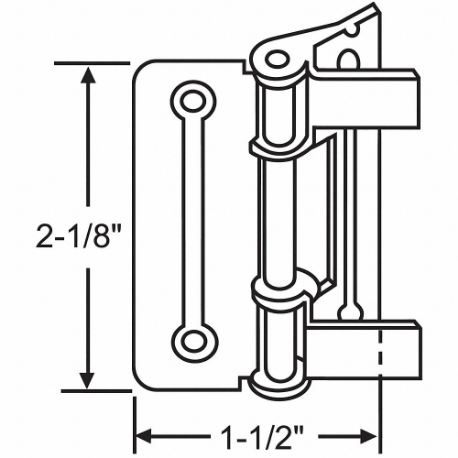

8-236 | Full Surface | 1 1/2" | Plain | 0.06" | 2 | 30 lbs. | Included | 160° | €4.43 | |
 |
8-230 | Full Surface | 2" | Plain | 0.06" | 2 | 30 lbs. | Included | 160° | €7.46 | |
 |

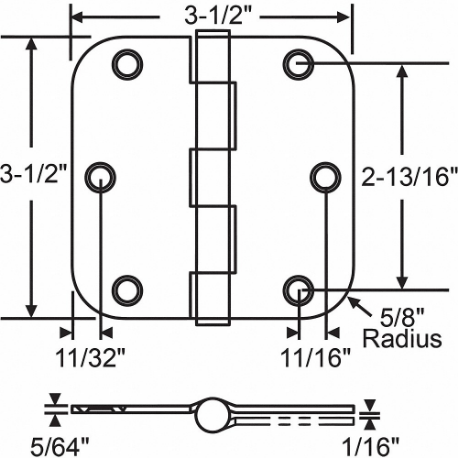

56-262SNK | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €5.55 | |
 |

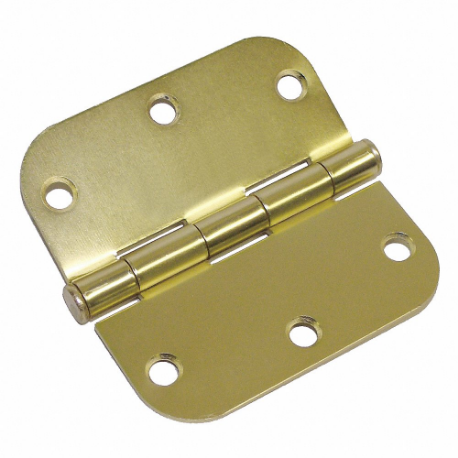

56-262SBRS | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €7.48 | |
 |

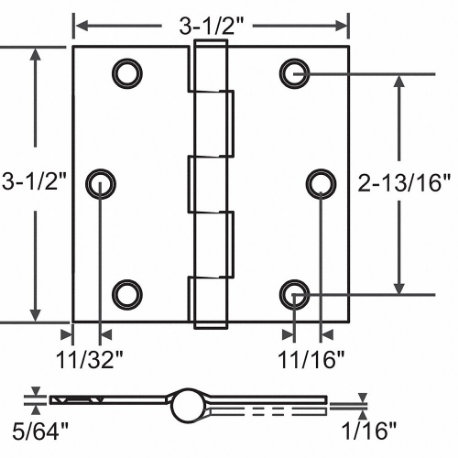

56-263SBRS | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €9.41 | |
 |

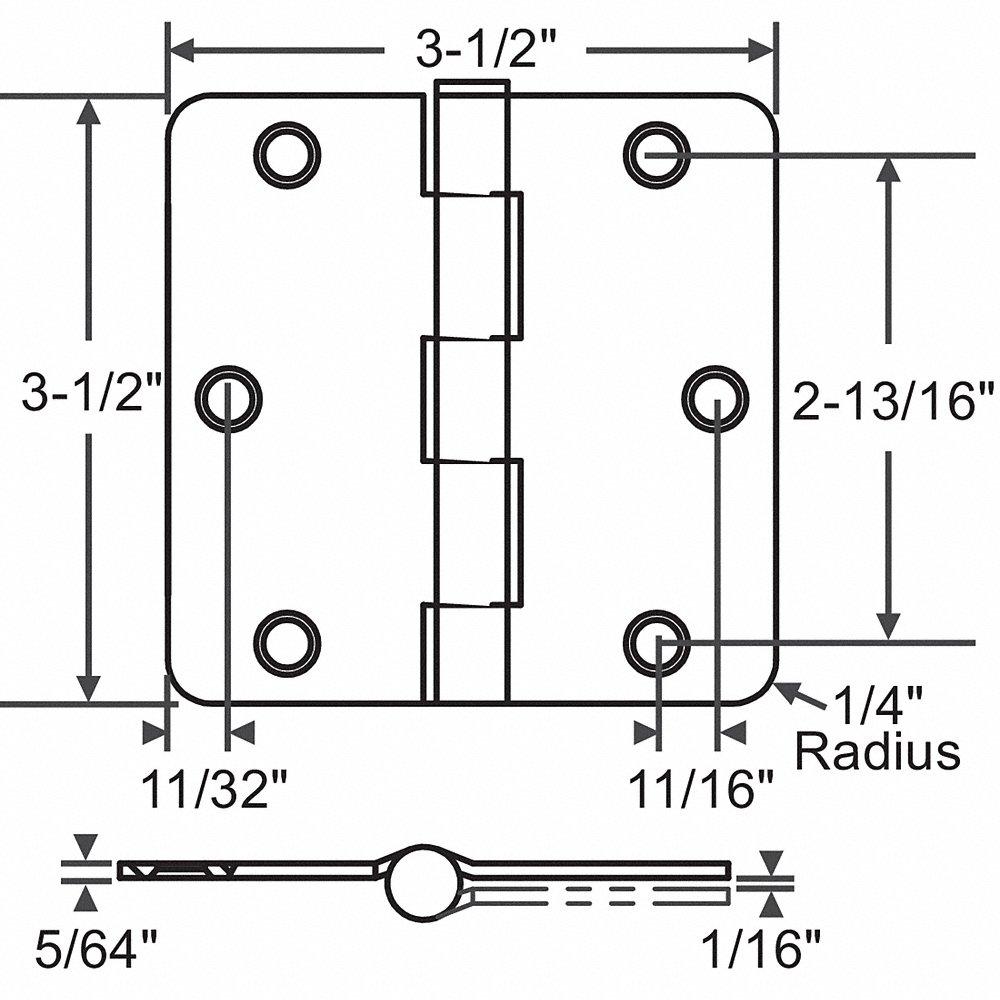

56-261SBRS | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €9.04 | |
|
56-263SNK | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €12.67 |
