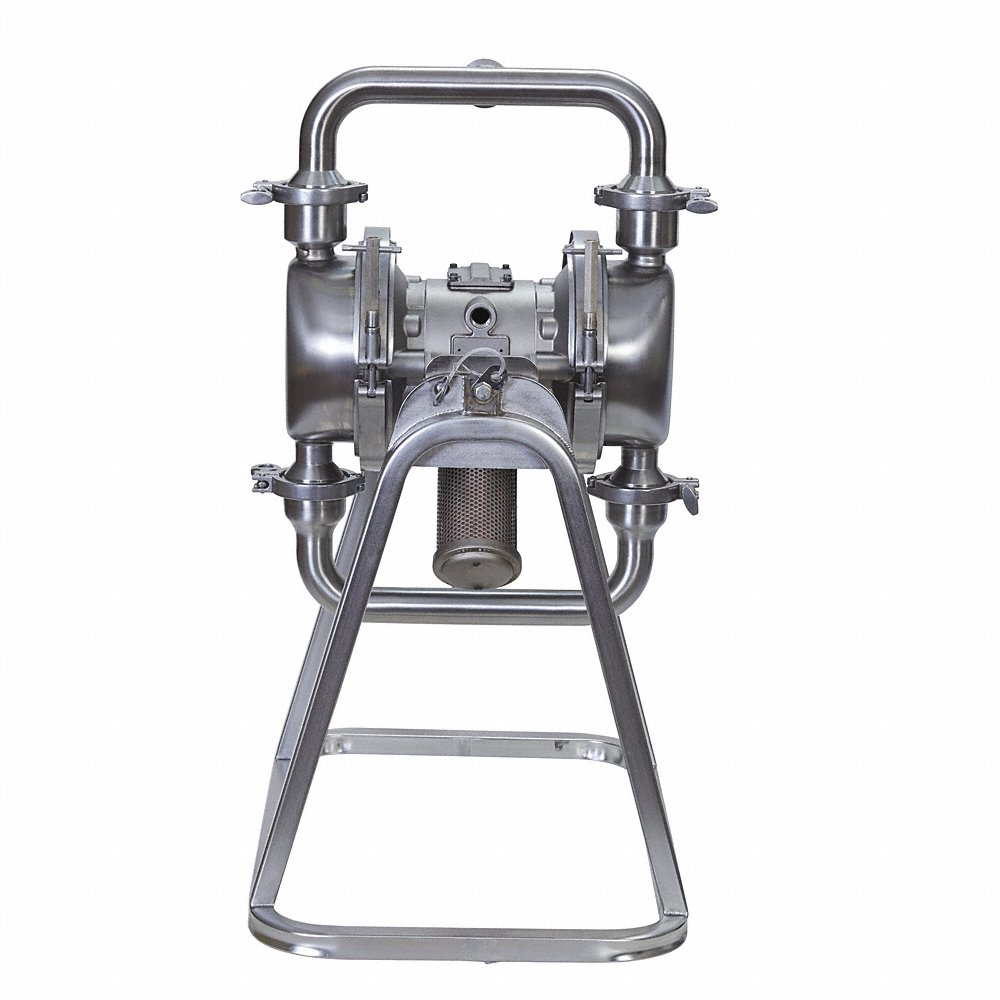

GRACO SP15.0103 AODD PUMP, Air, Oils, Stainless Steel, Single Port, 105 gpm Max. Flow Rate
Get it by Friday, Aug 21
€27,368.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Air Intake Connection Size | 1/2" |
| Check Seat Material | Stainless Steel |
| Duty Cycle | Continuous |
| Flow Rate @ 100 Psi | 115 GPM |
| Flow Rate @ 120 Psi | 105 GPM |
| Flow Rate @ 40 Psi | 80 GPM |
| Flow Rate @ 70 Psi | 110 GPM |
| For Use With Potable Systems | Yes |
| Included | Diaphragms |
| Manifold Connection | Single Port |
| Max. Air Consumption | 150 SCFM |
| Max. Air Intake Pressure | 100 psi |
| Max. Feet Of Head | 276.9 ft. |
| Max. Flow Rate | 105 GPM |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 1/2" |
| Media Discharge Connection Size | 1 1/2" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Bottom |
| Media Intake Connection Size | 1 1/2" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Top |
| Overall Height | 32 3/5" |
| Overall Length | 19 1/2" |
| Overall Width | 10.1" |
| Pump Assembly Type | Clamp |
| Pump Operation Type | Air |
| Series | 1590 |
| Series Family | Saniforce |
| Wetted Housing Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 59.85 |
| Ship height (cm) | 127 |
| Ship length (cm) | 83.82 |
| Ship width (cm) | 71.12 |
| Country of Origin | US |
