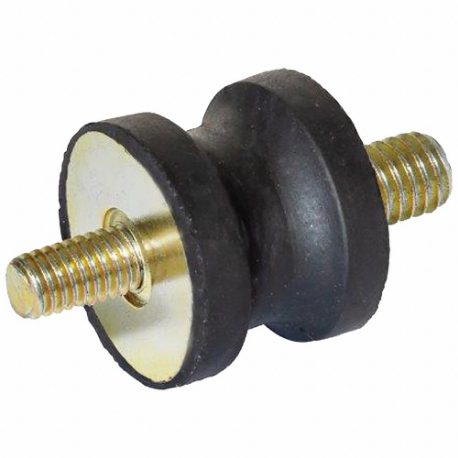

J.W. WINCO 356.1-15-15-12-8-55 Vibration Isolation Mount, Hourglass, Stud, #8-32, Steel, 0.59 Inch Dia, 0.59 Inch Height
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mount |
| Body Height | 0.59" |
| Durometer | 55A |
| Height | 0.59" |
| Isolator Body Material | Natural Rubber |
| Material | Natural Rubber |
| Max Load Downward Compression | 36.64 lbf. |
| Max Load Sideways Shear | 248 lbf. |
| Max. Load Downward Compression | 36 lbf. |
| Max. Load Sideways Shear | 246 lbf. |
| Max. Operating Temp. | 176°F |
| Mounting | Compressor, Pump |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -40°F |
| Overall Dia. | 0.59" |
| Overall Diameter | 0.59" |
| Resistant To | Abrasion, Wear |
| Shape | Hourglass |
| Stud Length | 0.51" |
| Stud Or Tap Material | Steel |
| Taper Diameter | 0.47" |
| Thread Material | Zinc Plated Steel |
| Thread Size | #8-32 |
| Type | Two Threaded Studs |
| Vibration Isolator Style | Male x Male |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Shape | Thread Size | Max. Load Downward Compression | Max. Load Sideways Shear | Overall Dia. | Stud Length | Tap Depth | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 451.1-62-32-1/2-55 | Cylindrical | 1/2"-13 | 762 lbf. | 2547 lbf. | 2 11/25" | 0.87" | - | Compressor, Motor, Pump | €63.06 | |
| 451.1-79-57-1/2-55 | Cylindrical | 1/2"-13 | 1574 lbf. | 2815 lbf. | 3.11" | 1.26" | - | Compressor, Motor, Pump | €148.72 | |
| 451.1-19-19-1/4-55 | Cylindrical | 1/4"-20 | 58 lbf. | 289 lbf. | 3/4" | 0.51" | - | Compressor, Motor, Pump | €17.48 | |
| 451.1-25-25-1/4-55 | Cylindrical | 1/4"-20 | 168 lbf. | 667 lbf. | 0.98" | 0.51" | - | Compressor, Motor, Pump | €19.32 | |
| 451.1-25-13-1/4-55 | Cylindrical | 1/4"-20 | 154 lbf. | 1030 lbf. | 0.98" | 0.51" | - | Compressor, Motor, Pump | €18.08 | |
| 451.1-25-19-1/4-55 | Cylindrical | 1/4"-20 | 183 lbf. | 1223 lbf. | 0.98" | 0.63" | - | Compressor, Motor, Pump | €21.08 | |
| 451.1-32-19-1/4-55 | Cylindrical | 1/4"-20 | 283 lbf. | 1892 lbf. | 1.26" | 0.51" | - | Compressor, Motor, Pump | €29.00 |
