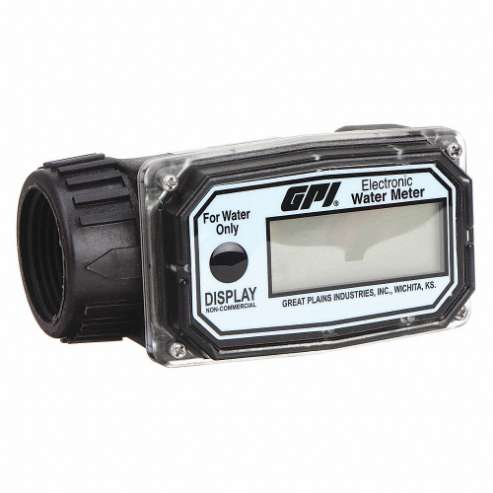

GPI 01N31LM 113255-5 Water Meter, Turbine, 10 To 100 lpm Flow Range, 1 FNPT
Item: AB4JGWModel: 01N31LMCross Ref: 1YEF9 / 113255-5
7 In Stock
Ships within 2 days via
5.00% off
€390.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flowmeter |
| Accuracy | +/-5% |
| Accuracy (% Of Reading) | -5% to +5% |
| Compatible Flow Material | Water |
| Connection Size | 1" |
| Connection Type | FNPT , NPT |
| Display Type | Digital |
| Flow | 3-30 GPM |
| Flow Material | Water |
| Flowmeter Type | Turbine |
| Fluid Temp. | +14°F to +130°F |
| Fluid Temp. Range | 14 To 130 Deg. F |
| Grade | Grade 316 |
| Housing Material | Nylon |
| Included Totalizer | Yes |
| Inlet/outlet Connection | 1" |
| Inlet/outlet Connection Type | 1" |
| Max. Flow Rate | 30 GPM |
| Max. Media Temp. | 130°F |
| Max. Operating Pressure | 10.3 Bar |
| Max. Temp. | 130°F |
| Max. Viscosity | 40 SUS |
| Media Temp. | 14°F to 130°F |
| Media Type | Water |
| Meter Housing Material | Nylon |
| Min. Flow Rate | 3 GPM |
| Min. Media Temp. | 14°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| No. Of Batteries | 2 |
| Operating Temp. | 14°F to 130°F |
| Output Amps | 4-20 mA |
| Output Type | 4-20 mA |
| Overall Height | 0.9" |
| Overall Length | 4" |
| Power Source | AAA Batteries |
| Pressure Rating | 150 psi |
| Product Datasheet | gpi-01a31gm.pdf |
| Product Type | Flow Meter |
| Repeatability | 0.50% |
| Repeatability | -0.5% to +0.5% |
| Rotor Material | Nylon |
| Screen Mesh Size | 55 mesh |
| Series | 01N Series |
| Shaft Material | Tungsten Carbide |
| Standards | Ce Certified |
| Strainer | 55 Mesh |
| Technology | Turbine |
| Termination | Not Listed |
| Termination Type | Not Listed |
| Unit Of Measure | Liters |
| Wetted Material | Ceramic, Nylon, Stainless Steel, Tungsten Carbide , Stainless Steel, Ceramic, Ferrite, Nylon, Tungsten Carbide |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.29 |
| HS code | 9026102040 |
| Country of Origin | US |
Product Details:
- CE-approved water flow indicator with rugged nylon housing for measuring the speed of water flowing through a pipe; ideal for engine oil and transmission fluids
- Equipped with magnetic sensors and a four-digit LCD screen that displays the result with up to +/-5 accuracy
- Can provide cumulative and batch totals
- Manual and Auto On/Off mechanisms
- In-line horizontal and vertical mounting; mount at the nozzle for utmost convenience
Documentation:
