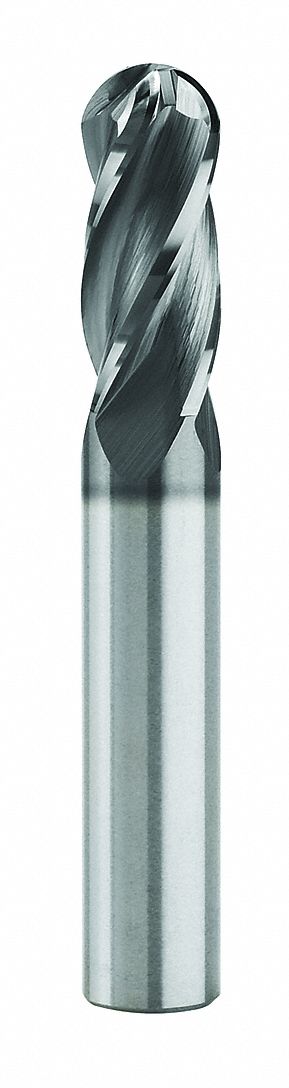

GORILLA MILL CEM10B2 70207 Carbide End Mill, 4 Inch Length, 2 Flute, Ballnose
Item: AG6KMBModel: CEM10B2Cross Ref: 36NM05 / 70207
7 In Stock
Ships within 2 days via
€257.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Carbide End Mill |
| Chip Breaker | No |
| Coolant Fed | Non Coolant Through |
| Cut Dia. Tolerance | -0.001" to 0" |
| Cutting Direction | Right Hand |
| Cutting Length | 1 1/2" |
| Cutting Type | Center |
| D1 Cutting Dia. | 1" |
| D2 Shank Dia. | 1" |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End/corner Shape | Ballnose |
| Finish | Uncoated |
| Finish-machining | Bright (Uncoated) |
| Grade | Grade C2 |
| Helix Angle | 30° |
| Length Of Cut Tolerance | 0.025" to 0.05" |
| List Number | CEM10B2 |
| Machining Methods | Profiling, Full Slotting, Pocketing, High-velocity |
| Material | Carbide |
| Material Grade-machining | Micrograin |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| Milling Dia. | 1" |
| No. Of Flutes | 2 |
| Overall Length | 4" |
| Overall Length Tolerance | -0.05" to +0.05" |
| Performance | Standard |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, N, P, S |
| Shank Dia. | 1" |
| Shank Dia. Tolerance | -0.0001" to -0.0005" |
| Shank Type-machining | Weldon Flat |
| Single End/double End | Single End |
| Tool Length | Standard |
Shipping Info:
| Ship weight (kg) | 1.28 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 8207701000 |
| Country of Origin | US |
Product Details:
- Single End/Double End (Single End)
