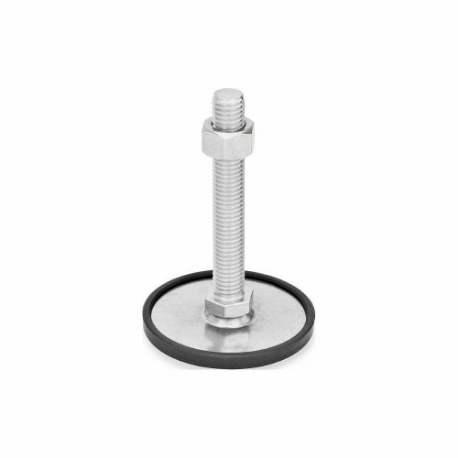

J.W. WINCO Stud Leveling Mounts
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1| Style | Model | Swivel Angle | Bolt Length | Load Capacity | Thread Size | Base Shape | Finish | Thrust Pad Material | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 23-80-3/8X16-75-D0-SK | - | 5.91" | 6295 lbf. | 3/8"-16 | Round | - | - | 7.01" | €209.52 | |
| B | 30-100-5/8X11-100-A2-UK | 6° | 3.94" | 2473 lbf. | 5/8"-11 | Round | Blue Passivated, Zinc Plated | TPE | 5 7/25" | €92.80 | |
| C | 21-80-3/8X16-75-D1-SK | 6° | 2.95" | 2473 lbf. | 3/8"-16 | Round | - | Buna N | 3 4/5" | €223.38 | |
| D | 31-60-3/8X16-75-B1-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | Buna N | 3.58" | €51.92 | |
| D | 31-80-3/8X16-75-B1-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | Buna N | 3.66" | €65.71 | |
| E | 42-80-3/8X16-75-E0-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Rectangular | Blue Passivated, Zinc Plated | - | 3.89" | €44.32 | |
| F | 42-80-3/8X16-75-E3-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Rectangular | Blue Passivated, Zinc Plated | Buna N | 3.89" | €83.66 | |
| G | 42-80-3/8X16-75-G0-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Rectangular | Blue Passivated, Zinc Plated | - | 3.07" | €44.56 | |
| H | 40-40-3/8X16-75-A3-SK | 6° | 2.95" | 1574 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 3.09" | €31.48 | |
| I | 30-60-3/8X16-75-A5-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 3.89" | €48.21 | |
| I | 30-50-3/8X16-75-A5-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 3.86" | €47.08 | |
| J | 32-80-3/8X16-75-A5-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 3.74" | €66.74 | |
| J | 32-60-3/8X16-75-A5-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 3.7" | €51.47 | |
| J | 32-50-3/8X16-75-A5-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 3.66" | €46.53 | |
| C | 21-80-3/8X16-75-D0-SK | 6° | 2.95" | 2473 lbf. | 3/8"-16 | Round | - | - | 3 18/25" | €205.76 | |
| K | 30-100-3/4X10-150-A1-UK | 6° | 5.91" | 2473 lbf. | 3/4"-10 | Round | Blue Passivated, Zinc Plated | Buna N | 7.29" | €94.31 | |
| L | 41-40-3/8X16-75-D1-SK | 6° | 2.95" | 2698 lbf. | 3/8"-16 | Round | Plain | Buna N | 3.01" | €28.27 | |
| B | 30-80-3/4X10-150-A2-UK | 6° | 5.91" | 2473 lbf. | 3/4"-10 | Round | Blue Passivated, Zinc Plated | TPE | 7.21" | €86.34 | |
| K | 30-80-3/4X10-150-A1-UK | 6° | 5.91" | 2473 lbf. | 3/4"-10 | Round | Blue Passivated, Zinc Plated | Buna N | 7.21" | €77.58 | |
| M | 32-80-3/4X10-150-A1-UK | 6° | 5.91" | 2698 lbf. | 3/4"-10 | Round | Blue Passivated, Zinc Plated | Buna N | 6.7" | €93.03 | |
| N | 40-80-3/4X10-150-A1-UK | 6° | 5.91" | 3597 lbf. | 3/4"-10 | Round | Blue Passivated, Zinc Plated | TPE | 5.99" | €59.36 | |
| O | 31-100-3/4X10-150-B2-UK | 6° | 5.91" | 3147 lbf. | 3/4"-10 | Round | Shotblasted Matte | TPE | 6.7" | €168.13 | |
| O | 31-80-3/4X10-150-B2-UK | 6° | 5.91" | 3372 lbf. | 3/4"-10 | Round | Shotblasted Matte | TPE | 6.62" | €138.19 | |
| P | 33-80-3/4X10-150-B1-UK | 6° | 5.91" | 4271 lbf. | 3/4"-10 | Round | Shotblasted Matte | - | 7.29" | €146.72 | |
| Q | 31-100-3/4X10-150-B1-UK | 6° | 5.91" | 3822 lbf. | 3/4"-10 | Round | Shotblasted Matte | Buna N | 6.7" | €157.71 | |
| P | 33-100-3/4X10-150-B1-UK | 6° | 5.91" | 3822 lbf. | 3/4"-10 | Round | Shotblasted Matte | Buna N | 7.33" | €181.47 | |
| R | 41-80-3/4X10-150-D1-UK | 6° | 5.91" | 4496 lbf. | 3/4"-10 | Round | Plain | Buna N | 5.99" | €100.62 | |
| S | 41-80-3/4X10-150-B0-UK | 6° | 5.91" | 4496 lbf. | 3/4"-10 | Round | Plain | - | 6.66" | €102.26 | |
| T | 43-80-3/4X10-150-E3-UK | 6° | 5.91" | 4496 lbf. | 3/4"-10 | Rectangular | Plain | Buna N | 6.66" | €137.25 | |
| U | 41-80-3/4X10-150-D0-UK | 6° | 5.91" | 4496 lbf. | 3/4"-10 | Round | Plain | - | 6.03" | €96.96 | |
| V | 43-80-3/4X10-150-G3-UK | 6° | 5.91" | 4496 lbf. | 3/4"-10 | Rectangular | Plain | Buna N | 5 24/25" | €137.25 | |
| D | 31-50-3/8X16-75-B1-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | Buna N | 8.66" | €52.08 | |
| W | 41-40-3/8X16-75-D0-SK | 6° | 2.95" | 2698 lbf. | 3/8"-16 | Round | Plain | - | 3.03" | €26.43 | |
| X | 41-40-3/8X16-75-D3-SK | 6° | 2.95" | 2698 lbf. | 3/8"-16 | Round | Plain | Buna N | 3.09" | €36.64 | |
| Y | 30-80-3/8X16-75-A2-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | TPE | 3.97" | €63.79 | |
| Z | 40-50-3/8X16-100-B0-SK | 6° | 3.94" | 1798 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | - | 4.37" | €28.27 | |
| A1 | 40-50-3/8X16-100-A0-SK | 6° | 3.94" | 1798 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | - | 4 1/25" | €23.92 | |
| H | 40-50-3/8X16-100-A3-SK | 6° | 3.94" | 1798 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 4.1" | €35.15 | |
| I | 30-60-3/8X16-100-A5-SK | 6° | 3.94" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 4 22/25" | €49.19 | |
| I | 30-50-3/8X16-100-A5-SK | 6° | 3.94" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 4.85" | €48.37 | |
| J | 32-60-3/8X16-100-A5-SK | 6° | 3.94" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 4.69" | €52.41 | |
| J | 32-50-3/8X16-100-A5-SK | 6° | 3.94" | 2248 lbf. | 3/8"-16 | Round | Powder Coat | Buna N | 4.65" | €47.42 | |
| A | 23-80-3/8X16-100-D0-SK | 6° | 3.94" | 6295 lbf. | 3/8"-16 | Round | - | - | 5 1/25" | €210.84 | |
| A | 23-80-3/8X16-100-D1-SK | 6° | 3.94" | 6295 lbf. | 3/8"-16 | Round | - | Buna N | 4.79" | €227.10 | |
| C | 21-80-3/8X16-100-D0-SK | 6° | 3.94" | 2473 lbf. | 3/8"-16 | Round | - | - | 4.71" | €207.44 | |
| C | 21-80-3/8X16-100-D1-SK | 6° | 3.94" | 2473 lbf. | 3/8"-16 | Round | - | Buna N | 4.79" | €225.35 | |
| Y | 30-50-3/8X16-75-A2-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | TPE | 3.86" | €43.03 | |
| B1 | 30-60-3/8X16-75-A1-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 3.89" | €43.75 | |
| C1 | 32-80-3/8X16-75-A1-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 3.74" | €64.62 | |
| D1 | 42-80-3/4X10-150-G0-UK | 6° | 5.91" | 3597 lbf. | 3/4"-10 | Rectangular | Blue Passivated, Zinc Plated | - | 6.03" | €66.92 | |
| C1 | 32-50-3/8X16-75-A1-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 3.66" | €42.27 | |
| Y | 30-60-3/8X16-75-A2-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | TPE | 3.89" | €46.22 | |
| B1 | 30-80-3/8X16-75-A1-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 3.97" | €54.71 | |
| C1 | 32-60-3/8X16-75-A1-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 3.7" | €48.17 | |
| E1 | 40-40-3/8X16-75-A1-SK | 6° | 2.95" | 1574 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | TPE | 3.01" | €24.26 | |
| B1 | 30-50-3/8X16-75-A1-SK | 6° | 2.95" | 2248 lbf. | 3/8"-16 | Round | Blue Passivated, Zinc Plated | Buna N | 3.86" | €43.39 | |
| F1 | 31-50-3/8X16-75-B2-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | TPE | 8.66" | €51.28 | |
| F1 | 31-60-3/8X16-75-B2-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | TPE | 3.58" | €54.45 | |
| F1 | 31-80-3/8X16-75-B2-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | TPE | 3.66" | €75.23 | |
| G1 | 33-50-3/8X16-75-B1-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | Buna N | 3.97" | €57.81 | |
| G1 | 33-60-3/8X16-75-B1-SK | 6° | 2.95" | 3147 lbf. | 3/8"-16 | Round | Shotblasted Matte | Buna N | 4.01" | €60.99 |
