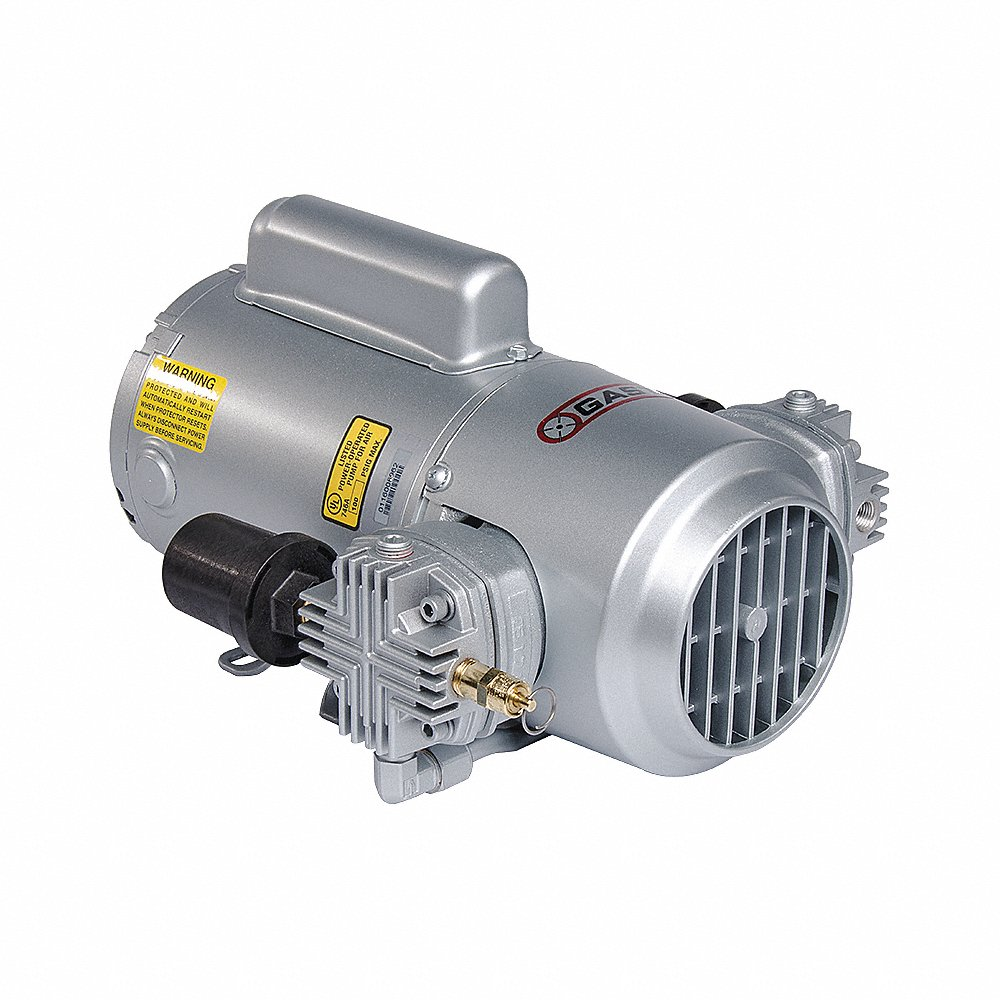

GAST 5HCD-10-M553 Piston Air Compressor, 0.75 hp, 1 Phase, 200-230/460VAC/220-240/380-415VAC
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,449.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Piston Air Compressor |
| Compressor/pump Enclosure Material | Aluminum, Plastic |
| Control Type | Manual |
| Current Rating | 3.55A |
| Cylinder Material | Aluminum |
| Duty Cycle | 100% |
| Electrical Connection | Spade Terminal |
| Enclosure Rating | IP20 |
| Enclosure Type | Clean Dust Free |
| Engine Enclosure Material | Steel |
| Exhaust Location | Front |
| Finish | Painted |
| Flow @ 60 Hz | 4.7 CFM |
| Flow? @ 50 Hz | 3.9 CFM |
| Free Air Flow Rate | 3.9/4.7 CFM |
| Frequency | 50/60 Hz |
| Inlet Gender | Female |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Life Expectancy | 16000 hrs. |
| Lubrication Type | Oilless |
| Max. Continuous Pressure | 100 psi |
| Max. Intermittent Pressure | 100 psi |
| Max. Pressure | 100 psi |
| Max. Speed | 1725 RPM |
| Maximum Operating Temperature | 104°F |
| Mfr. Series | GAST |
| Minimum Operating Temperature | 41°F |
| Motor Type | 3-Phase |
| Mounting Hole Dia. | 0.905" |
| Mounting Hole Diameter | 0.35" |
| Mounting Style | Thru Bolt |
| Number Of Cylinders | 2 |
| Outlet Gender | Female |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Overall Height | 6.653" |
| Overall Length | 15.799" |
| Overall Width | 12.047" |
| Phase | Single |
| Piston Type | Reciprocating |
| Power Output | 3/4 hp |
| Power Source | Corded Electric |
| Product Datasheet | gast-5hcd-10-m553.pdf |
| Pump Type | Piston |
| Series | GAST Series |
| Sound Level | 73 dBA |
| Stroke Length | 5/8" |
| Tank Style | Tankless |
| Thermal Protection | No |
| Valve Material | Stainless Steel |
| Valve Type | Reed |
| Voltage | 220-240/380-415/200-230/460V |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 19.69 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Free Air Flow Rate | Inlet Size | Outlet Size | Power Output | Overall Height | Overall Width | Overall Length | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2HAH-251-M322 | 2.1 CFM | 1/4" | 1/4" | - | 8 5/8" | 5 5/8" | 14" | Automatic Reset | - | RFQ
|
 |
3HBB-251-M322 | 2.4 CFM | 1/4" | 1/4" | - | 5 7/8" | 10 7/8" | 15 1/4" | Automatic Reset | - | RFQ
|
 |
1HAB-11T-M100X | - | 1/4" | - | 3/25 hp | 16.66" | 8.3" | 17.53" | Yes | €2,913.76 | |
 |
1HAB-25-M100X | 1.31 CFM | 1/4" | 1/4" | 83/500 hp | 10 4/5" | 8.1" | 14.45" | Yes | €2,065.15 | |
 |
2HAH-10-M200X | 1.72 CFM | 1/4" | 1/4" | 1/4 hp | 8.385" | 5.669" | 12.913" | Yes | €1,443.87 | |
 |
3HBB-19-M323A | 2.4 CFM | 1/4" | 1/4" | 21/50 hp | 5.82" | 10.93" | 12 4/25" | No | €2,785.81 | |
 |
2HAH-19C-M322A | 1.7 CFM | 1/4" | 1/4" | 21/50 hp | 5.81" | 8 9/25" | 12 4/25" | No | €2,211.48 |
