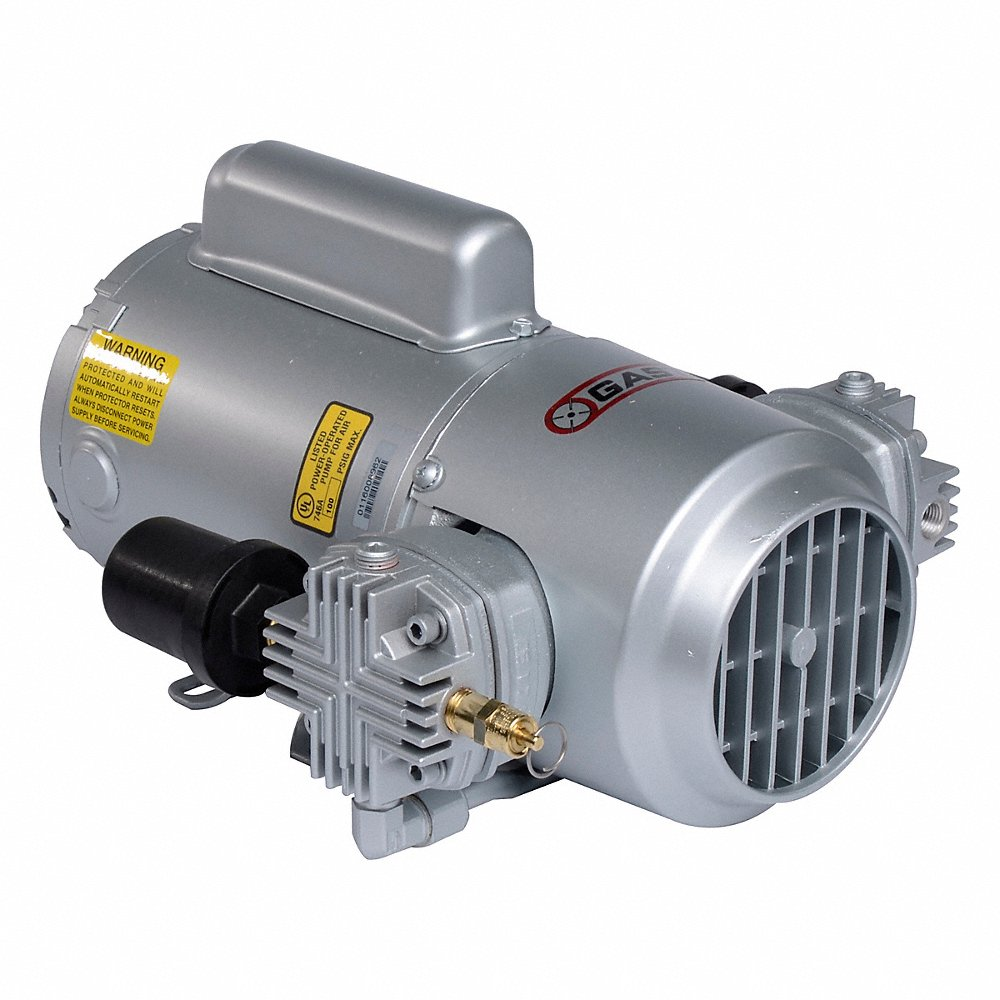

GAST 3HBB-19-M323A Piston Air Compressor, 0.333 hp, 1 Phase, 24 VDC, 100 psi Max Continuous Pressure, 2.4 cfm
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,507.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Piston Air Compressor |
| Amps Running | 20A |
| Compressor/pump Enclosure Material | Aluminum, Plastic |
| Control Type | Manual |
| Current Rating | 19.5A |
| Cylinder Material | Aluminum |
| Duty Cycle | 100% |
| Electrical Connection | Spade Terminal |
| Enclosure Rating | IP20 |
| Enclosure Type | Clean Dust Free |
| Engine Enclosure Material | Steel |
| Exhaust Location | Front |
| Finish | Painted |
| Free Air Flow Rate | 2.4 CFM |
| Frequency | Dc |
| Inlet Gender | Female |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Life Expectancy | 2000 hrs. |
| Lubrication Type | Oilless |
| Max. Continuous Pressure | 100 psi |
| Max. Intermittent Pressure | 100 psi |
| Max. Pressure | 100 psi |
| Max. Speed | 1615 RPM |
| Maximum Operating Temperature | 104°F |
| Mfr. Series | GAST |
| Minimum Operating Temperature | 41°F |
| Motor Type | Brushed DC |
| Mounting Hole Diameter | 9/25" |
| Mounting Style | Thru Bolt |
| Number Of Cylinders | 2 |
| Outlet Gender | Female |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Overall Height | 5.82" |
| Overall Length | 12 4/25" |
| Overall Width | 10.93" |
| Phase | Single |
| Piston Type | Reciprocating |
| Power Output | 21/50 hp |
| Power Source | Corded Electric |
| Product Datasheet | gast-3hbb-19-m323a.pdf |
| Pump Type | Piston |
| Series | GAST Series |
| Sound Level | 75 dBA |
| Stroke Length | 1/2" |
| Tank Style | Tankless |
| Thermal Protection | No |
| Valve Material | Stainless Steel |
| Valve Type | Reed |
| Voltage | 24V |
Shipping Info:
| Ship weight (kg) | 8.78 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 19.69 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Free Air Flow Rate | Inlet Size | Outlet Size | Power Output | Overall Height | Overall Width | Overall Length | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2HAH-251-M322 | 2.1 CFM | 1/4" | 1/4" | - | 8 5/8" | 5 5/8" | 14" | Automatic Reset | - | RFQ
|
 |
3HBB-251-M322 | 2.4 CFM | 1/4" | 1/4" | - | 5 7/8" | 10 7/8" | 15 1/4" | Automatic Reset | - | RFQ
|
 |

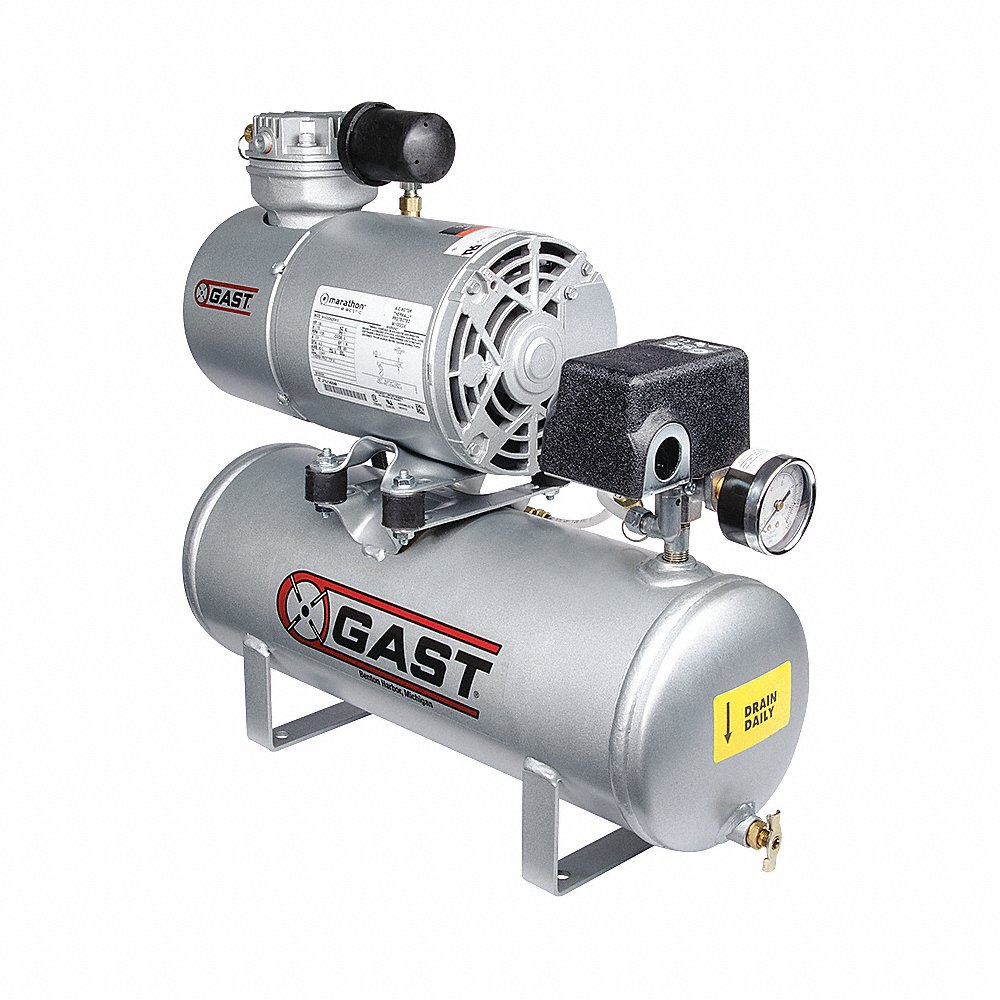

1HAB-11T-M100X | - | 1/4" | - | 3/25 hp | 16.66" | 8.3" | 17.53" | Yes | €2,913.76 | |
 |

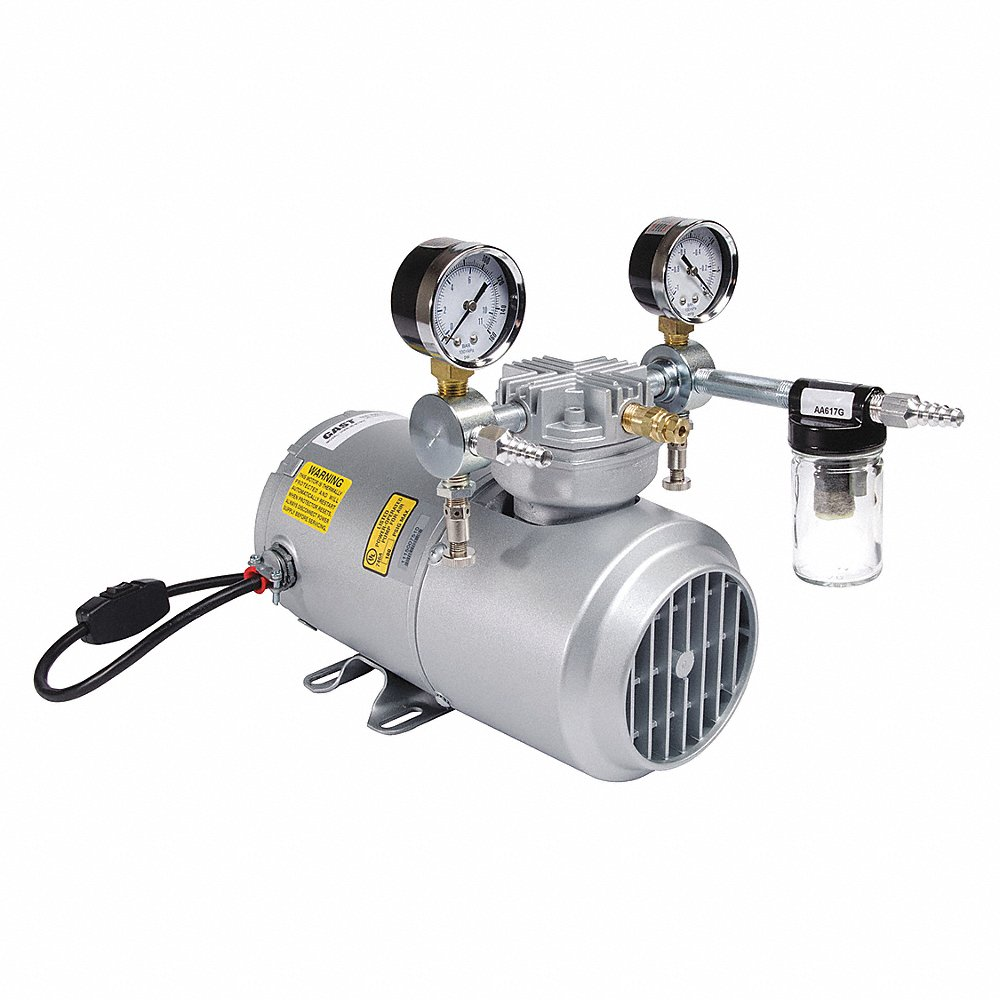

1HAB-25-M100X | 1.31 CFM | 1/4" | 1/4" | 83/500 hp | 10 4/5" | 8.1" | 14.45" | Yes | €2,065.15 | |
 |

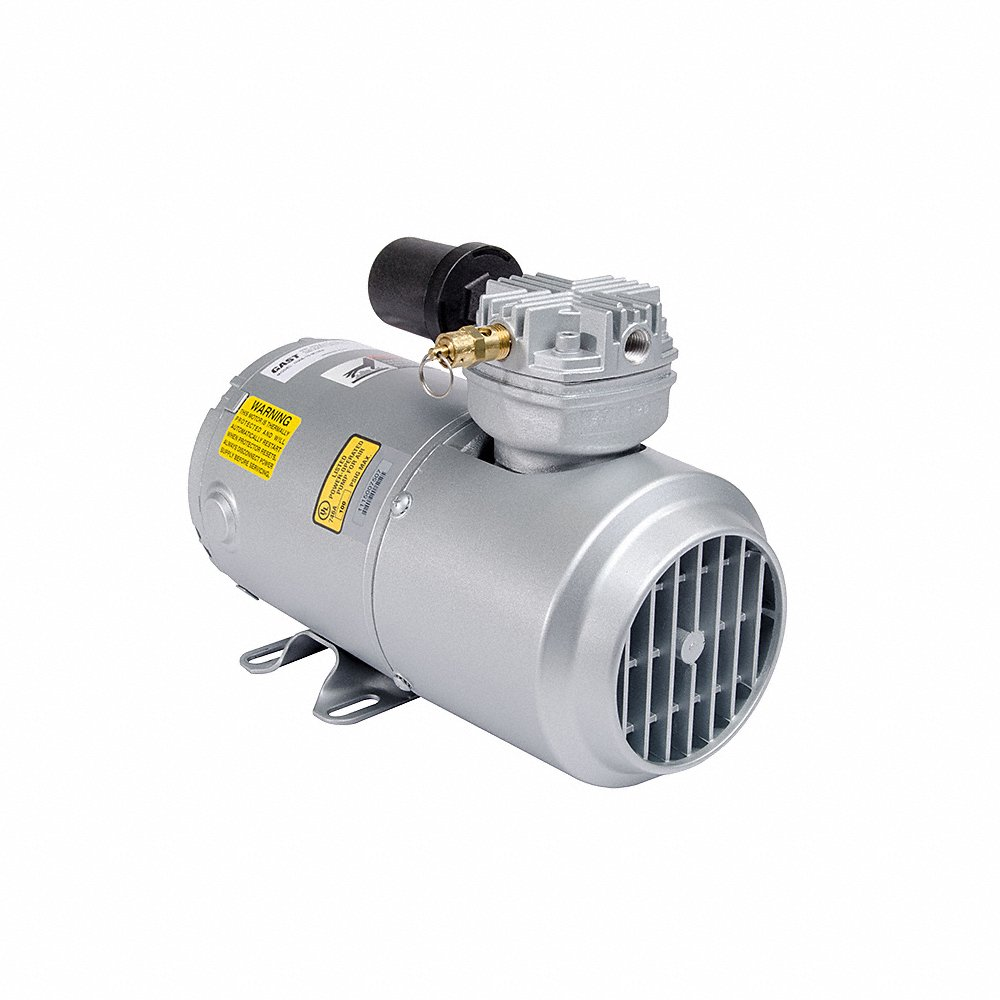

2HAH-10-M200X | 1.72 CFM | 1/4" | 1/4" | 1/4 hp | 8.385" | 5.669" | 12.913" | Yes | €1,443.87 | |
 |

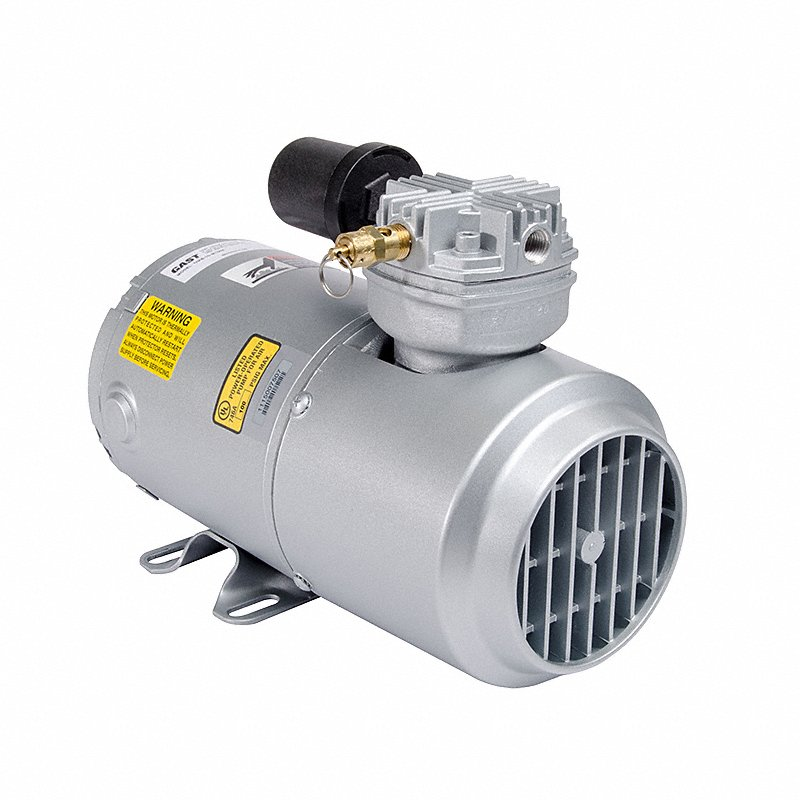

2HAH-19C-M322A | 1.7 CFM | 1/4" | 1/4" | 21/50 hp | 5.81" | 8 9/25" | 12 4/25" | No | €2,211.48 | |
 |

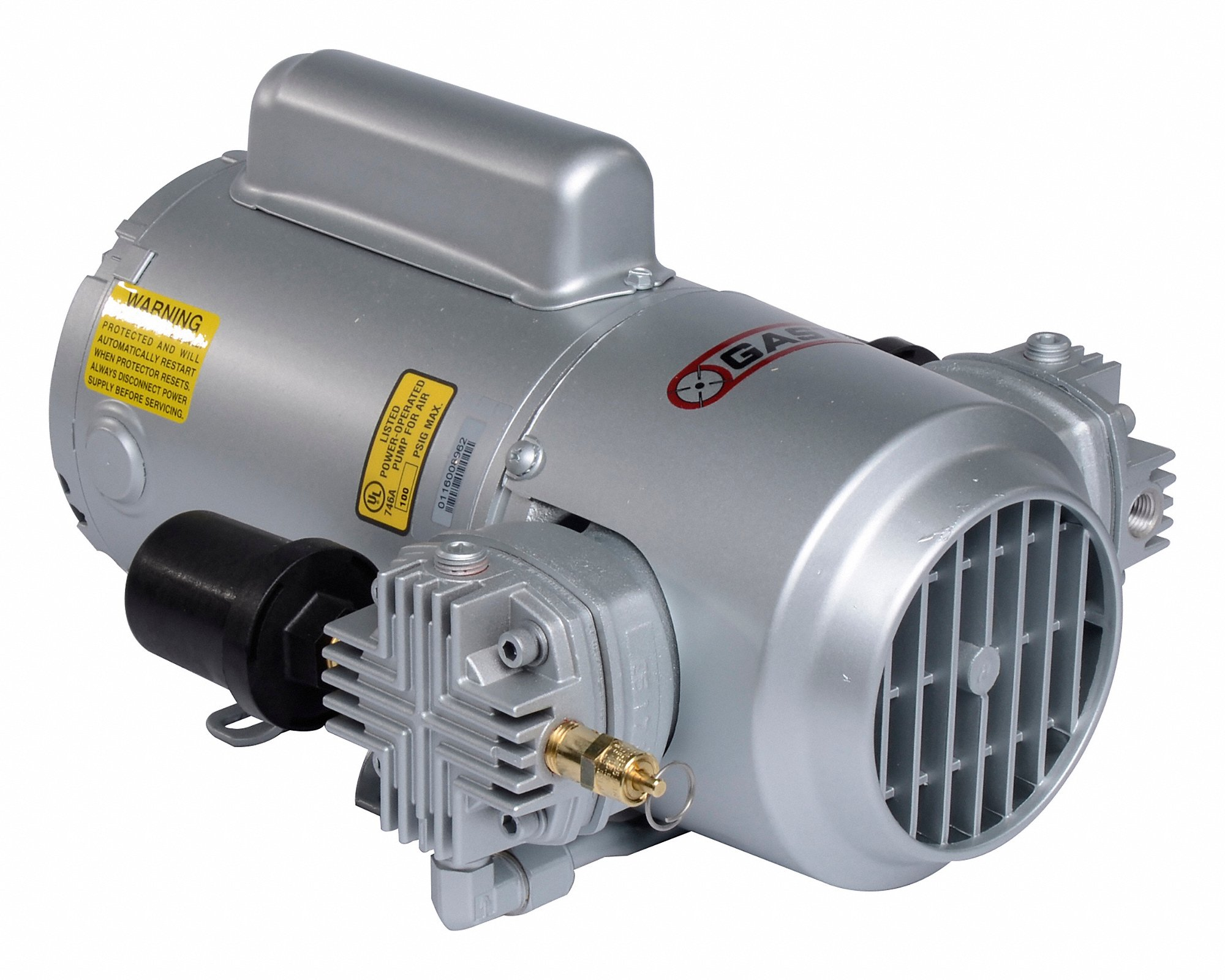

3HBB-19-M322A | 2.4 CFM | 1/4" | 1/4" | 21/50 hp | 5.82" | 10.93" | 12 4/25" | No | €2,689.42 |
