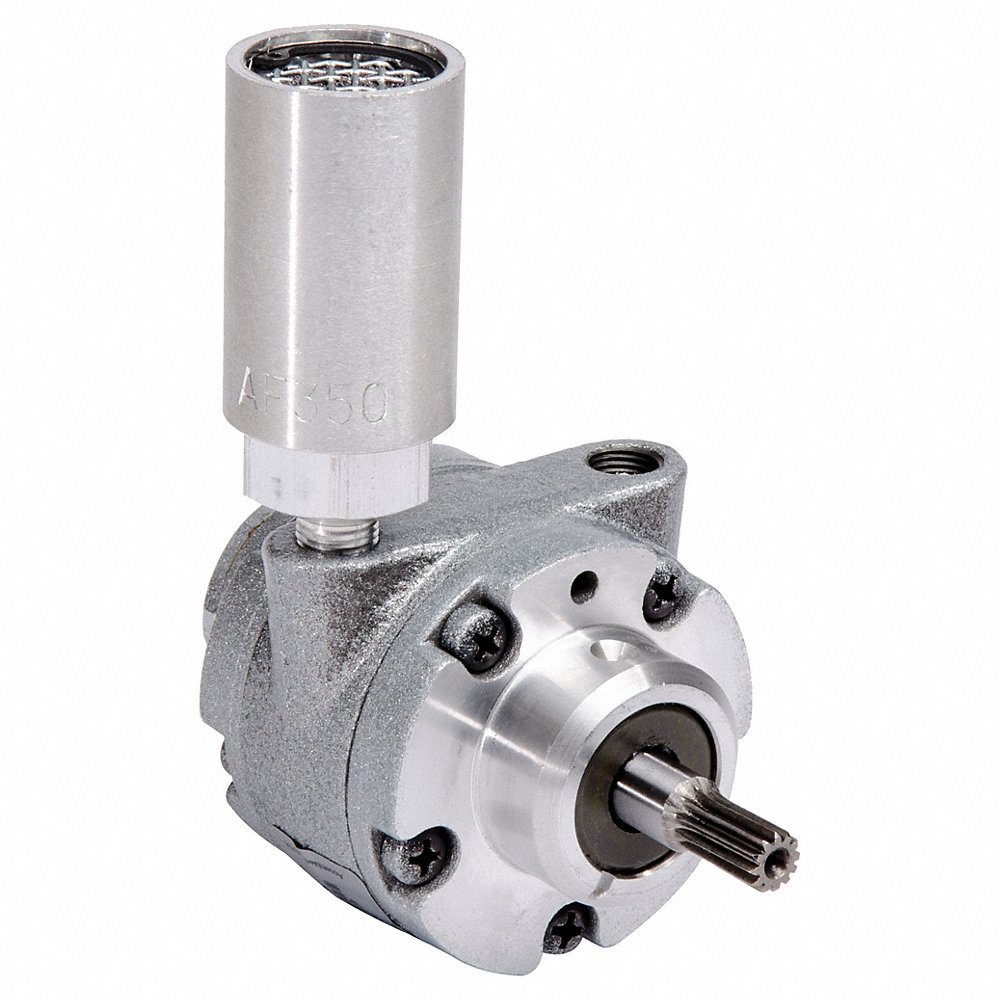

GAST 1AM-NRV-60 Air Motor, 0.42 HP Max Power, 7 bar Max Pressure
Item: CP6HHMModel: 1AM-NRV-60Cross Ref: 33K696
7 In Stock
Ships within 2 days via
5.00% off
€593.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Motor |
| Air Consumption | 22 CFM |
| Air Inlet Port | 1/8" |
| Air Inlet Port Type | NPT |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 21/50 hp |
| Included | Muffler |
| Length Less Shaft | 3.1" |
| Max. Air Consumption | 20.5 CFM |
| Max. Ambient Temp. | 248°F |
| Max. Flow Rate | 20.5 CFM , 22 CFM |
| Max. Operating Pressure | 100 psi |
| Max. Pressure | 101.53 psi |
| Max. Sound Level | 78 dBA |
| Max. Speed | 10000 RPM |
| Max. Torque | 5.6 lbs.-in. |
| Min. Ambient Temp. | 34°F |
| Min. Flow Rate | 1 CFM |
| Mount | Hub |
| Mounting Orientation | Any Angle |
| No Load Speed | 10000 RPM |
| No. Of Teeth | 12 |
| No. Of Vane | 8 |
| Output Power | 19/50 hp |
| Output Shaft Type | Tooth Pinion |
| Outside Dia. | 2 1/2" |
| Overall Height | 2 1/4" |
| Overall Length | 4" |
| Overall Width | 2 1/2" |
| Port Size | 1/8" |
| Port Type | NPT |
| Product Datasheet | gast-1am-nrv-56.pdf |
| Rotation | Reversible |
| Series | 1AM Series |
| Shaft Dia. | 1/4" |
| Shaft Length | 1" |
| Shaft Size | 0.31" |
| Starting Torque | 5 lbs.-in. |
| Starting Torque @ 80psi | 3.9 lbs.-in. |
| System Of Measurement | Imperial |
| Torque @ Max. Pressure | 2.7 lbs.-in. |
| Torque @ Max. Speed | 0.31 N-m , 2.75 lbs.-in. |
| Type | NPT |
| Vane | 8 |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
