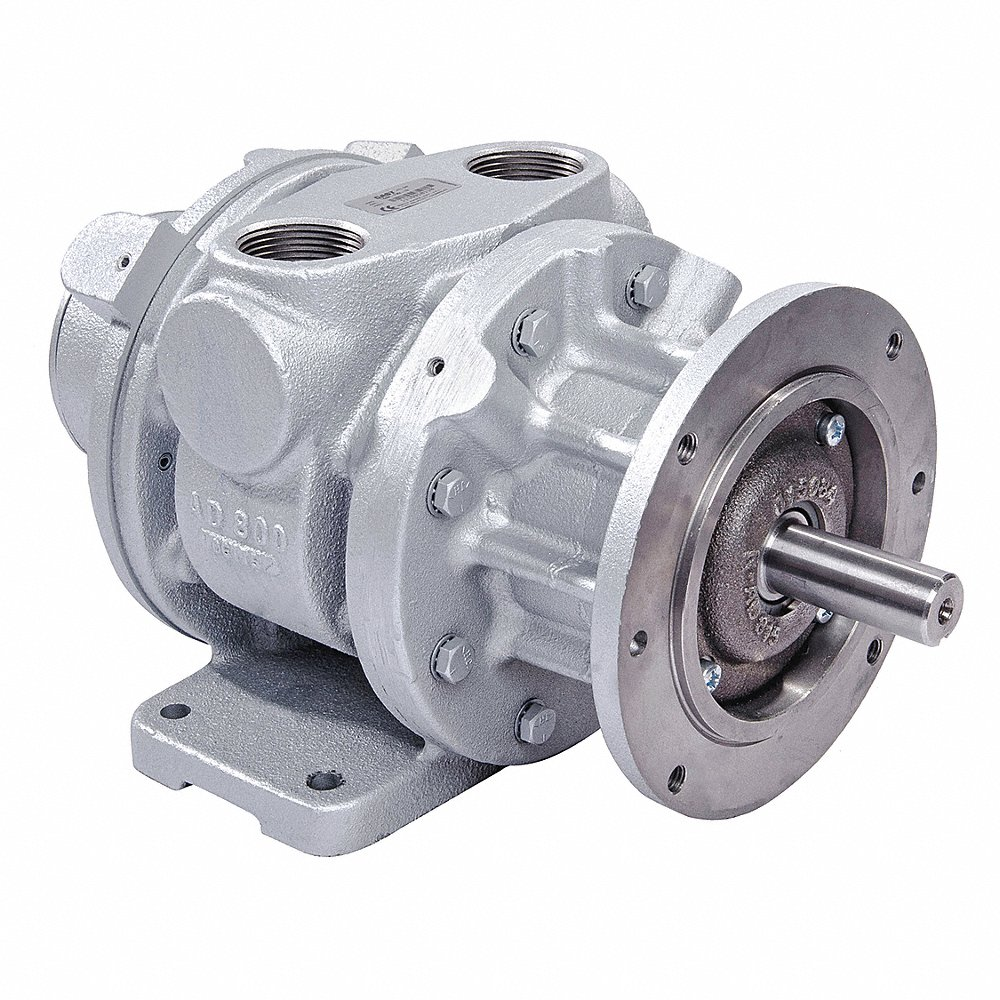

GAST 16AM-FRV-13 Skid Air Motor, 9 HP Max Power, 6.96 bar Max Pressure
Get it by Tuesday, Sep 1
5.00% off
€2,697.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Motor |
| Bearing Protection | Not Applicable |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 9 hp |
| Included | Not Applicable |
| Inlet Gender | Female |
| Key Type | M30-KEYSQ 1.0 |
| Keyway Type | Square |
| Max. Air Consumption | 275 CFM |
| Max. Flow Rate | 275 CFM |
| Max. Pressure | 101 psi |
| Max. Sound Level | 113 dBA |
| Max. Speed | 2000 RPM |
| Max. Torque | 372 lbs.-in. |
| Motor Design | Air |
| Mount | Foot |
| Mount Hole Center To Center Length | Not Applicable |
| Mount Hole Center To Center Width | Not Applicable |
| Mounting Orientation | Any Angle |
| Output Shaft Type | Keyed |
| Port Size | 1 1/4" |
| Port Type | NPT |
| Product Datasheet | gast-16am-frv-13.pdf |
| Rotation | Reversible |
| Series | 16AM Series |
| Shaft Length | 2 1/8" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Shaft Size | 0.88" |
| Starting Torque @ 80psi | 268 lbs.-in. |
| System Of Measurement | Imperial |
| Torque @ Max. Speed | 290 lbs.-in. , 32.77 N-m |
| Type | NPT |
| Vane | 6 |
Shipping Info:
| Ship weight (kg) | 36 |
| Ship height (cm) | 86.92 |
| Ship length (cm) | 84.38 |
| Ship width (cm) | 89.46 |
| Country of Origin | US |
