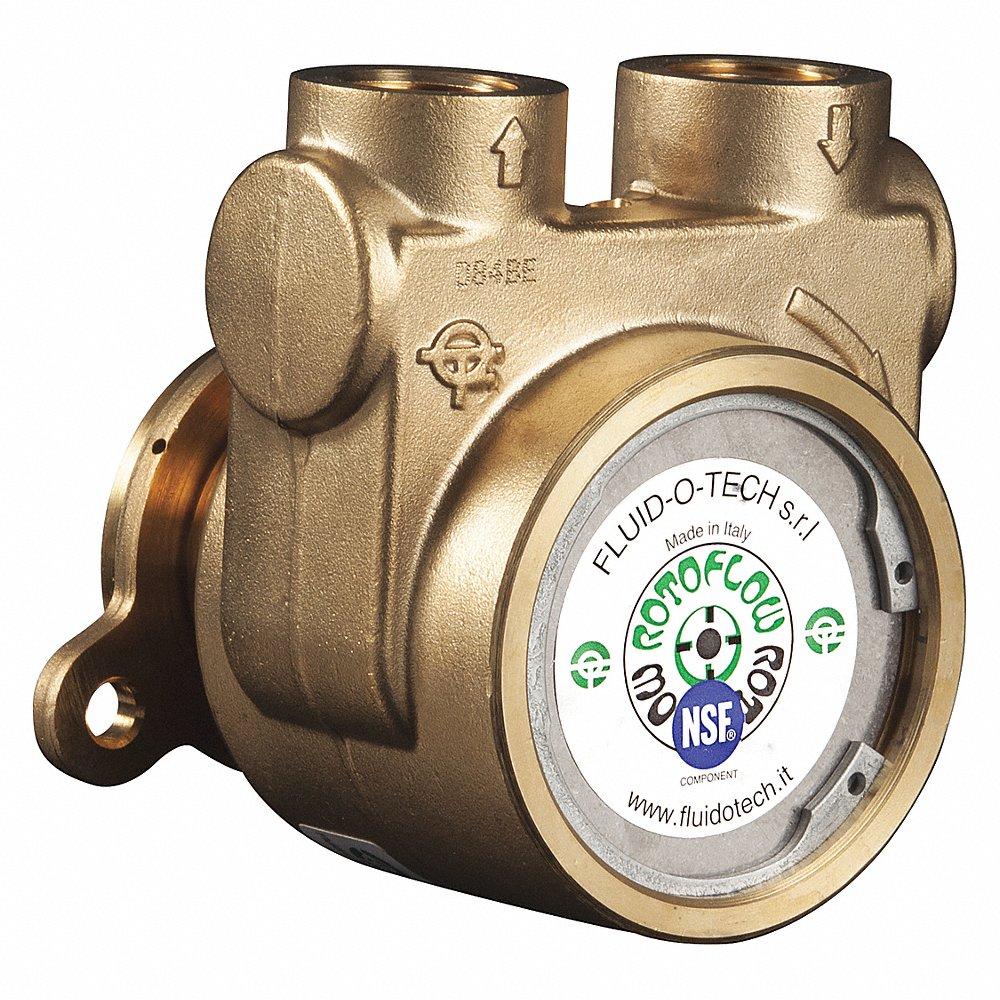

FLUID-O-TECH PA700F Rotary Vane Pump, 1/2 Inch Inlet/Outlet NPTF, 232 gph Max. Flow, Brass
Item: CJ3FGUModel: PA700FCross Ref: 423J93
7 In Stock
Ships within 2 days via
10.00% off
€295.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Brass |
| By-pass | No |
| Compatible Motor Frame | 48Y NEMA, 56C NEMA, M71, M80 IEC |
| Discharge Connection Size | 1/2" |
| External Relief | Not Required |
| Feet Of Head - Maximum | 240 psi |
| Filter | Not Included |
| Filter Combined | No |
| Filter Included | No |
| Filter Rating - Maximum | Not Applicable |
| Flow Rate - Maximum | 200 GPH |
| Flow Rate - Minimum | 182 GPH |
| Flow Rate @ 100 Psi | 186 GPH |
| Flow Rate @ 150 Psi | 184 GPH |
| Flow Rate @ 200 Psi | 181 GPH |
| Flow Rate @ 250 Psi | 220 GPH |
| Flow Rate @ 50 Psi | 198 GPH |
| For Media Type | Water |
| Frame | 48Y, 56C, M71, M80 IEC |
| Gph | 232 GPH |
| Gph Of Water @ 100 Psi | 227 GPH |
| Gph Of Water @ 150 Psi | 224 GPH |
| Gph Of Water @ 200 Psi | 221 GPH |
| Gph Of Water @ 250 Psi | 220 GPH |
| Gph Of Water @ 50 Psi | 230 GPH |
| Includes Filter | No |
| Inlet/outlet Nptf | 1/2" |
| Manufacturer Warranty Length | 15 Months |
| Max. Flow (gph) | 232 GPH |
| Max. Flow Rate | 200 GPH |
| Max. Ft. | 240 psi |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 158°F |
| Max. Pressure | 260 psi |
| Max. Viscosity | 150 cPS |
| Media Intake Connection Size | 1/2" |
| Media Type | Water |
| Min. Flow Rate | 182 GPH |
| Min. Flow Rate (gph) | 220 GPH |
| Min. Operating Temp. | 23°F |
| Mounting | Flange Mount |
| Mounting Type | 3 Bolt Flange |
| Nsf 169 Listed | Yes |
| Operating Temp. Range | 23°F to 158°F |
| Overall Height | 3.9" |
| Overall Length | 4.1" |
| Overall Width | 4 2/5" |
| Port Connection Size | 1/2" |
| Port Connection Type | FNPT |
| Relief Pressure Max. | 260 psi |
| Relief Valve | No |
| Seal Material | Buna N |
| Shaft Combined | 1/8" Stainless Steel |
| Shaft Material | 1/8" , Stainless Steel |
| Shaft Outer Diameter | 1/8" |
| Shaft Outside Dia. | 1/8" |
| Vane Material | Carbon |
| Viscosity - Maximum | 150 cPS |
| Warranty | 15 Months |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 11.18 |
| Country of Origin | IT |
