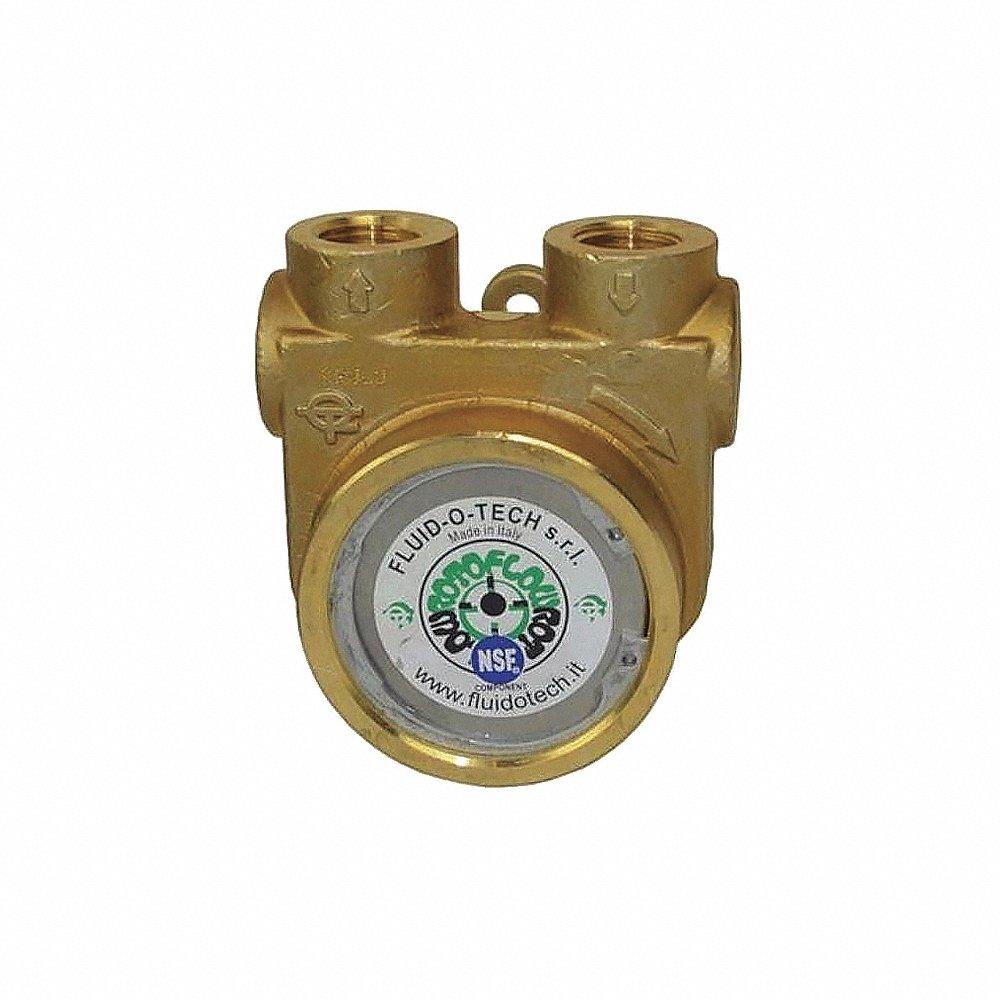

FLUID-O-TECH PA 1001 Rotary Vane Pump, 1/2 Inch Inlet/Outlet NPTF, 327 gph Max. Flow, Brass
Item: CJ3FEZModel: PA 1001Cross Ref: 423J54
7 In Stock
Ships within 2 days via
5.00% off
€321.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Brass |
| Built-in | Relief Valve |
| By-pass | Yes |
| Compatible Motor Frame | 48Y NEMA, 56C NEMA, M71, M80 IEC |
| Discharge Connection Size | 1/2" |
| External Relief | Not Required |
| Feet Of Head - Maximum | 240 psi |
| Filter | Not Included |
| Filter Combined | No |
| Filter Included | No |
| Filter Rating - Maximum | Not Applicable |
| Flow Rate - Maximum | 295 GPH |
| Flow Rate - Minimum | 250 GPH |
| Flow Rate @ 100 Psi | 280 GPH |
| Flow Rate @ 150 Psi | 278 GPH |
| Flow Rate @ 200 Psi | 275 GPH |
| Flow Rate @ 250 Psi | 319 GPH |
| Flow Rate @ 50 Psi | 290 GPH |
| For Media Type | Water |
| Frame | 48Y, 56C, M71, M80 IEC |
| Gph | 327 GPH |
| Gph Of Water @ 100 Psi | 322 GPH |
| Gph Of Water @ 150 Psi | 319 GPH |
| Gph Of Water @ 200 Psi | 316 GPH |
| Gph Of Water @ 250 Psi | 319 GPH |
| Gph Of Water @ 50 Psi | 325 GPH |
| Includes | Relief Valve |
| Includes Filter | No |
| Inlet/outlet Nptf | 1/2" |
| Max. Flow (gph) | 327 GPH |
| Max. Flow Rate | 295 GPH |
| Max. Ft. | 240 psi |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 158°F |
| Max. Pressure | 260 psi |
| Media Intake Connection Size | 1/2" |
| Media Type | Water |
| Min. Flow Rate | 250 GPH |
| Min. Flow Rate (gph) | 319 GPH |
| Min. Operating Temp. | 23°F |
| Mounting | Carbonator Mount |
| Mounting Type | Carbonator Clamp |
| Nsf 169 Listed | Yes |
| Overall Length | 4.1" |
| Overall Width | 4 2/5" |
| Port Connection | 1/2" FNPT |
| Port Connection Size | 1/2" |
| Port Connection Type | FNPT |
| Relief Pressure Max. | 260 psi |
| Relief Valve | Yes |
| Relief Valve Psi Setting | 125 psi |
| Seal Material | Buna N |
| Shaft Combined | 1/8" Stainless Steel |
| Shaft Material | 1/8" , Stainless Steel |
| Shaft Outer Diameter | 1/8" |
| Shaft Outside Dia. | 1/8" |
| Vane Material | Carbon |
| Viscosity - Maximum | 150 cPS |
Shipping Info:
| Ship weight (kg) | 1.91 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 11.18 |
| Country of Origin | IT |
Product Variants
| Product | Model | Mounting Type | Port Connection Size | Max. Flow Rate | Shaft Material | Body Material | Operating Temp. Range | Flow Rate @ 150 Psi | Flow Rate @ 250 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PA 810F | 3 Bolt Flange | 1/2" | 230 GPH | Stainless Steel | Stainless Steel | 23°F to 158°F | 220 GPH | 245 GPH | €483.94 | |
 |
PA 401X | Carbonator Clamp | 3/8" | 118 GPH | Stainless Steel | Brass | 23°F to 158°F | 110 GPH | 136 GPH | €308.87 | |
 |
PA 1510 | Carbonator Clamp | 3/8" | 64 GPH | Stainless Steel | Stainless Steel | 23°F to 158°F | 52 GPH | 56 GPH | €233.09 | |
|
PA 301X | Carbonator Clamp | 3/8" | 90 GPH | Stainless Steel | Brass | 23°F to 158°F | 90 GPH | 99 GPH | €197.79 | |
 |
PA 310 | Carbonator Clamp | 3/8" | 90 GPH | Stainless Steel | Stainless Steel | 23°F to 158°F | 86 GPH | 99 GPH | €229.99 | |
 |
PA 101 | Carbonator Clamp | 3/8" | 40 GPH | Stainless Steel | Brass | 23°F to 158°F | 20 GPH | 29 GPH | €199.58 | |
|
PA 074 | Carbonator Clamp | 3/8" | 25 GPH | Stainless Steel | Brass | 23°F to 158°F | 20 GPH | 21 GPH | €205.69 |
