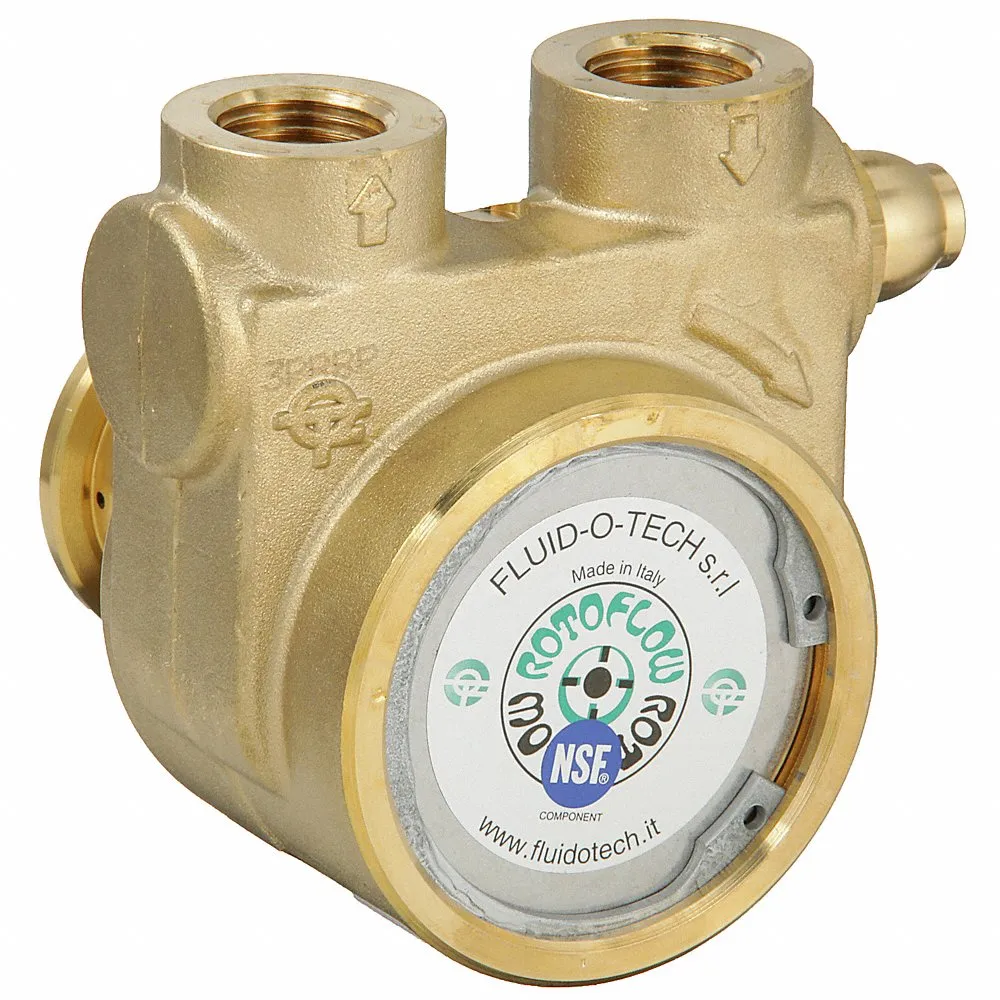

FLUID-O-TECH PA 601 Rotary Vane Pump, 1/2 Inch Inlet/Outlet NPTF, 201 gph Max. Flow, Brass
Item: CJ3FFRModel: PA 601Cross Ref: 423J80
7 In Stock
Ships within 2 days via
10.00% off
€303.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Brass |
| Built-in | Relief Valve |
| By-pass | Yes |
| Compatible Motor Frame | 48Y NEMA, 56C NEMA, M71, M80 IEC |
| Discharge Connection Size | 1/2" |
| External Relief | Not Required |
| Feet Of Head - Maximum | 240 psi |
| Filter | Not Included |
| Filter Combined | No |
| Filter Included | No |
| Filter Rating - Maximum | Not Applicable |
| Flow Rate - Maximum | 165 GPH |
| Flow Rate - Minimum | 145 GPH |
| Flow Rate @ 100 Psi | 158 GPH |
| Flow Rate @ 150 Psi | 150 GPH |
| Flow Rate @ 200 Psi | 142 GPH |
| Flow Rate @ 250 Psi | 175 GPH |
| Flow Rate @ 50 Psi | 160 GPH |
| For Media Type | Water |
| Frame | 48Y, 56C, M71, M80 IEC |
| Gph | 201 GPH |
| Gph Of Water @ 100 Psi | 196 GPH |
| Gph Of Water @ 150 Psi | 193 GPH |
| Gph Of Water @ 200 Psi | 190 GPH |
| Gph Of Water @ 250 Psi | 175 GPH |
| Gph Of Water @ 50 Psi | 199 GPH |
| Includes | Relief Valve |
| Includes Filter | No |
| Inlet/outlet Nptf | 1/2" |
| Manufacturer Warranty Length | 15 Months |
| Max. Flow (gph) | 201 GPH |
| Max. Flow Rate | 165 GPH |
| Max. Ft. | 240 psi |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 158°F |
| Max. Pressure | 260 psi |
| Max. Viscosity | 150 cPS |
| Media Intake Connection Size | 1/2" |
| Media Type | Water |
| Min. Flow Rate | 145 GPH |
| Min. Flow Rate (gph) | 175 GPH |
| Min. Operating Temp. | 23°F |
| Mounting | Carbonator Mount |
| Mounting Type | Carbonator Clamp |
| Nsf 169 Listed | Yes |
| Operating Temp. Range | 23°F to 158°F |
| Overall Length | 4.1" |
| Overall Width | 4 2/5" |
| Port Connection Size | 1/2" |
| Port Connection Type | FNPT |
| Relief Pressure Max. | 260 psi |
| Relief Valve | Yes |
| Relief Valve Psi Setting | 125 psi |
| Seal Material | Buna N |
| Shaft Combined | 1/8" Stainless Steel |
| Shaft Material | 1/8" , Stainless Steel |
| Shaft Outer Diameter | 1/8" |
| Shaft Outside Dia. | 1/8" |
| Vane Material | Carbon |
| Viscosity - Maximum | 150 cPS |
| Warranty | 15 Months |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 11.18 |
| Country of Origin | IT |
Product Variants
| Product | Model | Mounting Type | Port Connection Size | Max. Flow Rate | Shaft Material | Body Material | Operating Temp. Range | Flow Rate @ 150 Psi | Flow Rate @ 250 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PA 070 | Carbonator Clamp | 3/8" | 25 GPH | Stainless Steel | Brass | 23°F to 158°F | 20 GPH | 21 GPH | €184.64 | |
 |
PA 0711 | Carbonator Clamp | 3/8" | 24 GPH | Stainless Steel | Stainless Steel | 23°F to 158°F | 16 GPH | 21 GPH | €237.10 | |
 |
PA 074 | Carbonator Clamp | 3/8" | 25 GPH | Stainless Steel | Brass | 23°F to 158°F | 20 GPH | 21 GPH | €205.69 | |
 |
PA 074X | Carbonator Mount | 3/8" | 25 GPH | Stainless Steel | Brass | +23°F to +158°F | 20 GPH | 21 GPH | €196.13 | |
|
PA 100 | Carbonator Clamp | 3/8" | 40 GPH | Stainless Steel | Brass | 23°F to 158°F | 20 GPH | 21 GPH | €184.64 | |
 |
PA 1001 | Carbonator Clamp | 1/2" | 295 GPH | Stainless Steel | Brass | - | 278 GPH | 319 GPH | €338.09 | |
 |
PA 101 | Carbonator Clamp | 3/8" | 40 GPH | Stainless Steel | Brass | 23°F to 158°F | 20 GPH | 29 GPH | €199.58 |
