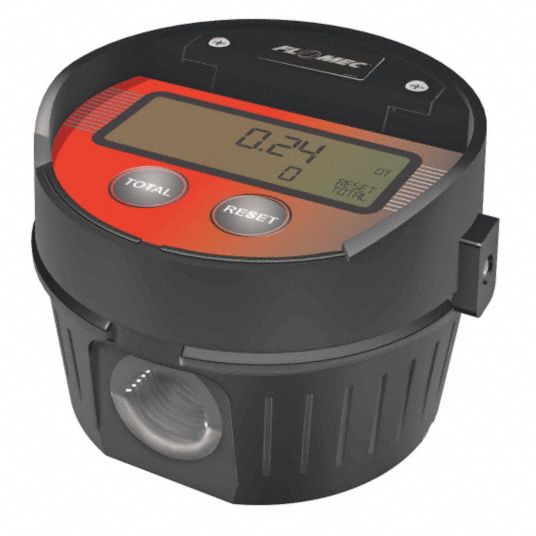

FLOMEC LM51DN Electronic Flowmeter, Oval Gear, 0.25 To 8 gpm Flow Range, 1/2 FNPT
Item: CG6EBGModel: LM51DNCross Ref: 36WJ95
7 In Stock
Ships within 2 days via
10.00% off
€635.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | +/-0.5% |
| Compatible Flow Material | Oils |
| Connection Size | 1/2" |
| Connection Type | FNPT |
| Display Type | Digital |
| Display Units | Gal, L, Pt, Qt |
| Flow Material | Oil |
| Flow Material | Oils |
| Flow Range | 0.25-8 GPM |
| Flow Range @ Gph | 15 To 480 |
| Flow Ranges (gpm) | 0.25 To 8 |
| Flow Rate | 0.2-8 GPM |
| Flow Rate - Maximum | 8 GPM |
| Flow Rate - Minimum | 0.2 GPM |
| Flowmeter Type | Reed Switch |
| Fluid Connection | 1/2" FNPT |
| Fluid Temp. | +23°F to +131°F |
| Fluid Temp. Range | 23 To 131 Deg. F |
| Housing Material | Aluminum |
| Includes Totalizer | Yes |
| Length | 3" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Flow Rate | 8 GPM |
| Max. Media Temperature | 140°F |
| Max. Operating Pressure | 1500 psi |
| Max. Temp. | 140°F |
| Max. Viscosity | 1000 cPS |
| Media Temp. Range | -4°F to +140°F |
| Media Type | Oil |
| Min. Flow Rate | 0.2 GPM |
| Min. Media Temp. | -4°F |
| O-ring Material | Buna N |
| Output Amps | 4-20 mA |
| Output Type | 4-20 mA |
| Overall Length | 3 1/5" |
| Product Type | Lube Meter |
| Rotor Material | Liquid crystal polymer |
| Seal Material | Buna N |
| Sensor Type | Reed Switch |
| Series | LM Series |
| Shaft Material | Stainless Steel |
| Standards | Ce Certified |
| Unit Of Measure | Gallons, Liters |
| Wetted Material | Alnico, Aluminum, Buna N, LCP, Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Country of Origin | DE |
Product Details:
- Replacement Part Number For G2S05N09GMA
