FINISH THOMPSON SP15V-M209 Pump Magnetic Drive 208-230/460v
Get it by Thursday, Dec 18
10.00% off
€5,778.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Drive Pump |
| Amps | 3.8/7.6-8A |
| Application | Highly Corrosive Chemicals |
| Bearing Type | Thrust, Radial |
| Chemical Compatibility | Deionized Water |
| Compatible Chemicals | Deionized Water |
| Design | Centrifugal |
| Discharge Pipe Size | 1 1/2" |
| Discharge Pipe Type | MNPT |
| Discharge Port Size | 1 1/2" |
| Discharge Port Type | MNPT |
| Feet Of Head (maximum) | 90 ft. |
| Flow Rate @ 1 Ft. | 120 GPM |
| Flow Rate @ 15 Ft Of Head (maximum) | 120 GPM |
| Flow Rate @ 18 Ft Of Head (maximum) | 120 GPM |
| Flow Rate @ 18 Ft. | 120 GPM |
| Flow Rate @ 24 Ft Of Head (maximum) | 120 GPM |
| Flow Rate @ 24 Ft. | 120 GPM |
| Flow Rate @ 3 Ft Of Head (maximum) | 120 GPM |
| Flow Rate @ 3 Ft. | 120 GPM |
| Flow Rate @ 40 Ft Of Head (maximum) | 110 GPM |
| Flow Rate @ 40 Ft. | 110 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | 105 GPM |
| Flow Rate @ 50 Ft. | 105 GPM |
| Flow Rate @ 6 Ft Of Head (maximum) | 120 GPM |
| Flow Rate @ 6 Ft. | 120 GPM |
| Flow Rate @ 9 Ft Of Head (maximum) | 120 GPM |
| Full Load Amps | 8-7.6/3.8A |
| Gasket Material | Viton |
| Gpm @ 1 Ft. Of Head | 120 GPM |
| Gpm Of Water @ 18 Ft. Of Head | 120 |
| Gpm Of Water @ 24 Ft. Of Head | 120 |
| Gpm Of Water @ 3 Ft. Of Head | 120 |
| Gpm Of Water @ 6 Ft. Of Head | 120 GPM |
| Gpm Of Water @ 9 Ft. Of Head | 120 |
| Height | 11.1" |
| Horsepower (maximum) | 3 hp |
| Housing Material | PVDF |
| Hp | 3 hp |
| Impeller | Pvdf |
| Impeller Material | PVDF |
| Inlet Size | 1 1/2" |
| Inlet Type | FNPT |
| Intake Pipe Size | 1 1/2" |
| Intake Pipe Type | FNPT |
| Length | 24 3/5" |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Flow Rate @ 15 Ft. | 120 GPM |
| Max. Fluid Temp. | 220°F |
| Max. Head | 90 ft. |
| Max. Viscosity | 50 cPS |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Speed (maximum) | 3450 RPM |
| Motor Type | Induction |
| Mounting | Horizontal |
| Mounting Location | Open Air |
| Mounting Orientation | Horizontal |
| Operating Pressure | 39 psi |
| Operating Pressure (maximum) | 39 psi |
| Outlet Size | 1 1/2" |
| Outlet Type | MNPT |
| Overall Height | 11.1" |
| Overall Length | 24 3/5" |
| Overall Width | 9.7" |
| Phase | 3 |
| Priming | Self Priming |
| Product Datasheet | finish-thompson-db10p-m218.pdf |
| Rpm | 3450 RPM |
| Self Priming | Yes |
| Series | SP15 Series |
| Specific Gravity | 1.8 |
| Specific Gravity (maximum) | 1.8 xg |
| Suction Port | 1 1/2" FNPT |
| Temp (f) @ 0 Psig | 220 |
| Temp (f) @ 0 Psig | 220°F |
| Temp (f) @ 10 Psig | 220 |
| Temp (f) @ 10 Psig | 220°F |
| Temp (f) @ 20 Psig | 220 |
| Temp (f) @ 20 Psig | 220°F |
| Temp (f) @ 30 Psig | 220°F |
| Type | Self Priming |
| Viscosity (maximum) | 50 cPS |
| Voltage | 208-230/460V AC |
| Warranty | 5 yrs. |
| Width | 9.7" |
Shipping Info:
| Ship weight (kg) | 38.43 |
| Ship height (cm) | 77.22 |
| Ship length (cm) | 43.69 |
| Ship width (cm) | 49.28 |
| HS code | 8413810040 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hp | Housing Material | Voltage | Phase | Flow Rate @ 3 Ft. | Flow Rate @ 6 Ft. | Max. Flow Rate @ 15 Ft. | Flow Rate @ 18 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

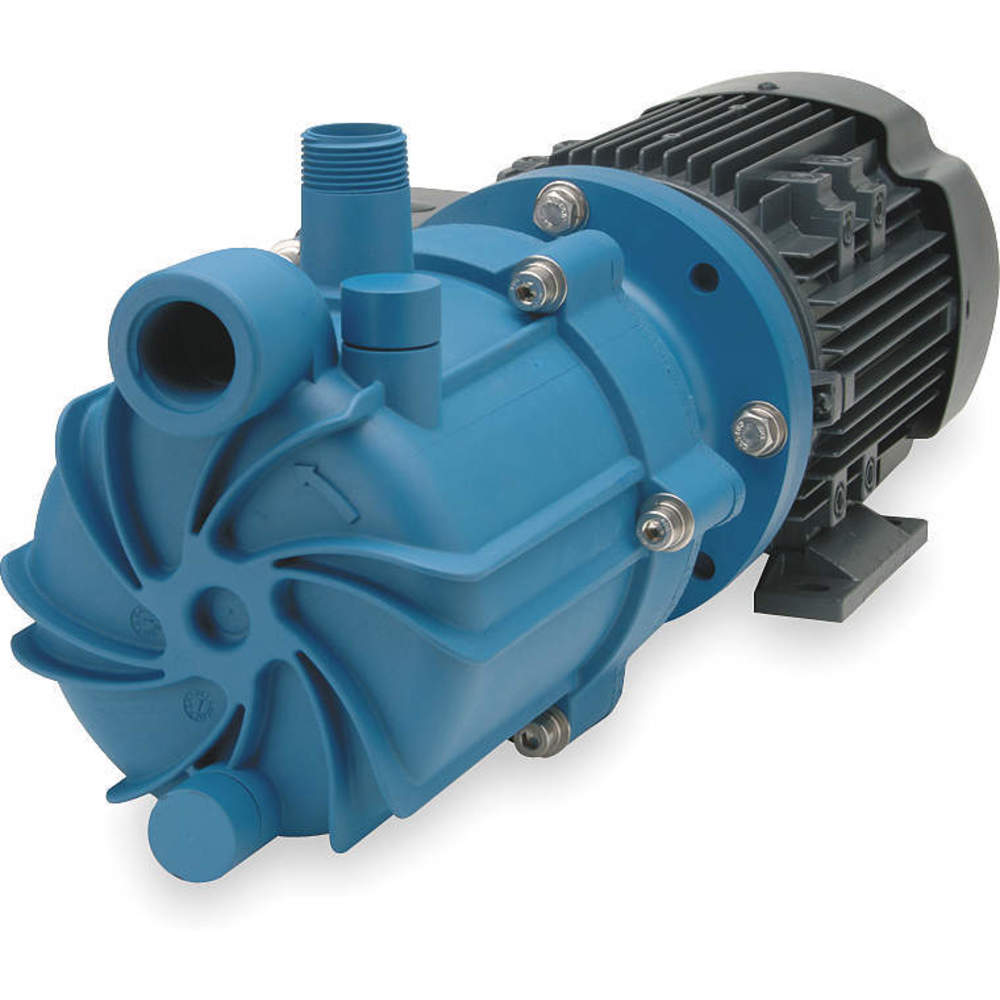

SP10P-3-M218 | 1 hp | Polypropylene | 115/208-230V AC | 1 | 55 GPM | 55 GPM | 55 GPM | 52 GPM | €2,402.47 | |
|
SP10P-3-M219 | 1 hp | Polypropylene | 208-230/460V AC | 3 | 55 GPM | 55 GPM | 55 GPM | 52 GPM | €2,411.71 | |
 |

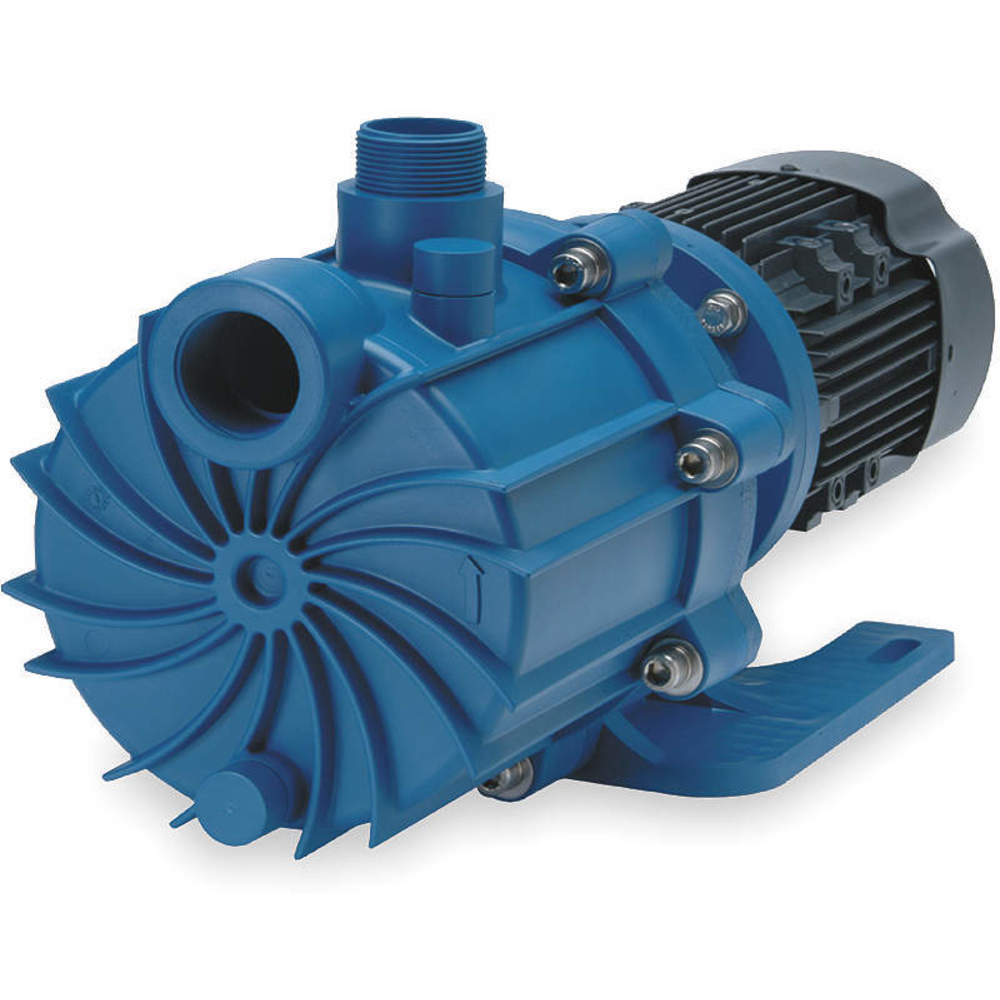

SP11P-M215 | 2 hp | Polypropylene | 208-230/460V AC | 3 | 105 GPM | 105 GPM | 105 GPM | 105 GPM | €3,935.20 | |
|
SP15P-M209 | 3 hp | Polypropylene | 208-230/460V AC | 3 | 120 GPM | 120 GPM | 120 GPM | 120 GPM | €4,143.70 | |
 |

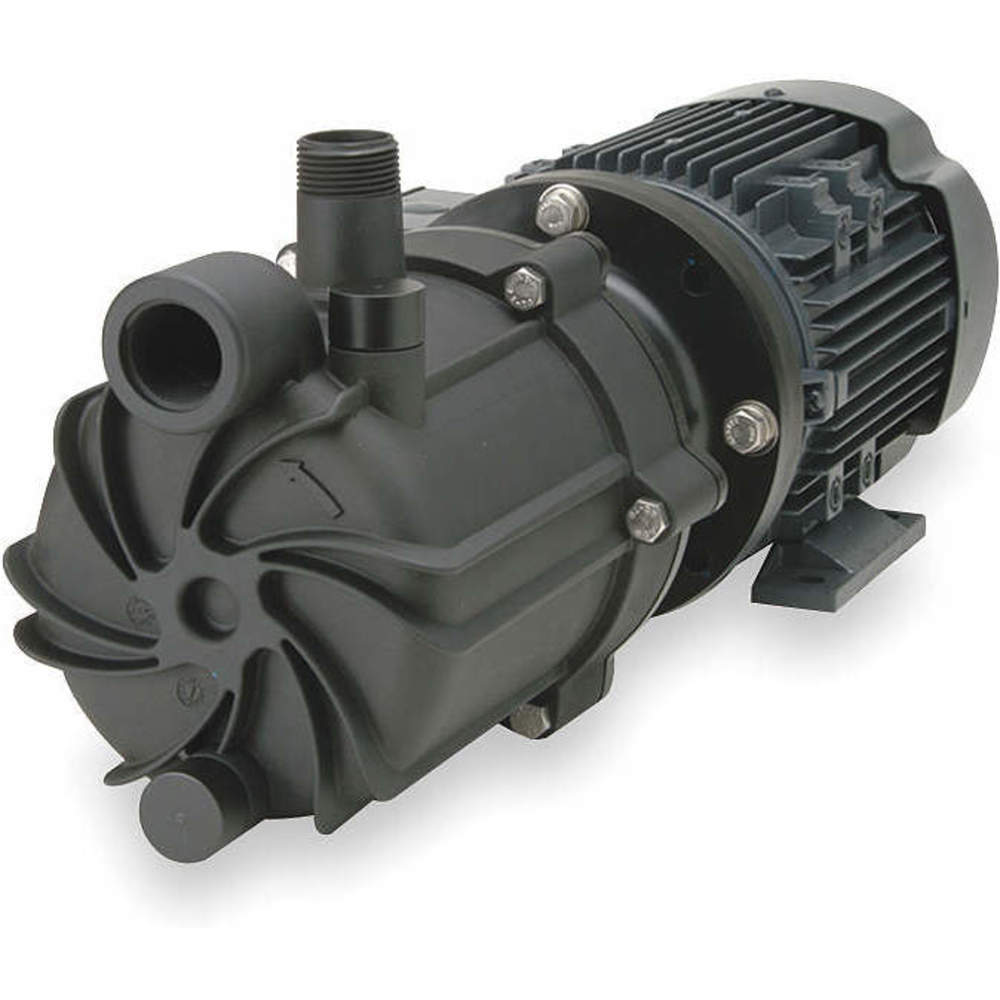

SP10V-3-M218 | 1 hp | PVDF | 115/208-230V AC | 1 | 55 GPM | 55 GPM | 55 GPM | 52 GPM | €3,627.37 | |
|
SP10V-3-M219 | 1 hp | PVDF | 208-230/460V AC | 3 | 55 GPM | 55 GPM | 55 GPM | 52 GPM | €3,599.76 | |
|

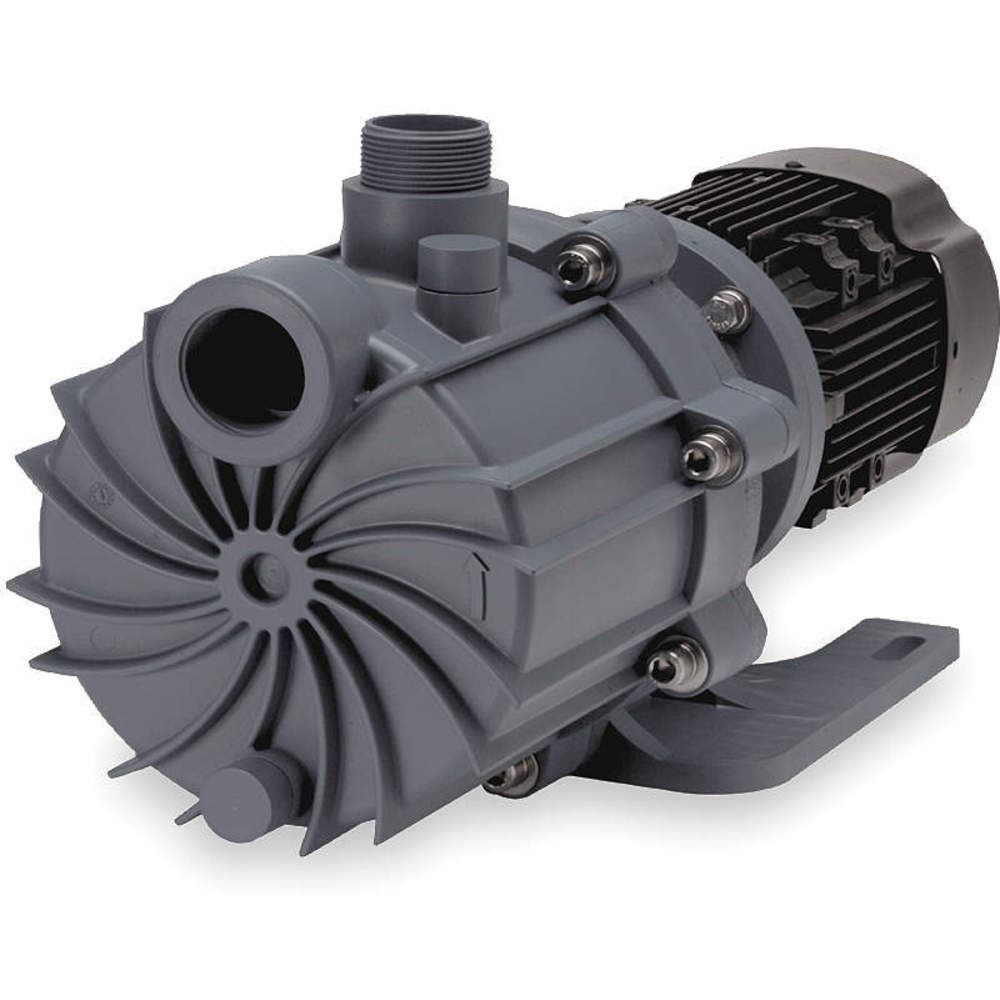

SP11V-M215 | 2 hp | PVDF | 208-230/460V AC | 3 | 105 GPM | 105 GPM | 105 GPM | 105 GPM | €5,878.62 |
