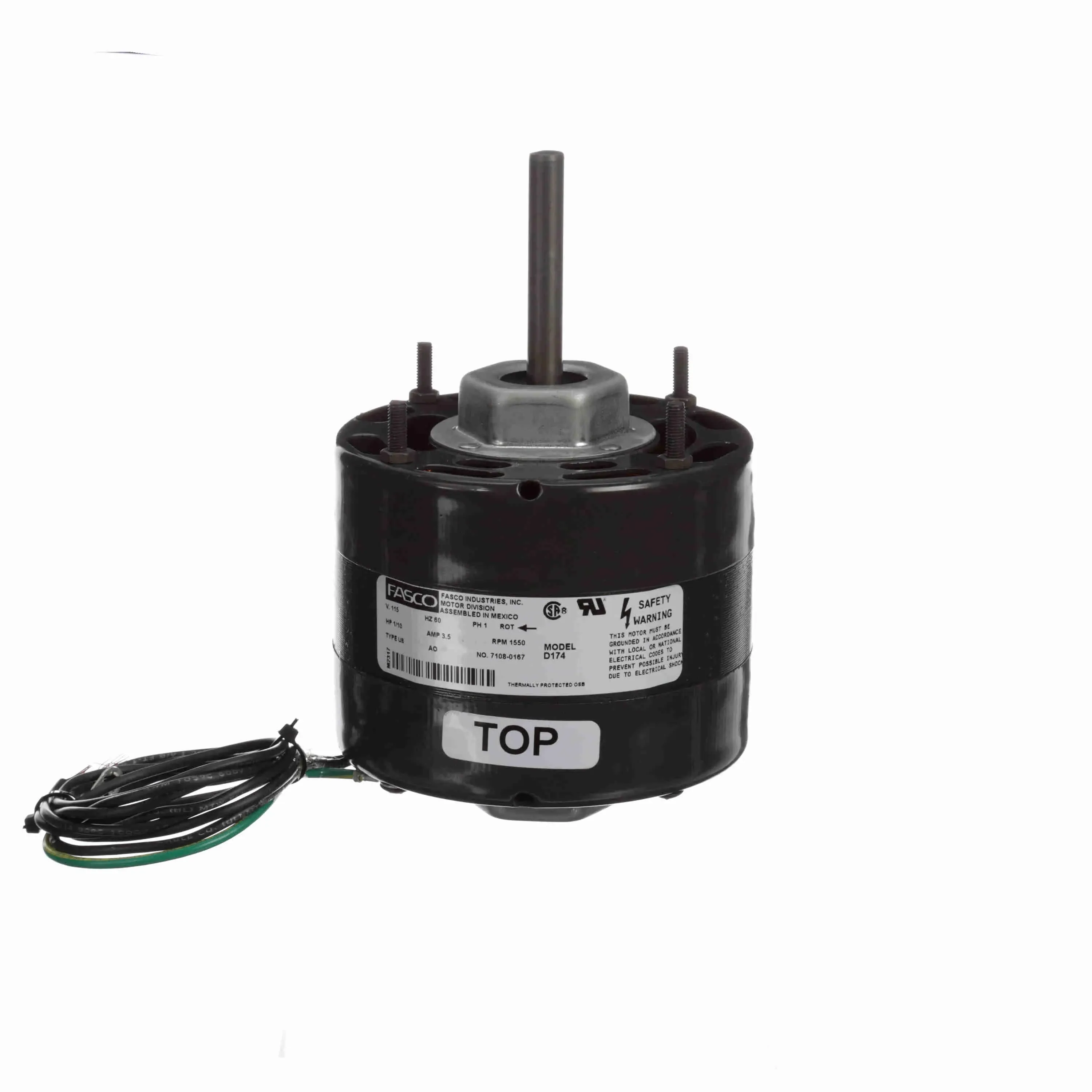

FASCO D174 Fan and Blower Motor, 1/10 HP, 1 Phase, 60 Hz, 115 V, 1500 RPM, 1 Speed, 4.4 Inch Diameter
Item: CP4XMTModel: D174Cross Ref: 241X22
7 In Stock
Ships within 2 days via
10.00% off
€453.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 3.5A |
| Ce | N |
| Csa | Y |
| Current | 3.5A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure | Open Air Over |
| Frame | 4.4 |
| Frequency | 60 Hz |
| Insulation Class | Class A |
| Length | 6.99" |
| Motor Enclosure Design | OAO |
| Motor Shaft Rotation | CWSE |
| Mounting | Extended Studs |
| Mounting Type | Extended Studs |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/10 hp |
| Output Kw | 0.07 kW |
| Overall Length | 6.99" |
| Phase | 1 |
| Poles | 4 |
| Rotation | Clockwise Shaft End |
| Rpm | 1500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.375" |
| Shaft Diameter | 0.375" |
| Shaft Extension | 2.9" |
| Shaft Extension Size | 2.9" |
| Shaft Type | Flat |
| Speed | 1500 RPM |
| Starting Method | Across The Line |
| Ul | Recognized |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 11.13 |
| Country of Origin | MX |
