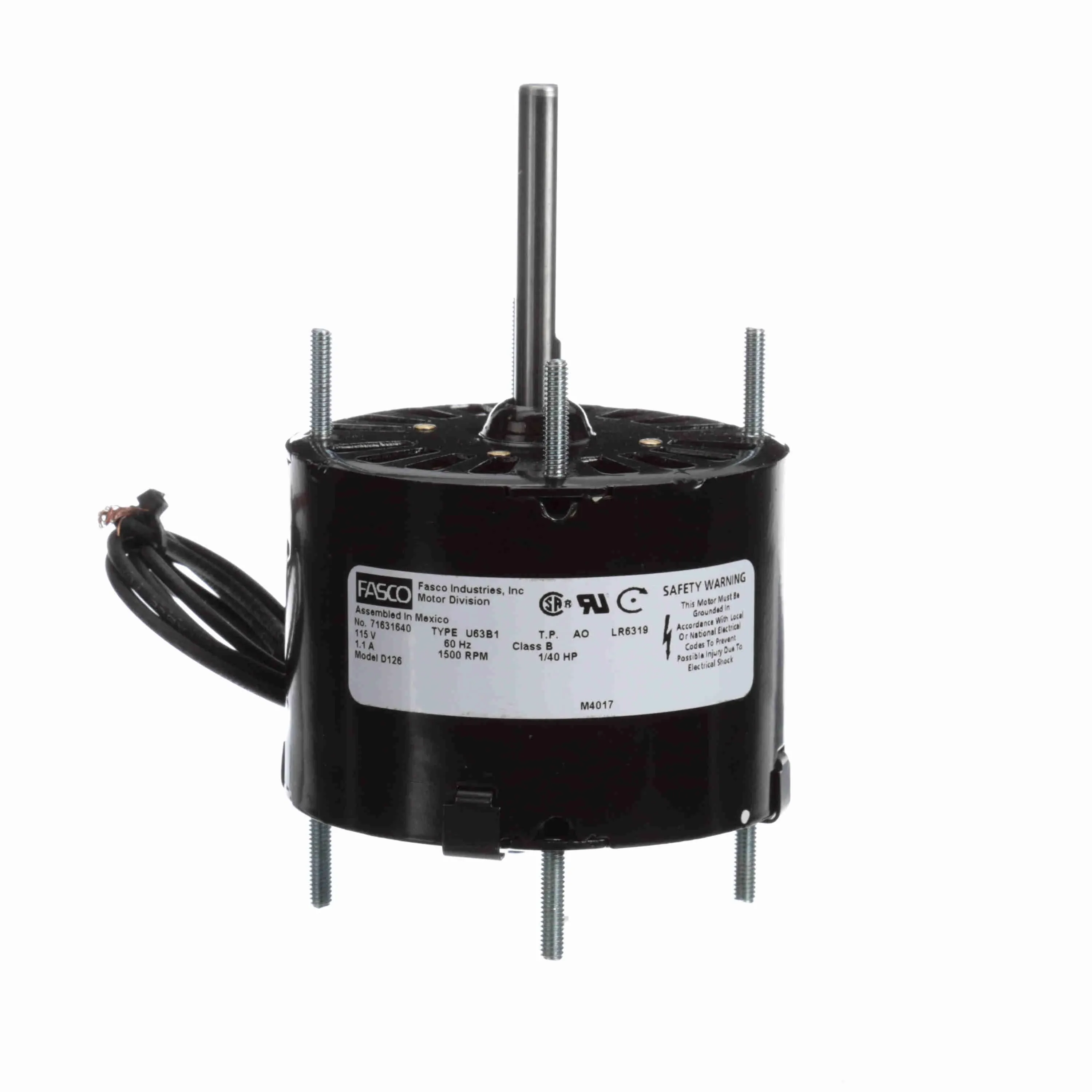

FASCO D126 Fan and Blower Motor, 1/40 HP, 1 Phase, 60 Hz, 115 V, 1500 RPM, 1 Speed, 3.3 Inch Diameter
Item: CJ2WDGModel: D126Cross Ref: 161M06
7 In Stock
Ships within 2 days via
10.00% off
€172.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 1.1A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Fits Brand | Fasco |
| For Use With Mfr. Model Number | 50755-D500 |
| Frame | 3.3 |
| Frame Length | 2.24" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Insulation Class | Class B |
| Length | 5.08" |
| Motor Enclosure Design | OAO |
| Motor Shaft Rotation | CWSE |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1500 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Oem Replacement Brand | Fasco |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/40 hp |
| Output Kw | 0.02 kW |
| Phase | 1 |
| Rpm | 1500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 2.3" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
