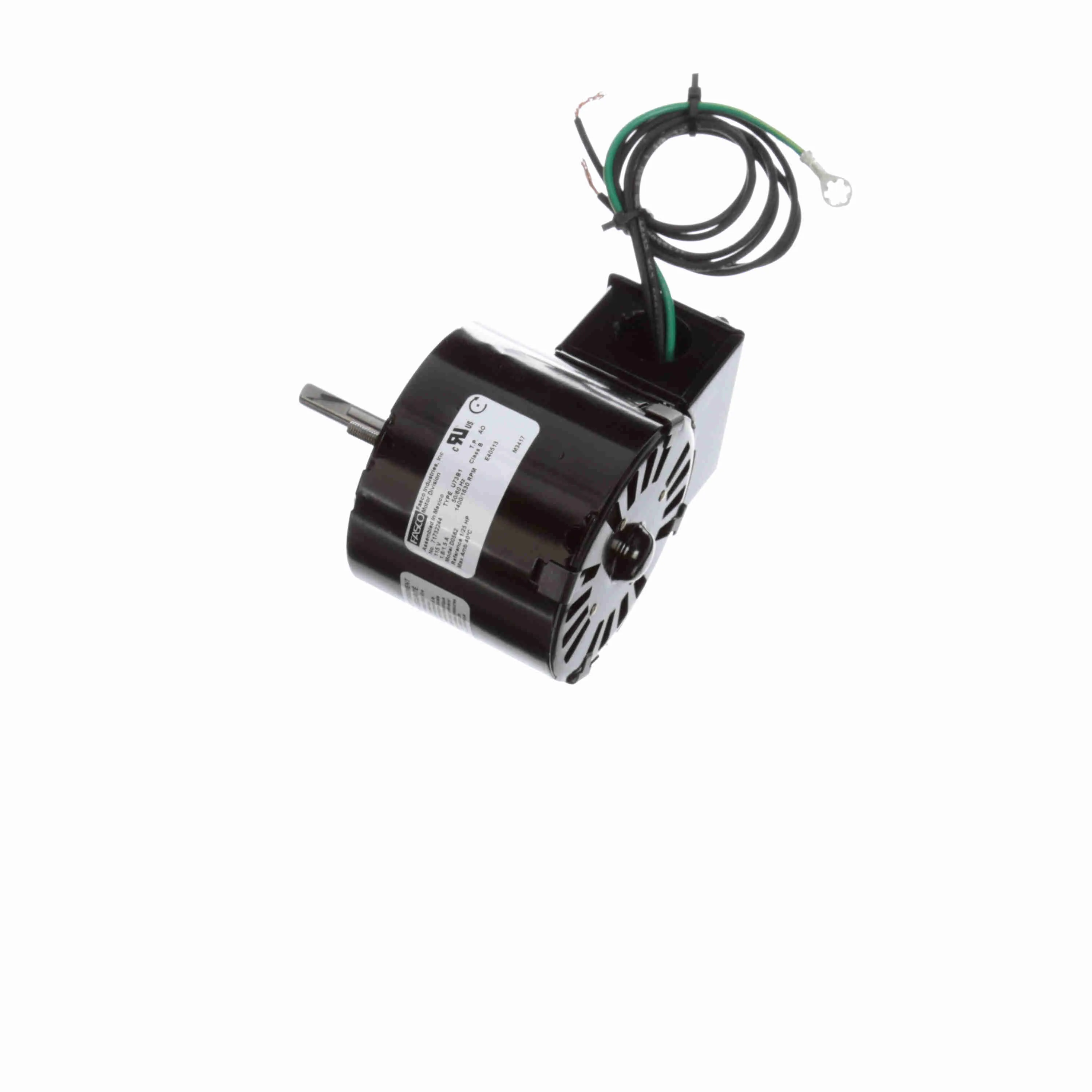

FASCO D0562 Ventilation Motor, 1/25 HP, 1 Phase, 115 V, 1400/1630 RPM, 1 Speed, 3.3 Inch Diameter
Item: CH9XBYModel: D0562Cross Ref: 48GM99
7 In Stock
Ships within 2 days via
10.00% off
€184.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ventilation Motor |
| Ambient Temp. | 40°C |
| Amps | 1.8/1.5A |
| Bearing Type | Sleeve |
| Body Dia. | 3.4" |
| Bolt Circle Dia. | 2 13/16" |
| Capacitor Required | No |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Dia. | 3 2/5" |
| Diameter | 3 2/5" |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure Type | Open Air Over |
| Frame | 3.3 |
| Frame Length | 2.79" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.8/1.5A |
| Hp | 1/25 hp |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length | 4.7" |
| Length Less Shaft | 2 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWSE |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Shaded Pole |
| Mounting Stud Length | 3/8" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1630 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Fasco |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/25 hp |
| Output Kw | 0.03 kW |
| Overall Length | 4 11/16" |
| Phase | 1 |
| Replacement For | B45227 |
| Rpm | 1400/1630 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 1.6" |
| Shaft Length | 1 9/16" |
| Shaft Type | Flat |
| Standards | Ul Recognized |
| Starting Method | Across The Line |
| Stud Length | 3/8" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Weight | 4 lbs. |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 11.43 |
| Country of Origin | MX |
